311 - REAR ENTRY CAB ELECTRICAL BOX (SN -200130)

Запчасти John Deere 7C ZTS 311 - REAR ENTRY CAB ELECTRICAL BOX (SN -200130) 1674C REAR ENTRY CAB WIRING HARNESS AND SWITCHES

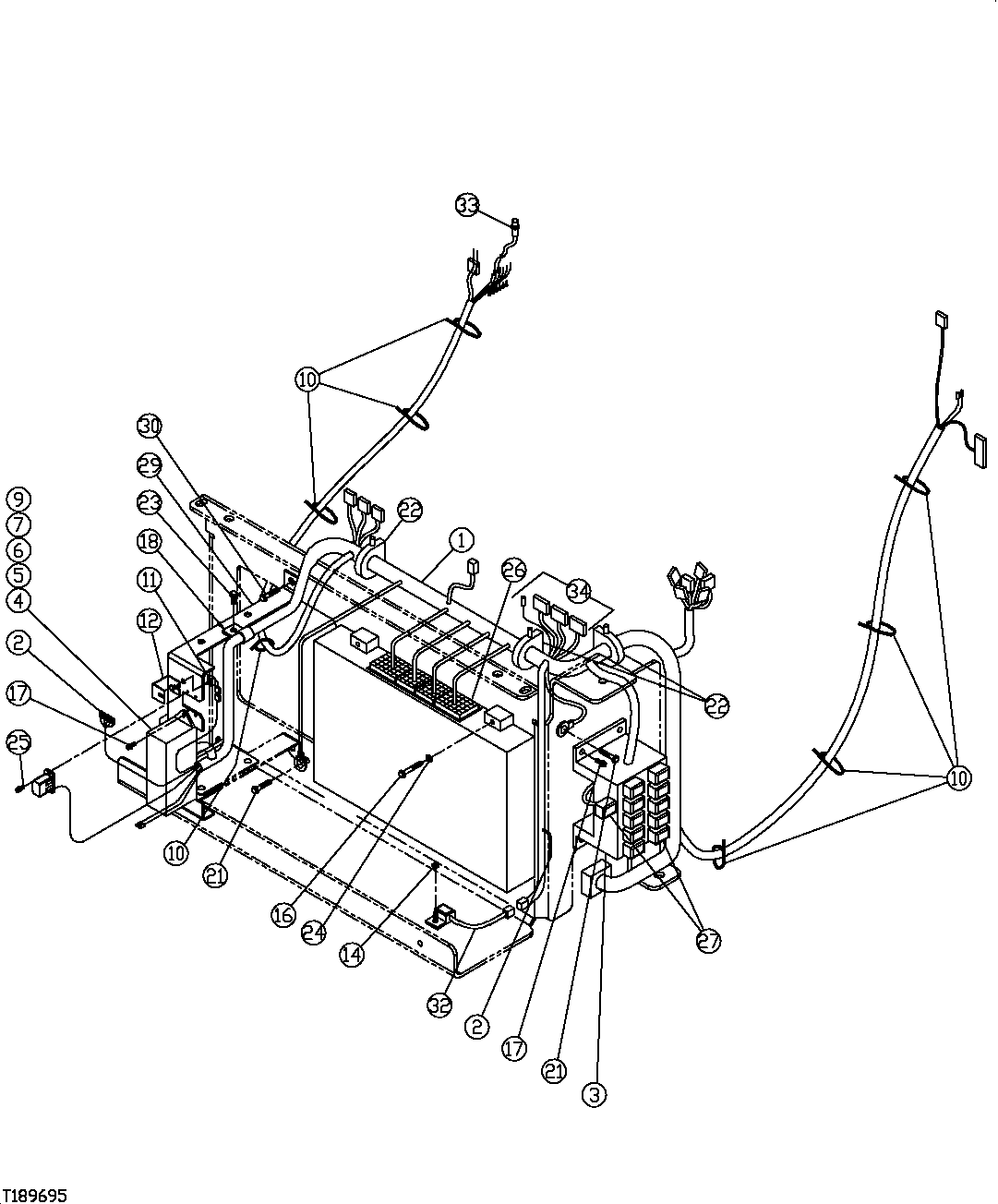

Схема запчастей John Deere 7C ZTS - 311 - REAR ENTRY CAB ELECTRICAL BOX (SN -200130) 1674C REAR ENTRY CAB WIRING HARNESS AND SWITCHES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0004616

Wiring Harness

(SUB FOR FFSB112257)

1шт.

0004069

Wiring Harness

1шт.

2

4456778

Diode

(SUB FOR FFSB112232)

6шт.

3

4427429

Circuit Box

(SUB FOR FFSB112233)

1шт.

4

57M7688

Fuse

(SUB FOR FFSB112234 OR 4428910)

8шт.

5

57M7689

Fuse

(SUB FOR FFSB110740 OR 4428911)

8шт.

6

57M7691

Fuse

(SUB FOR FFSB110741 OR 4436736)

4шт.

7

4456735

Fuse Holder

(SUB FOR FFSB112235)

1шт.

4460037

Fuse Box

1шт.

9

4468530

Cover

(SUB FOR FFSB112258)

1шт.

10

H77698

Tie Band

(SUB FOR FFSB108110)

8шт.

11

4359384

Switch

(SUB FOR FFSB107881)

1шт.

12

4367375

Bracket

(SUB FOR FFSB107880)

1шт.

14

14M7272

Nut

M6 (SUB FOR FFSB107927)

1шт.

16

21M7466

Screw

M6 X 30 (SUB FOR M430630)

4шт.

17

21M7267

Screw

M6 X 20 (SUB FOR FFSB112244)

6шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.

12M7006

Lock Washer

6 mm (SUB FOR FFSB112244)

6шт.

18

AT119290

Hose Clamp

(SUB FOR FFSB105440)

1шт.

19

F053301

Holder

( FFSB102835 NLA)

1шт.

21

19M7162

Cap Screw

M8 X 16 (SUB FOR FFSB107125)

2шт.

12M7065

Lock Washer

8 mm (SUB FOR FFSB107125)

2шт.

24H1136

Washer

11/32" X 11/16" X 0.06 5" (SUB FOR FFSB107125)

2шт.

22

4449019

Clip

(SUB FOR FFSB112247)

3шт.

23

19M7938

Cap Screw

M10 X 20 (SUB FOR FFSB107124)

2шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107124)

2шт.

24

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

4шт.

25

Screw

(SUB FOR FFSB105518)( J460310 NLA)

4шт.

21M7394

Screw

M3 X 10

4шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

4шт.

12H233

Lock Washer

1/8"

4шт.

26

9227385

Vehicle Controller

(SUB FOR FFSB112260 OR 4463456)

1шт.

9226761

Relay

(SUB FOR FFSB113341)

1шт.

9226763

Vehicle Controller

1шт.

27

4436534

Relay

(SUB FOR FFSB112249)

11шт.

29

7039389

Bracket

(SUB FOR FFSB112211)

1шт.

30

19M7881

Screw

M8 X 20 (SUB FOR FFSB112212)

2шт.

12M7065

Lock Washer

8 mm (SUB FOR FFSB112212)

2шт.

32

AT195741

Relay

(WITH RELAY, ALTERNATOR) , (SUB FOR FFSB112261)

1шт.

33

4384758

Switch

Travel Alarm (SUB FOR FFSB108211)

1шт.

34

FFSB113087

Cab Wiring Harness

1шт.

Выбрано товаров: 41
