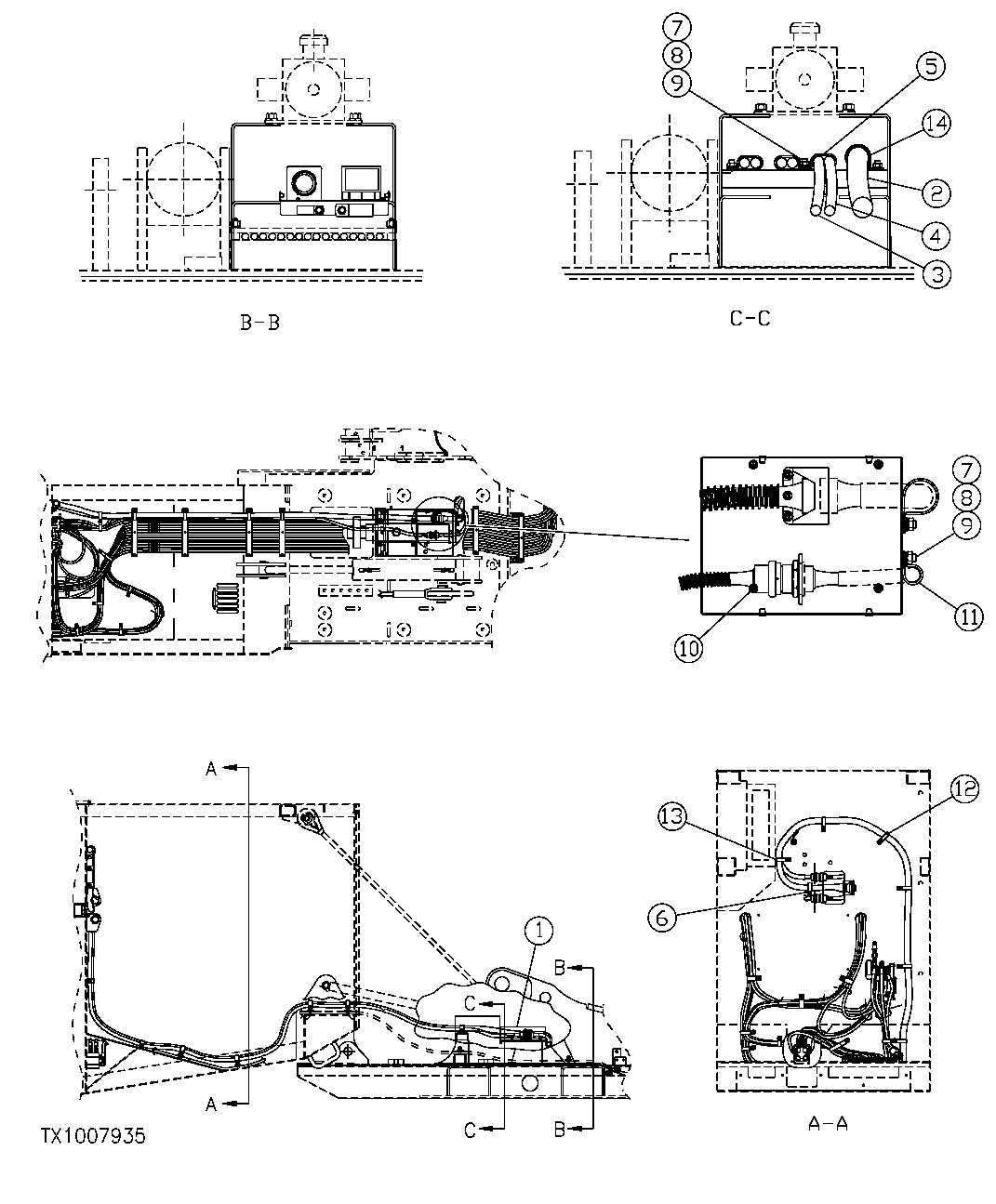

Запчасти John Deere 7C ZTS 308 - REAR ENTRY CAB WIRING HARNESS EXTENSION FOR VALVE IN HEAD PLUMBING (WITH 48 AND 72 INCH RISER) 1674C REAR ENTRY CAB WIRING HARNESS AND SWITCHES

1

Circuit Box

( FFSB110691 NLA)

1шт.

2

FFSB110164

Wiring Harness

Engine

1шт.

3

FFSB110165

Wiring Harness

Upperstructure

1шт.

4

FFSB103742

Wiring Harness

Control, Valve in Head Front Riser

1шт.

5

FFSB102828

Clip

1шт.

6

FFSB110137

Clamp

9шт.

7

14M7274

Nut

M10 (SUB FOR FFSB107411)

16шт.

8

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

16шт.

9

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

16шт.

10

21M7265

Screw

M5 X 12 (SUB FOR FFSB107789)

9шт.

11

XCL-17

Hose Clamp

(SUB FOR FFSB105439)

2шт.

12

F026126

Hose Support

(SUB FOR FFSB105404)

2шт.

13

T118385

Clamp

(SUB FOR FFSB105441)

1шт.

14

F010967

Hose Support

(SUB FOR FFSB104269)

2шт.
