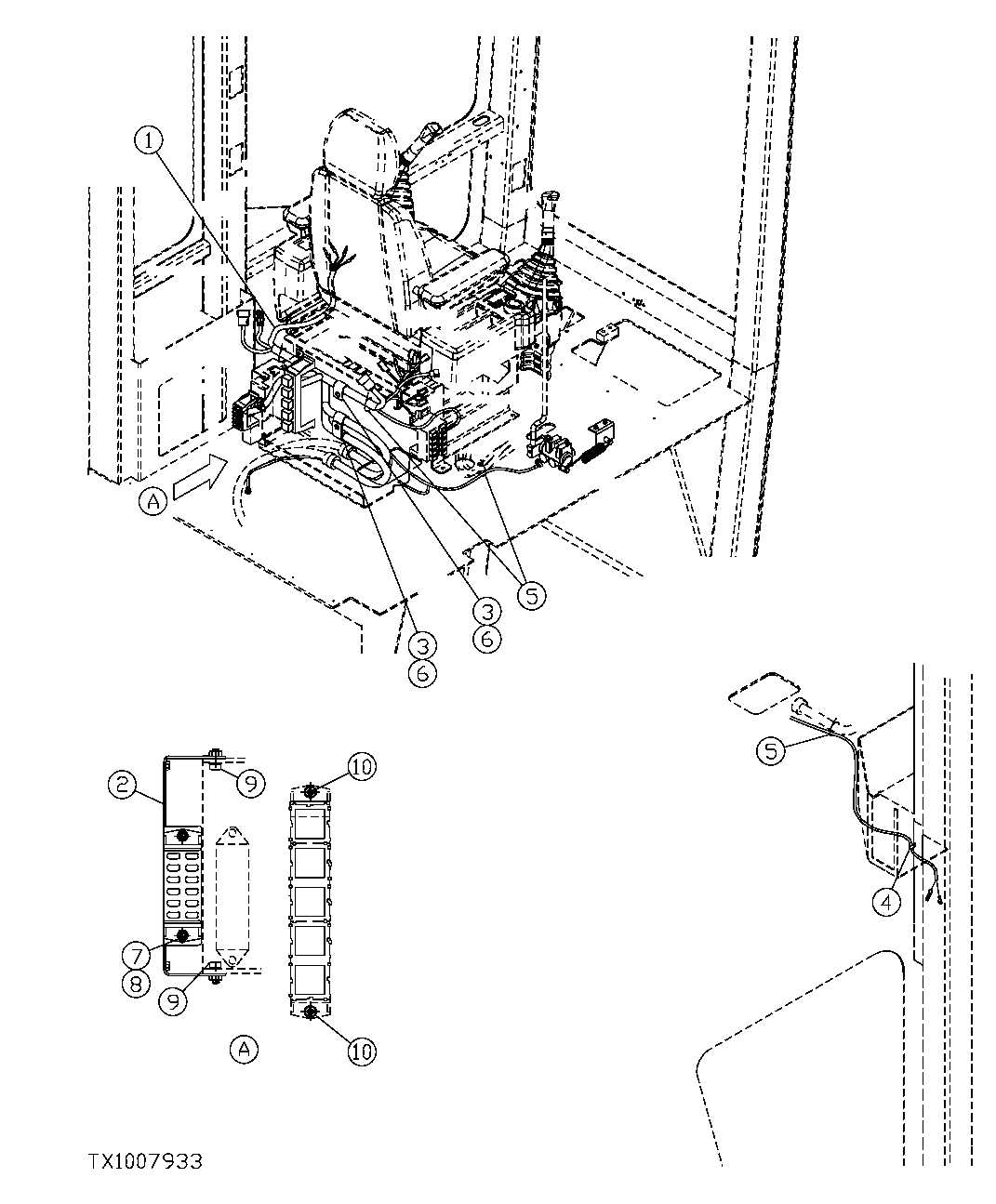

Запчасти John Deere 7C ZTS 306 - REAR ENTRY CAB MAIN WIRING HARNESS AND MOUNTING 1674C REAR ENTRY CAB WIRING HARNESS AND SWITCHES

1

FFSB109948

Wiring Harness

1шт.

2

FFSB110207

Fuse Box

1шт.

3

AT119290

Hose Clamp

(SUB FOR FFSB105440)

3шт.

4

H75541

Clamp

(SUB FOR FFSB105452)

1шт.

5

H77698

Tie Band

(SUB FOR FFSB108110)

4шт.

6

19M7938

Cap Screw

M10 X 20 (SUB FOR FFSB107124)

2шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107124)

2шт.

7

24M7348

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB107713)

2шт.

8

21M7271

Screw

M5 X 16 (SUB FOR FFSB108268)

2шт.

9

19M8425

Cap Screw

M6 X 16 (SUB FOR FFSB107905)

4шт.

10

19M8425

Cap Screw

M6 X 16 (SUB FOR FFSB107135)

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm (SUB FOR FFSB107135)

2шт.

12M7006

Lock Washer

6 mm (SUB FOR FFSB107135)

2шт.
