Запчасти John Deere 7C ZTS 295 - SIDE ENTRY CAB WIRING HARNESS FOR VALVE IN HEAD PLUMBING 1674B SIDE ENTRY CAB WIRING HARNESS AND SWITCHES

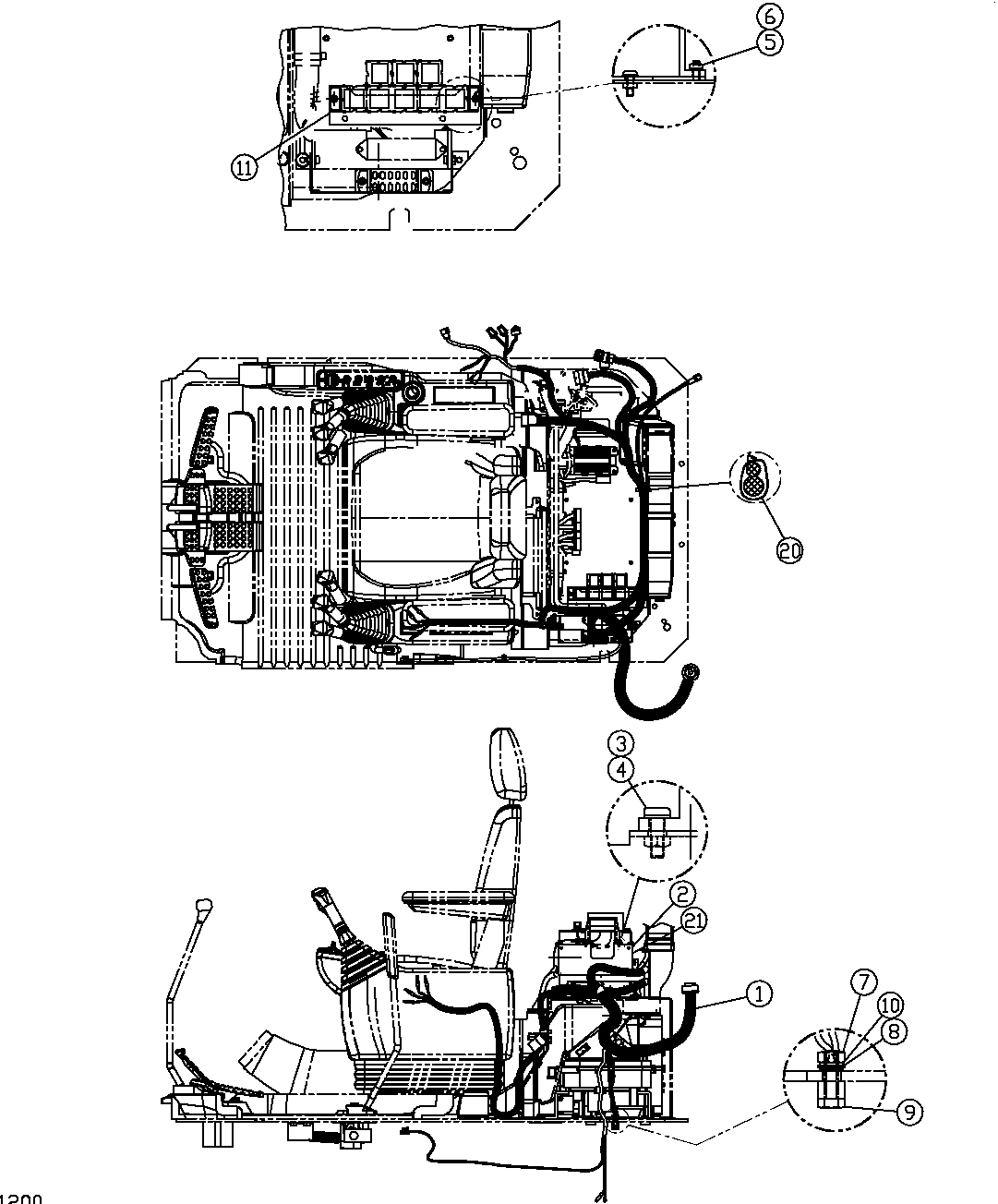

Схема запчастей John Deere 7C ZTS - 295 - SIDE ENTRY CAB WIRING HARNESS FOR VALVE IN HEAD PLUMBING 1674B SIDE ENTRY CAB WIRING HARNESS AND SWITCHES

Артикул

Название

Примечание

Количество

1

FFSB110056

Wiring Harness

1шт.

2

19M7923

Cap Screw

M6 X 12 (SUB FOR FFSB107905)

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

3

24M7348

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB107713)

2шт.

4

21M7271

Screw

M5 X 16 (SUB FOR FFSB108268)

2шт.

5

14M7297

Nut

M5 (SUB FOR FFSB105284)

2шт.

6

24M7348

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB107713)

2шт.

7

14M7274

Nut

M10 (SUB FOR FFSB107411)

1шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

1шт.

9

19M7382

Cap Screw

M10 X 40 (SUB FOR FFSB109189)

1шт.

10

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

1шт.

11

FFSB110287

Elec. Connector Terminal

1шт.

20

R44302

Tie Band

(SUB FOR FFSB108110)

1шт.

21

FFSB110207

Fuse Box

1шт.

Выбрано товаров: 15
