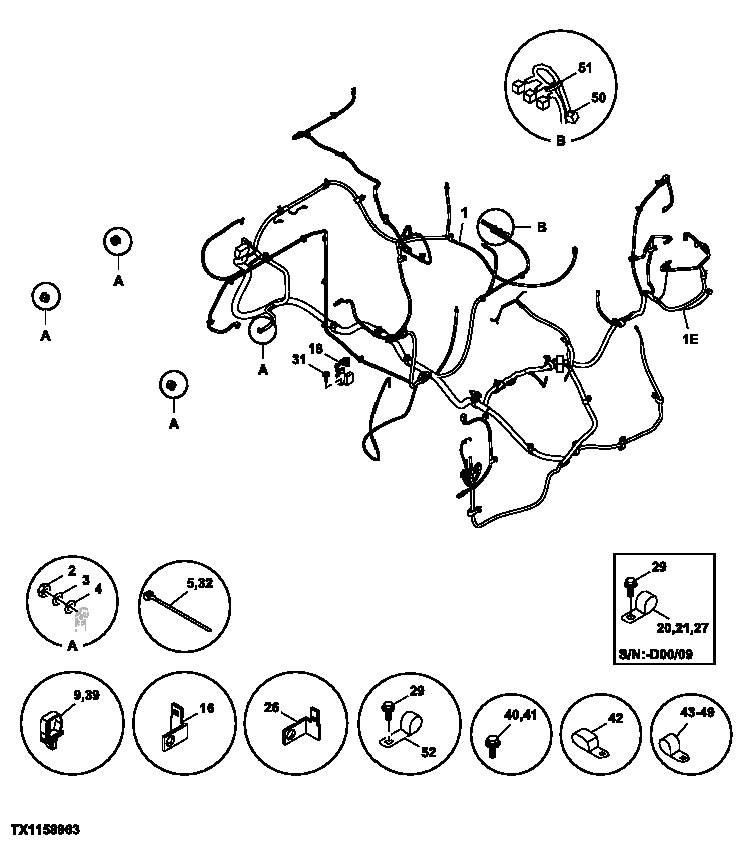

Запчасти John Deere 7C ZTS 282 - VEHICLE MAIN WIRING HARNESS 1674 WIRING HARNESS & SWITCHES

1

Wiring Harness

( 0004091 NLA) (ORDER (1) 0004912 AND (1) 4487830 (ORDER 0004912 AND 4487830 (SEE DT AC SOLUTION FOR REPAIR KIT AND CONNECTORS))

1шт.

4487830

Wiring Harness

Ground To Frame, Connect To Engine Oil Level Sensor On Machine Harness (SEE DTA C SOLUTION FOR REPAIR KIT AND CONNECTORS )

1шт.

0004912

Wiring Harness

(SEE DTAC SOLUTION FOR R EPAIR KIT AND CONNECTORS)

1шт.

1A

4270554

Fuse

(SUB FOR (1) AT160982) (SUB FOR AT16 0982)(FUSIBLE LINK - 40 AMP - GREEN)

2шт.

1B

4287670

Fuse

(SUB FOR (1) AT200499 (SUB FOR AT200 499)(FUSIBLE LINK - 60 AMP - YELLOW)

1шт.

1C

4315323

Fuse

(SUB FOR (1) AT172435) (SUB FOR AT172435)(FUSIBLE LINK - 45 AMP)

1шт.

1D

4315324

Link

(SUB FOR (1) AT172436) (SUB FOR AT172436)(FUSIBLE LINK - 75 AMP)

1шт.

1E

4460140

Wiring Harness

Pump Wiring Harness Ca n Be Ordered Separately

1шт.

2

14M7274

Nut

M10

4шт.

3

12M7066

Lock Washer

10 mm

4шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

5

H77698

Tie Band

(SUB FOR M88199)

13шт.

6

4449250

Clip

(SUB FOR TH4449250)

2шт.

11

H77698

Tie Band

(SUB FOR THDH400240)

1шт.

16

4257159

Bracket

(SUB FOR AT154243)

1шт.

26

4418301

Bracket

(SUB FOR TH4418301)

1шт.

29

12M7006

Lock Washer

6 mm

3шт.

19M8425

Cap Screw

M6 X 16 (SUB FOR 19M7560)

3шт.

31

19M7932

Cap Screw

M8 X 16

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

39

4449250

Clip

(SUB FOR TH4449250)

7шт.

40

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

41

19M7938

Cap Screw

M10 X 20

25шт.

12M7066

Lock Washer

10 mm

25шт.

42

T32854

Clamp

4шт.

43

4190261

Clip

(SUB FOR TH109649)

5шт.

44

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

7шт.

45

4190275

Clamp

(SUB FOR TH108598)

1шт.

46

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

1шт.

49

AT121321

Hose Clamp

5шт.

52

T78787

Clamp

(SUB FOR TH4450494 ) (SUB FOR 4450494)

3шт.
