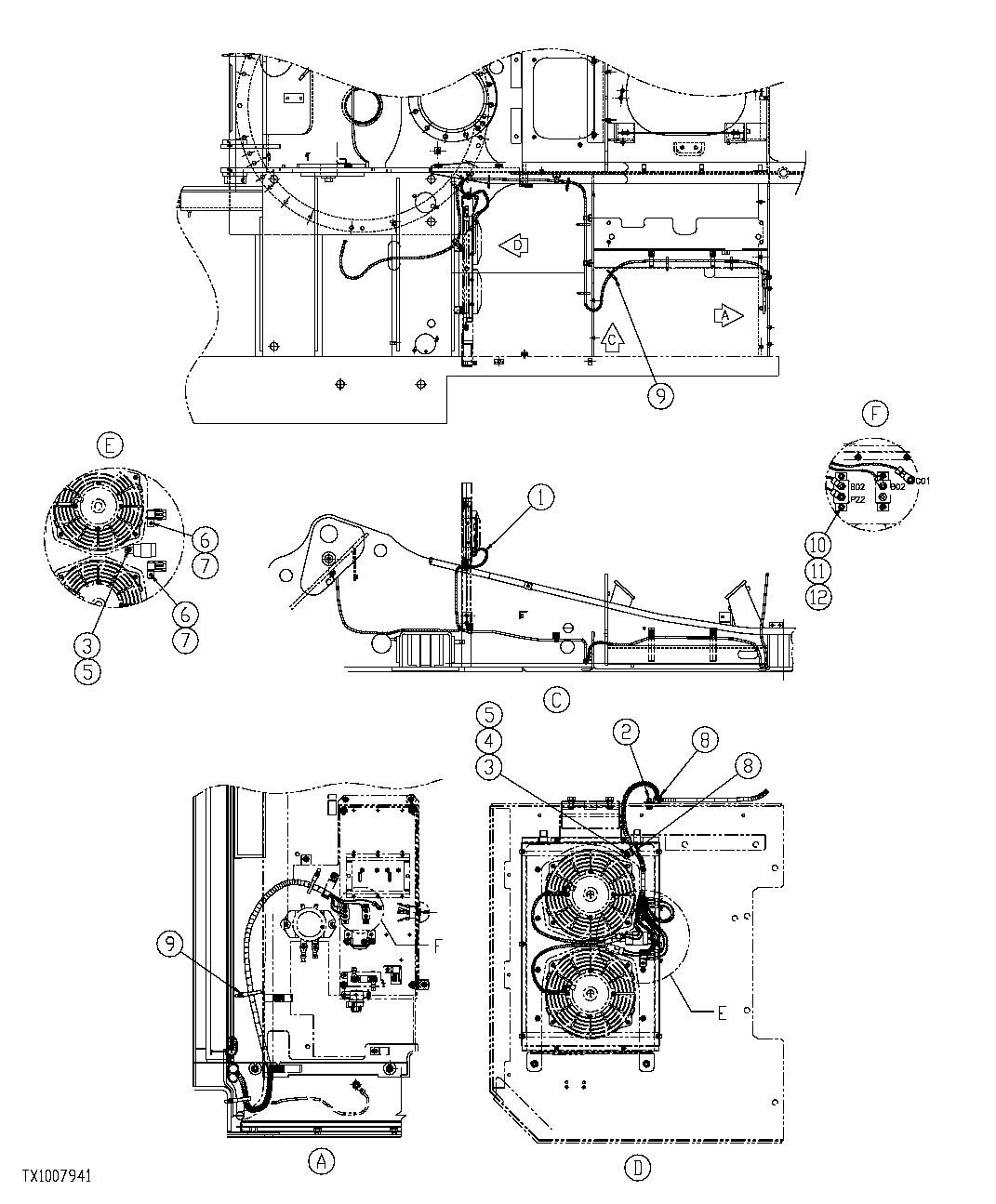

Запчасти John Deere 7C ZTS 281 - AIR CONDITIONER POWERED CONDENSOR FAN WIRING HARNESS 1674 WIRING HARNESS & SWITCHES

1

FFSB112177

Wiring Harness

1шт.

RE505214

Relay Module

24 V, 40 AMP, (SUB FOR FFSB112194)

1шт.

57M7121

Fuse

(SUB FOR FFSB105369)

2шт.

2

19M7162

Cap Screw

M8 X 16 (SUB FOR FFSB107144 OR 4372222)

1шт.

24M7036

Washer

9 X 16 X 1.600 mm

1шт.

12M7065

Lock Washer

8 mm

1шт.

3

14M7272

Nut

M6 (SUB FOR FFSB107184)

2шт.

4

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

1шт.

5

12M7006

Lock Washer

6 mm (SUB FOR FFSB107439)

2шт.

6

12M7064

Lock Washer

5 mm (SUB FOR FFSB107801)

2шт.

7

14M7297

Nut

M5 (SUB FOR FFSB105284)

2шт.

8

H75541

Clamp

(SUB FOR FFSB105438)

2шт.

9

H77698

Tie Band

(SUB FOR FFSB108110)

10шт.

10

AT41394

Circuit Breaker

(SUB FOR FFSB112352)

1шт.

11

12M7112

Lock Washer

5.300 mm (SUB FOR FFSB110194)

2шт.

12

FFSB110195

Bolt

2шт.
