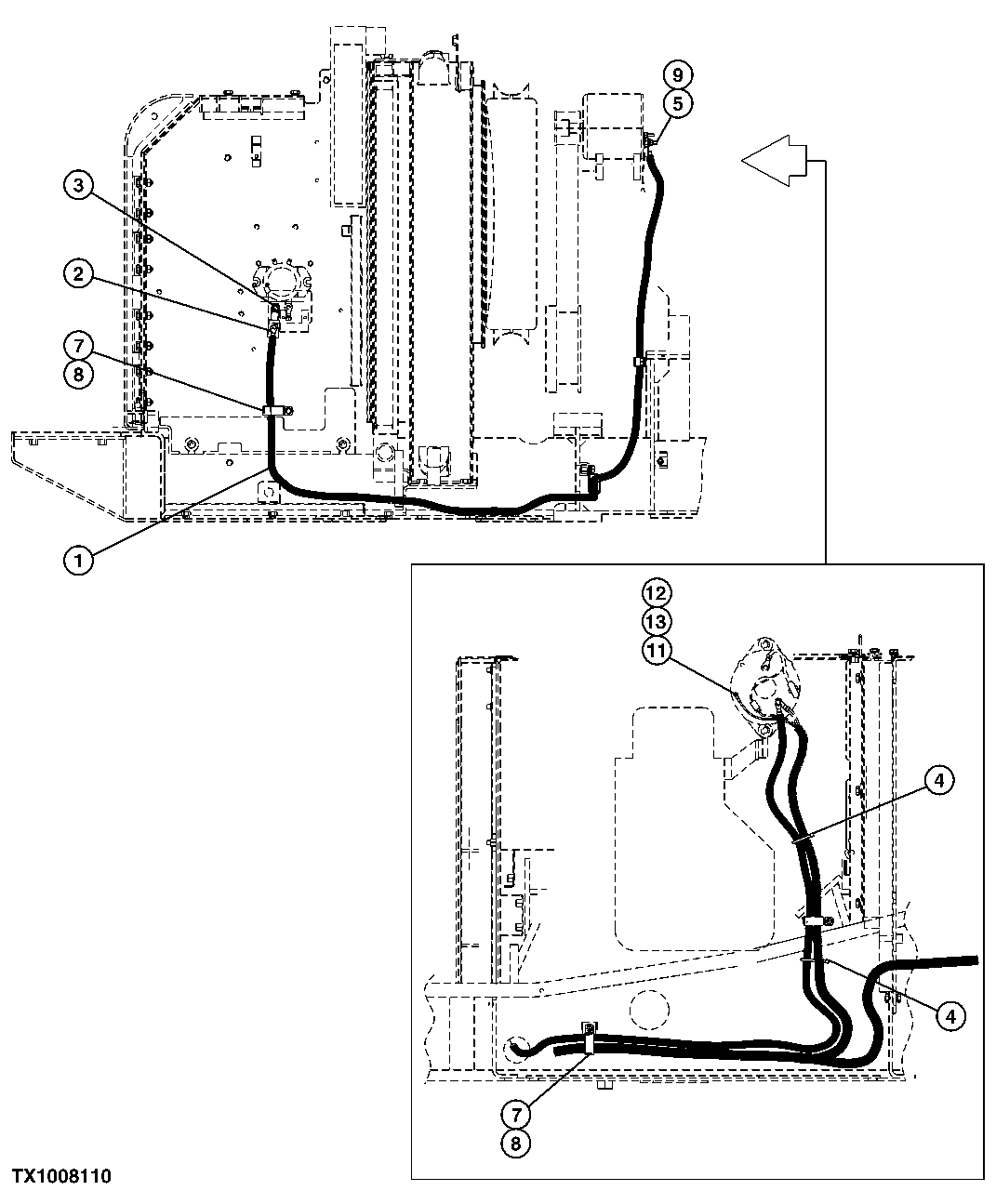

Запчасти John Deere 7C ZTS 255 - 100 AMP ALTERNATOR CHARGE LEAD HARNESS (SN 200131- ) 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM

1

FFSB114254

Wiring Harness

1шт.

2

4283562

Fuse

(SUB FOR FFSB103920)

1шт.

3

19M7932

Cap Screw

M8 X 16 (SUB FOR FFSB107133)

1шт.

4

R44302

Tie Band

(SUB FOR FFSB108110)

2шт.

5

14M7273

Nut

M8 (SUB FOR FFSB108151)

1шт.

7

FFSB102828

Clip

2шт.

8

19M7938

Cap Screw

M10 X 20 (SUB FOR FFS105283)

2шт.

9

12M7065

Lock Washer

8 mm (SUB FOR FFSB103370)

1шт.

11

12M7006

Lock Washer

6 mm (SUB FOR FFSB107439)

1шт.

12

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

1шт.

13

24M7272

Shim

(SUB FOR FFSB107184)

1шт.
