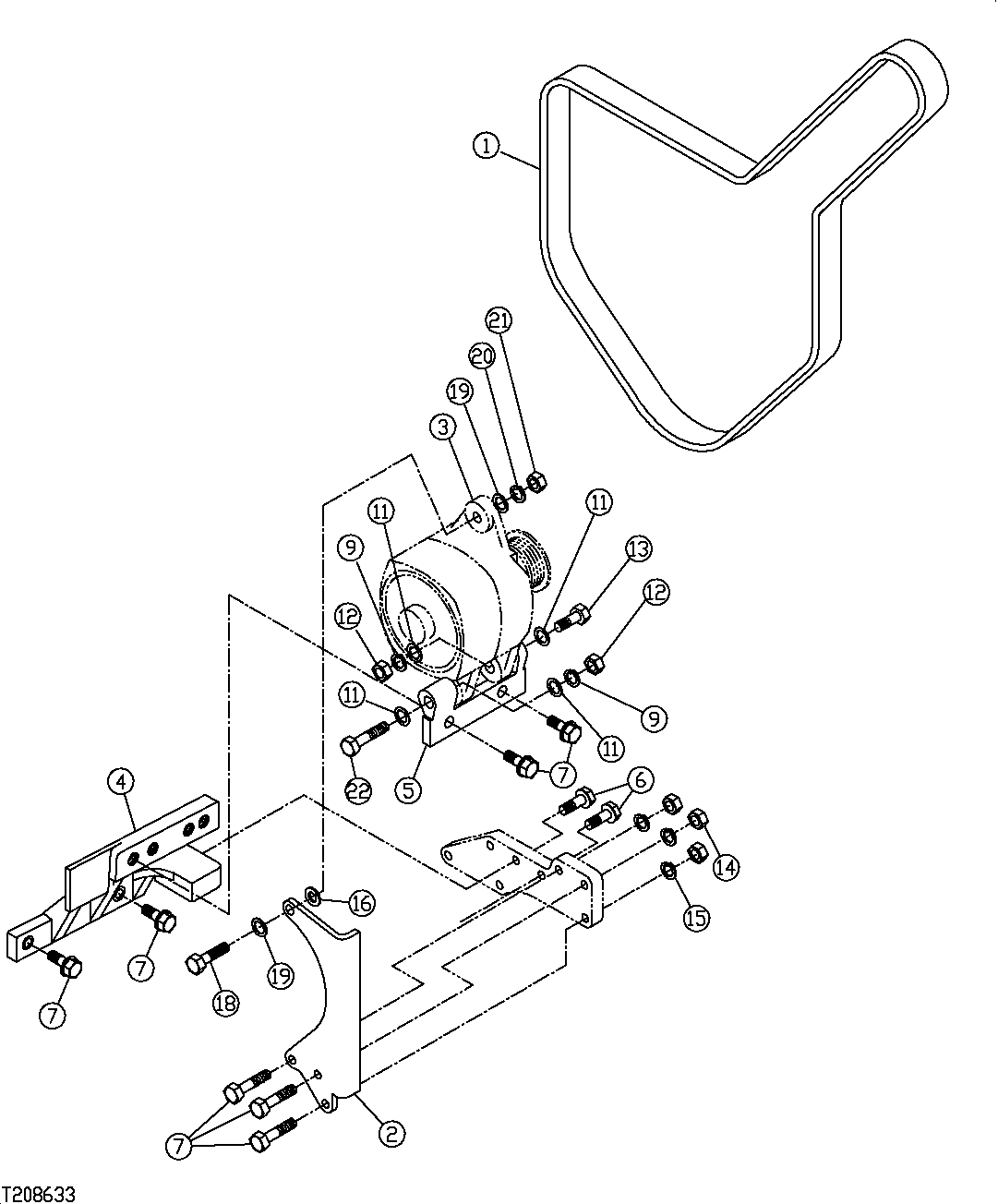

Запчасти John Deere 7C ZTS 252 - ALTERNATOR (100 AMP) (SN 200131- ) 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM

1

R123442

V-Belt

(SUB FOR FFSB111049)

1шт.

2

FFSB114993

Bracket

(SUB FOR FFSB110734)

1шт.

3

AT300167

Alternator

(SUB FOR FSB114245)(100 AMP)

1шт.

SE501838

Alternator Reman

REMAN FOR AT300167

1шт.

4

R132981

Support

(SUB FOR FFSB109780)

1шт.

5

T179468

Bracket

(SUB FOR FFSB109779 ) (SUB FOR R132980)

1шт.

6

19M7785

Screw

M10 X 25 (SUB FOR FFSB109278)

2шт.

7

19M7786

Screw

M10 X 30 (SUB FOR FFSB109279)

7шт.

9

12H301

Lock Washer

1/2" (SUB FOR FFSB107139)

2шт.

11

24H1111

Washer

17/32" X 1-1/16" X 0.09 0" (SUB FOR FFSB109341)

4шт.

12

14H809

Nut

1/2" (SUB FOR FFSB109315)

2шт.

13

19H2735

Cap Screw

1/2" X 2" (SUB FOR FFSB109264)

1шт.

14

14M7274

Nut

M10 (SUB FOR FFSB107411)

3шт.

15

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

3шт.

16

H35233

Washer

(SUB FOR FFSB111597)

1шт.

18

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

12M7067

Lock Washer

12 mm

1шт.

19M7073

Cap Screw

M12 X 50 (SUB FOR FFSB107149)

1шт.

19

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

2шт.

20

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

1шт.

21

14M7275

Nut

M12 (SUB FOR FFSB107245)

1шт.

22

19H2668

Cap Screw

1/2" X 3-1/2" (SUB FOR FFSB114480)

1шт.
