Запчасти John Deere 7C ZTS 250 - ALTERNATOR (HEAVY DUTY 80 AMP) (SN -200130) 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM

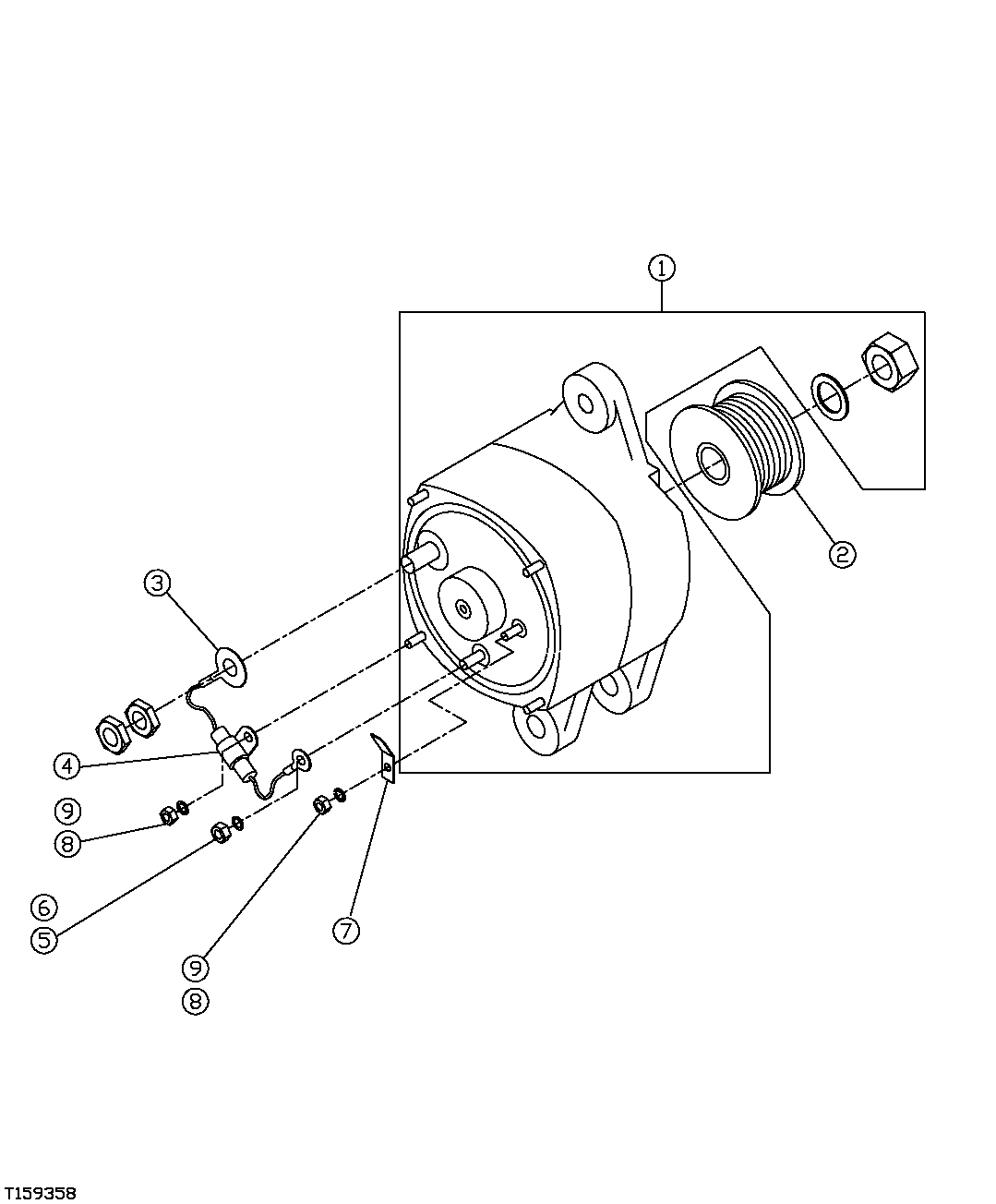

Схема запчастей John Deere 7C ZTS - 250 - ALTERNATOR (HEAVY DUTY 80 AMP) (SN -200130) 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM

Артикул

Название

Примечание

Количество

1

SE501348

Alternator Reman

(REMAN) (ALSO ORDER R128859 ) (SUB FOR AT208541, FFSB112729, FFSB108087, TY6794 OR TY25955)

1шт.

2

R128859

Pulley

(SUB FOR FFSB109715)

1шт.

3

FFSB111426

Wiring Harness

1шт.

4

T190303

Clamp

(SUB FOR FFSB111427)

1шт.

5

14M7100

Nut

M4 (SUB FOR FFSB107187)

1шт.

6

12M7063

Lock Washer

4 mm (SUB FOR FFSB108375)

1шт.

7

FFSB112694

Elec. Connector Terminal

1шт.

8

12M7064

Lock Washer

5 mm (SUB FOR FFSB108156)

2шт.

9

14M7297

Nut

M5 (SUB FOR FFSB105284)

2шт.

10

R504963

V-Belt

Not Illustrated

1шт.

Выбрано товаров: 10
