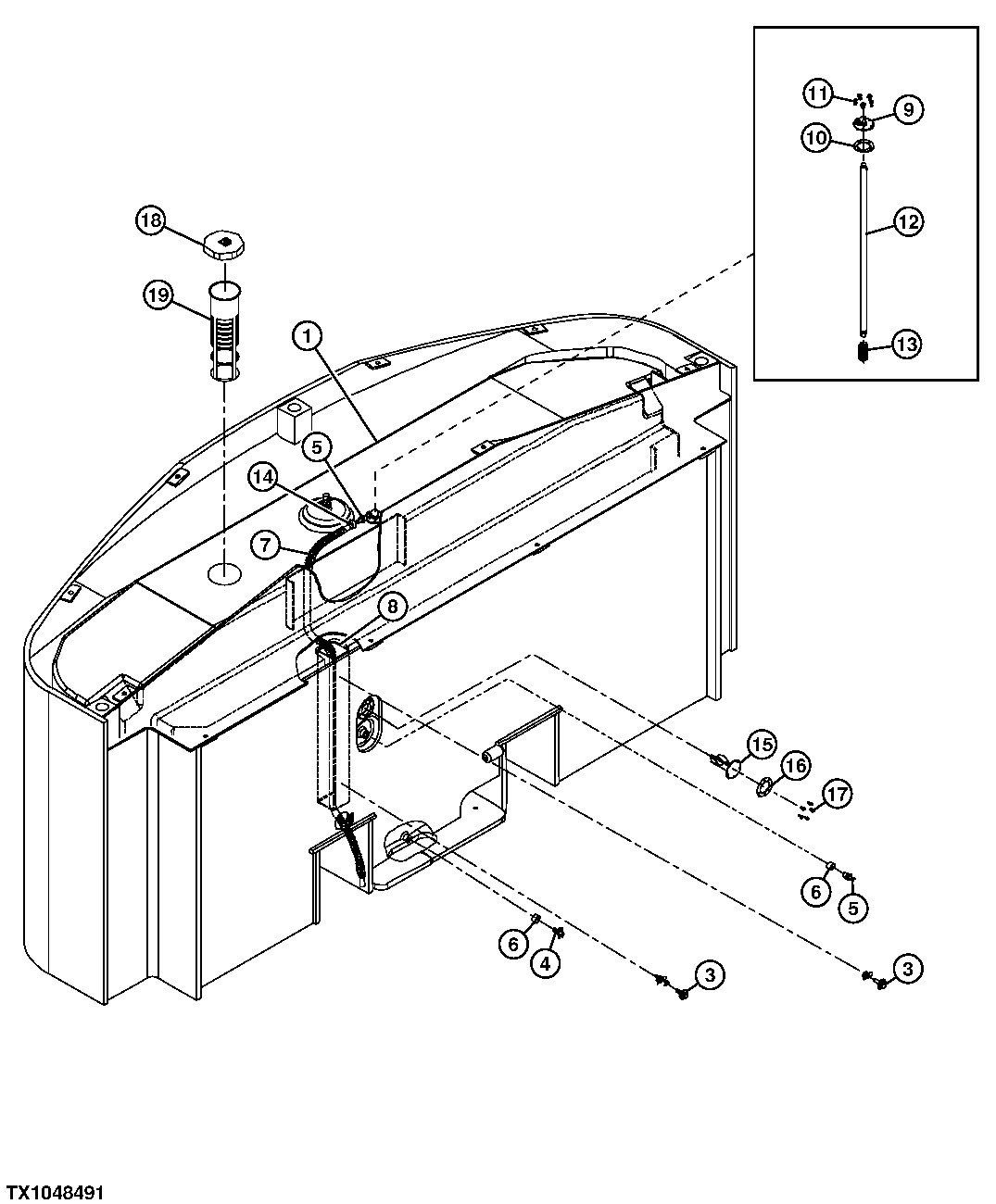

Запчасти John Deere 7C ZTS 233 - FUEL TANK AND FUEL LEVEL SENDER (SERIAL NO. 200117- ) 0564 FUEL TANK

1

FFSB114179

Fuel Tank

1шт.

3

19M7662

Cap Screw

M10 X 30 SUB FOR FFSB109178 OR AT153806

2шт.

12M7067

Lock Washer

12 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

4

AT365267

Pressure Relief Valve

SUB FOR FFSB111681

1шт.

5

R119990

Adapter Fitting

SUB FOR FFSB111657

2шт.

6

FFSB102829

Clamp

2шт.

7

Hose

(MAKE FROM TY22328)( FFSB114187 OR F FSB114234 NLA) (CUT TO LENGTH) 1500MM

1шт.

FFSB112834

Sleeve

(SUB FOR FFSB114235 OR F FSB111661)(1450 MM LGTH)

1шт.

8

FFSB112354

Bracket

1шт.

9

FFSB114132

Adapter Fitting

1шт.

10

T155195

Gasket

SUB FOR FFSB113250

1шт.

11

21M7265

Screw

M5 X 12 SUB FOR FFSB107789

5шт.

12

FFSB114159

Hydraulic Hose

1шт.

13

FFSB114157

Filter Element

1шт.

14

TY22464

Clamp

SUB FOR FFSB103981

1шт.

15

4660782

Float

SUB FOR FFSB109174, FFSB109 396 OR AT154239, OR 4257128

1шт.

16

T155195

Gasket

1шт.

17

21M7265

Screw

M5 X 12

5шт.

18

AT179586

Filler Cap

1шт.

19

AH162914

Strainer

1шт.
