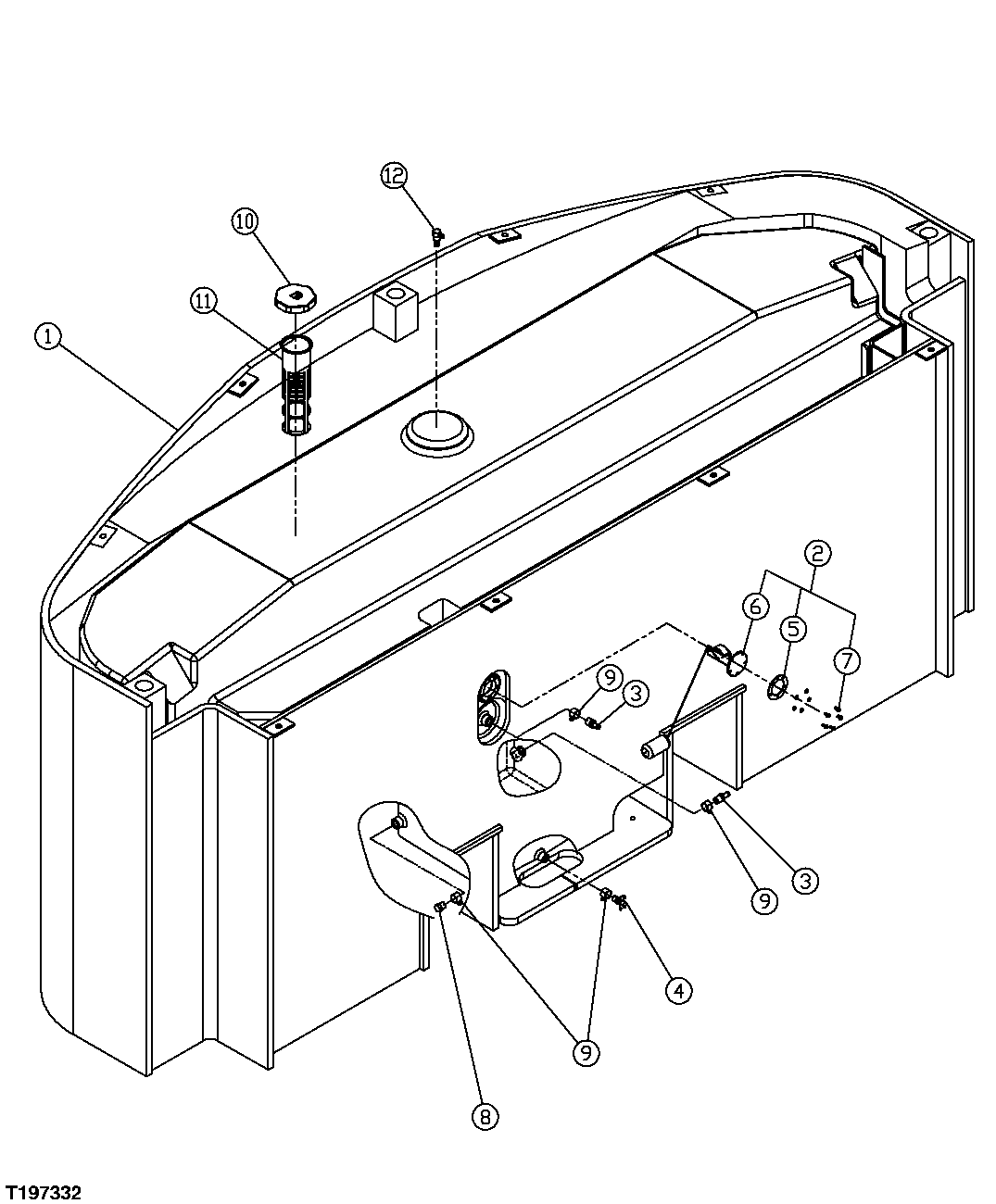

Запчасти John Deere 7C ZTS 232 - FUEL TANK AND FUEL LEVEL SENDER (SERIAL NO. -200116) 0564 FUEL TANK

1

FFSB113476

Fuel Tank

SUB FOR FFSB111210

1шт.

2

Sender

( FFSB109174 NLA)

1шт.

3

R119990

Adapter Fitting

SUB FOR FFSB111657

2шт.

4

AT365267

Pressure Relief Valve

SUB FOR FFSB111681

1шт.

5

T155195

Gasket

SUB FOR FFSB113250

1шт.

6

4660782

Float

SUB FOR FFSB109396 OR AT154239, OR 4257128

1шт.

7

21M7265

Screw

M5 X 12 SUB FOR FFSB107789

5шт.

8

X3/8HP-S

Fitting Plug

SUB FOR FFSB104505

1шт.

9

FFSB102829

Clamp

4шт.

10

AT179586

Filler Cap

1шт.

11

AH162914

Strainer

1шт.

12

AT157938

Vent

1шт.

13

FFSB114138

Plate

Need Only If Using Updated F uel Strainer Not Illustrated

1шт.

14

FFSB114160

Plate

Not Illustrated Need Only If Using Updated Fuel Strainer

1шт.

15

FFSB114162

Adapter Fitting

Need Only If Using Updated F uel Strainer Not Illustrated

1шт.

16

FFSB114161

Screw

Need Only If Using Updated F uel Strainer Not Illustrated

8шт.
