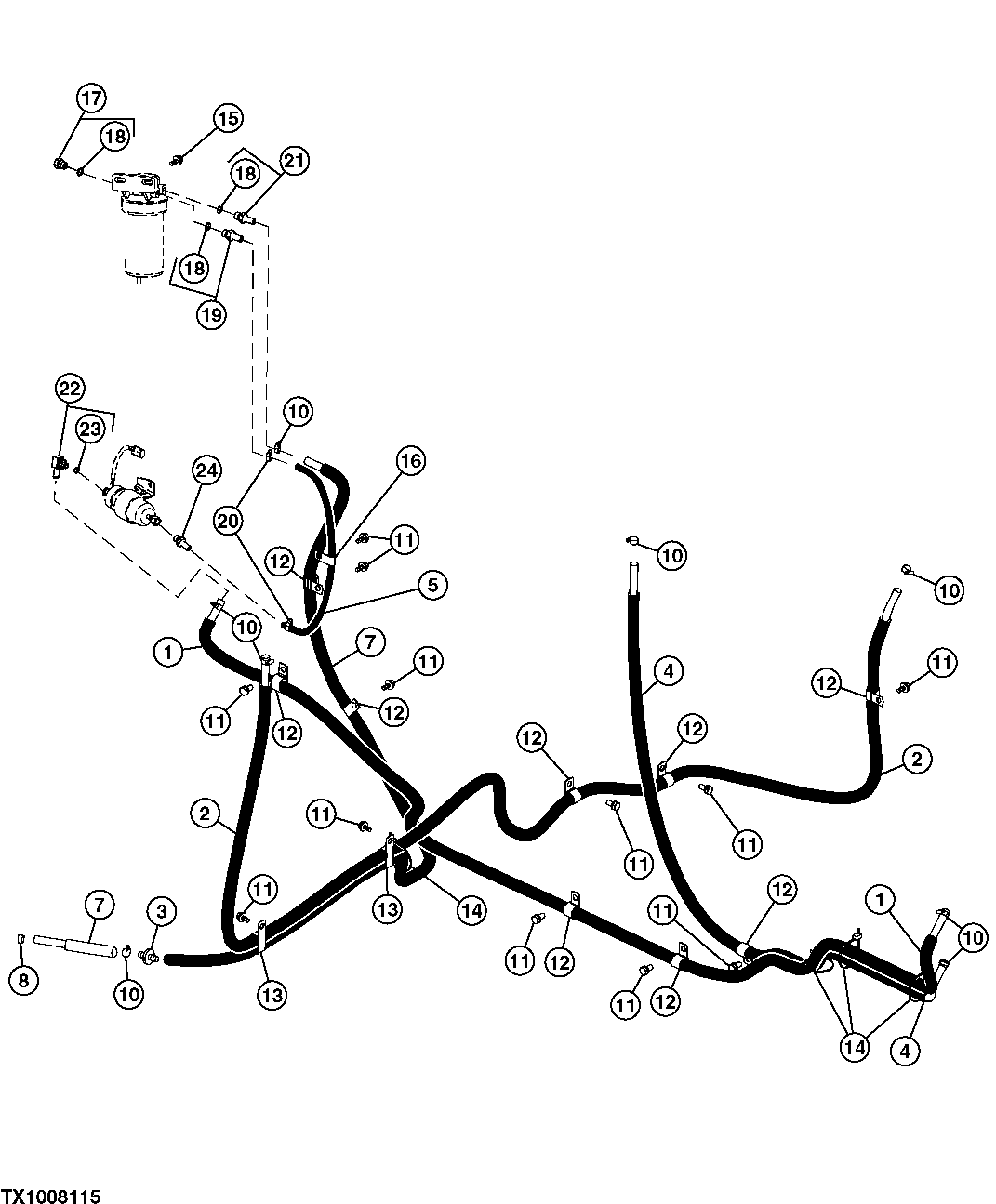

Запчасти John Deere 7C ZTS 230 - FUEL HOSES AND FITTINGS 0563 FUEL LINES AND FITTINGS

1

Bulk Hose

(MAKE FROM TY24398)( THDH900288 NLA) (CUT TO LENGTH) 2900MM (HOSE AND COVER ASSEMBLY)

1шт.

Hose Guard

( DH400467 NLA) (CUT TO LENGT H) 2750MM (MAKE FROM DH400246)

1шт.

2

Bulk Hose

(MAKE FROM TY24398)( THDH900163 NLA) (CUT TO LENGTH) 3350MM (HOSE AND COVER ASSEMBLY)

1шт.

Hose Guard

( DH400248 NLA) (CUT TO LENGT H) 3200MM (MAKE FROM DH400246)

1шт.

3

FFSB114162

Adapter Fitting

1шт.

4

Bulk Hose

(MAKE FROM TY24398)( THDH900289 NLA) (CUT TO LENGTH) 1900MM (HOSE AND COVER ASSEMBLY)

2шт.

Hose Guard

( DH400469 NLA) (CUT TO LENGT H) 1750MM (MAKE FROM DH400246)

1шт.

5

R515462

Fuel Line

1шт.

7

Bulk Hose

(MAKE FROM TY24398)( THDH900287 NLA) (CUT TO LENGTH) 2450MM (HOSE AND COVER ASSEMBLY)

1шт.

Hose Guard

( DH400465 NLA) (CUT TO LENGT H) 2300MM (MAKE FROM DH400246)

1шт.

8

TY22464

Clamp

1шт.

4200176

Grommet

(SUB FOR FFSB108307)

1шт.

10

TY22464

Clamp

(SUB FOR AT145649, AR21836 OR FFSB103981)

8шт.

11

19M7938

Cap Screw

M10 X 20

8шт.

12M7066

Lock Washer

10 mm

8шт.

12

T24432

Clamp

8шт.

13

4190266

Clip

(SUB FOR TH108793)

2шт.

14

H77698

Tie Band

4шт.

15

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

16

4192075

Hose

(SUB FOR AT215520 ) (SUB FOR 4344303)

1шт.

17

RE46686

Fitting

2шт.

18

51M7040

O-Ring

9.300 X 2.200 mm

2шт.

19

AT196589

Adapter Fitting

1шт.

20

TY22462

Clamp

(SUB FOR AR48236)

2шт.

21

RE500576

Fitting

1шт.

22

AT196563

Adapter Fitting

1шт.

23

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

24

RE515341

Adapter Fitting

1шт.
