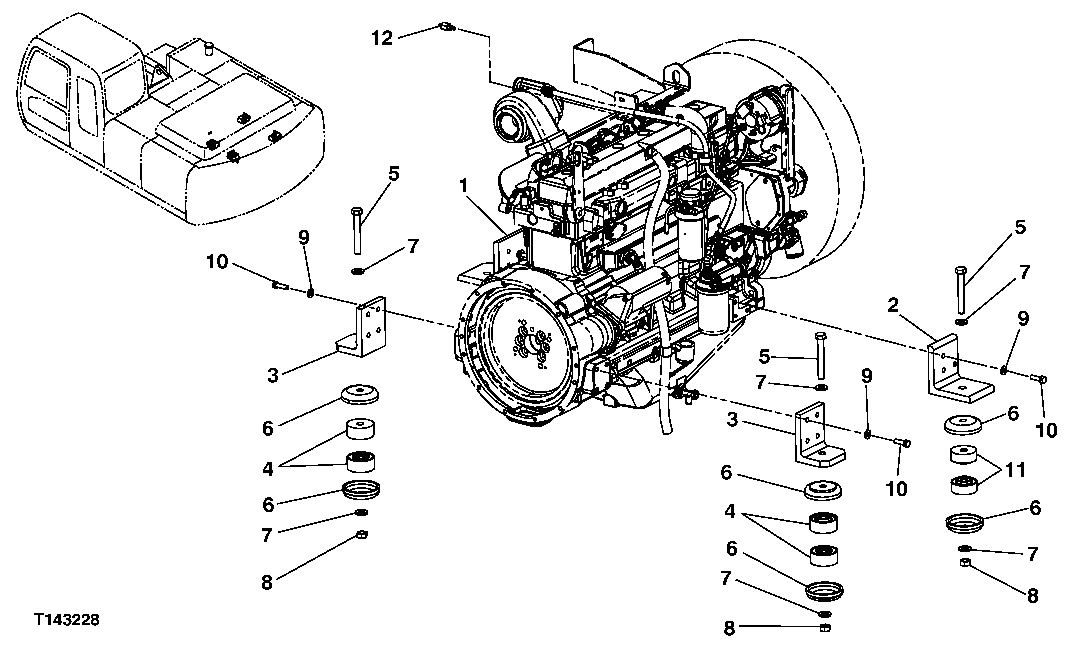

Запчасти John Deere 7C ZTS 228 - ENGINE MOUNTING BRACKETS 0540 ENGINE MOUNTING

1

3075901

Bracket

(SUB FOR AT215091)

1шт.

2

3075902

Angle

(SUB FOR AT215089)

1шт.

3

3075899

Angle

(SUB FOR AT215088)

2шт.

4

4188649

Isolator

(SUB FOR AT155249)

4шт.

5

J921806

Bolt

(SUB FOR AT217704)

4шт.

6

4189018

Retainer

(SUB FOR TH109410)

8шт.

7

24M7353

Washer

20 X 34 X 3 mm

8шт.

8

J950018

Nut

(SUB FOR AT217708)

4шт.

9

24M7345

Washer

13.500 X 24 X 2.500 mm

14шт.

10

19M7493

Cap Screw

M12 X 40 (SUB FOR J921240)

14шт.

11

4256314

Isolator

(SUB FOR AT200995)

4шт.

12

4456798

Sensor

(SUB FOR TH4456798)

1шт.
