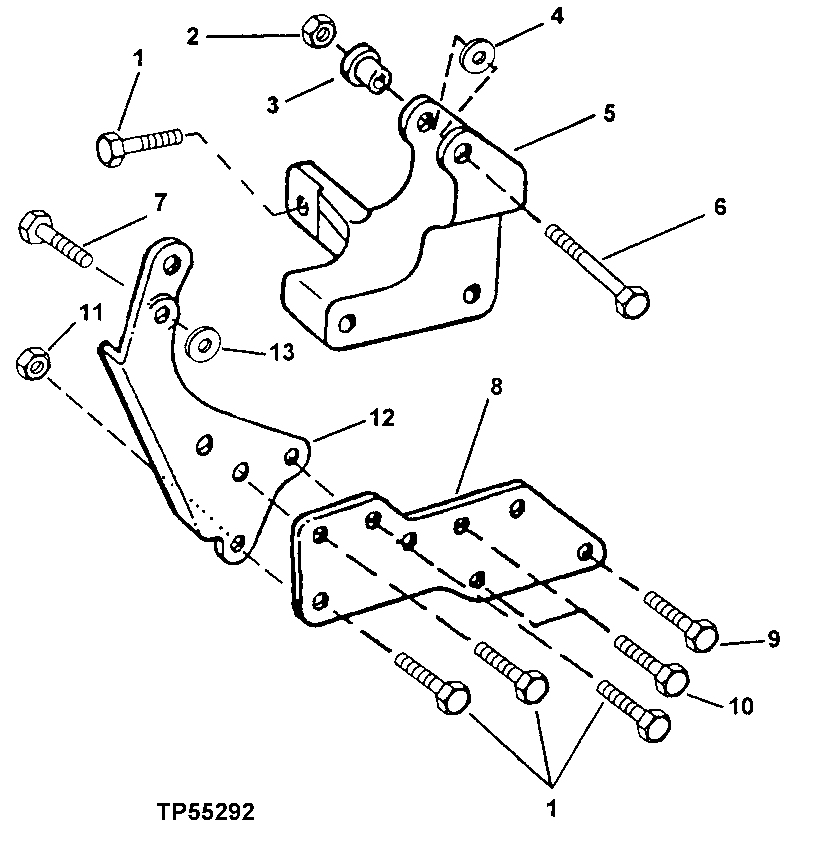

Запчасти John Deere 70LC 62 - Alternator Mounting Brackets 0423 Alternator And Generator Mounting 6068HT052 6068HT052

1

19M7786

Screw

M10 X 30

5шт.

2

14M7296

Flange Nut

M10

1шт.

3

R100377

Bushing

1шт.

4

R64525

Thrust Washer

1шт.

5

R132166

Bracket

1шт.

6

19M7812

Screw

M10 X 100

1шт.

7

19M7867

Screw

M8 X 25

1шт.

8

R132913

Support

1шт.

9

19M7801

Screw

M8 X 60

1шт.

10

19M7785

Cap Screw

2шт.

11

14M7296

Flange Nut

M10

3шт.

12

R132167

Strap

1шт.

13

R48808

Washer

8.128 X 15.748 X 3.937 mm (0.320" X 0.620" X 0.155")

1шт.

14

19M7867

Screw

M8 X 25

1шт.
