Запчасти John Deere 70LC 54 - Thermostat Housing, Thermostat and Cover 0418 THERMOSTATS, HOUSINGS AND WATER PIPING 6068HT052 6068HT052

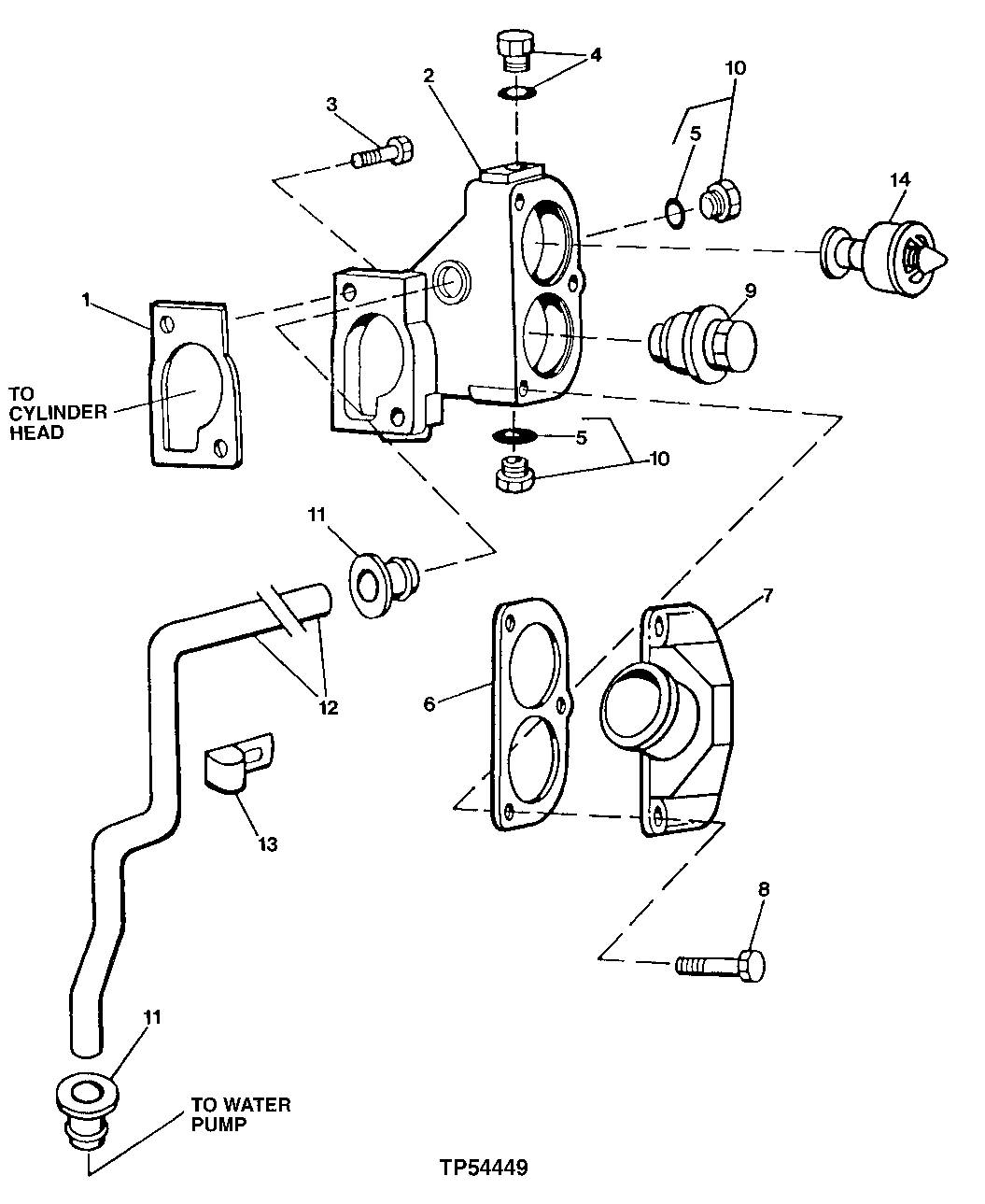

Схема запчастей John Deere 70LC - 54 - Thermostat Housing, Thermostat and Cover 0418 THERMOSTATS, HOUSINGS AND WATER PIPING 6068HT052 6068HT052

Артикул

Название

Примечание

Количество

1

R123345

Gasket

1шт.

2

R123344

Housing

1шт.

3

19M7786

Screw

M10 X 30

2шт.

4

RE46686

Fitting

1шт.

RE56323

Fitting Plug

(SAE)

1шт.

5

51M7041

O-Ring

11.300 X 2.200 mm

3шт.

6

R501373

Gasket

(SUB FOR R54638)

1шт.

7

R131530

Cover

1шт.

8

19M7785

Screw

M10 X 25

3шт.

9

RE33705

Thermostat

(180°) (NON BLOCKING, BOTTOM)

1шт.

10

RE46684

Fitting Plug

3шт.

11

R123226

Seal

2шт.

12

R123589

Tube

1шт.

13

R123324

Clamp

1шт.

14

AR48675

Thermostat

(180 DEG) (BLOCKING, TOP)

1шт.

Выбрано товаров: 15
