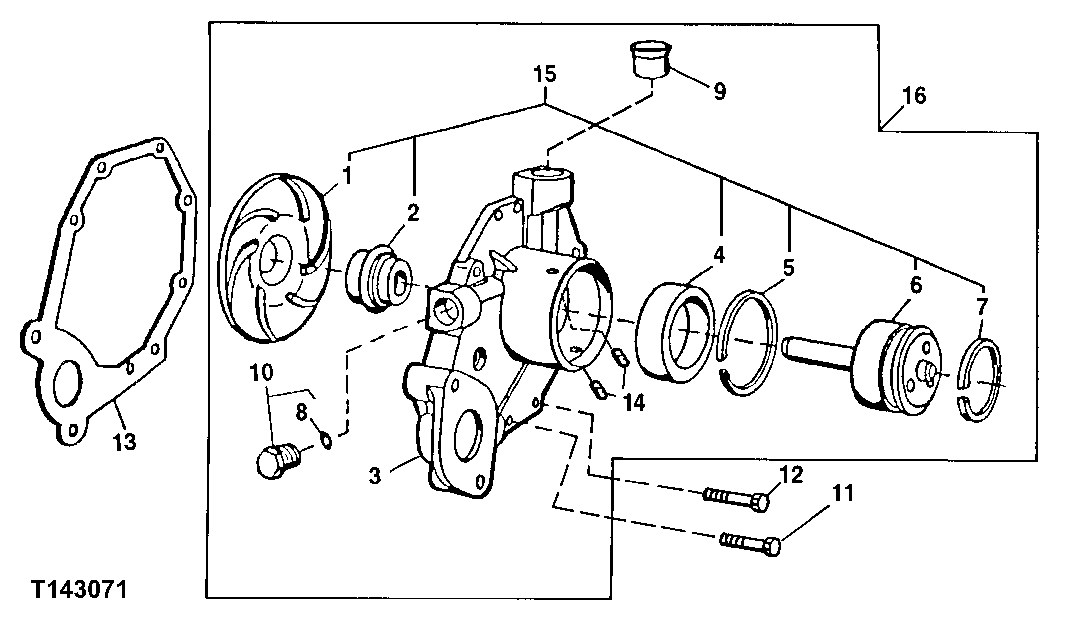

Запчасти John Deere 70LC 51 - Water Pump Assembly ( - 900551) 0417 Water Pump 6068HT052 6068HT052

1

Impeller

1шт.

2

Seal

1шт.

3

Housing

1шт.

4

Ball Bearing

1шт.

5

Ring

1шт.

6

Shaft

1шт.

7

A364R

Snap Ring

1шт.

8

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

9

R123226

Seal

1шт.

10

RE46685

Fitting Plug

1шт.

11

19M7863

Screw

M6 X 25

5шт.

12

19M7796

Screw

M6 X 30

3шт.

13

R123417

Gasket

1шт.

14

R98527

Filter

(USE WITH RE70985)

2шт.

R100369

Filter

(USE WITH RE500734)

2шт.

15

RE70962

Engine Kit

1шт.

16

RE70985

Water Pump

(MARKED R121035 ) (SUB RE500734)

1шт.

RE500734

Water Pump

(MARKED R500401)

1шт.
