Запчасти John Deere 70LC 25 - CRANKSHAFT,CRANKSHAFT GEARS AND MAIN BEARINGS 0401 CRANKSHAFT AND MAIN BEARINGS 6068HT052 6068HT052

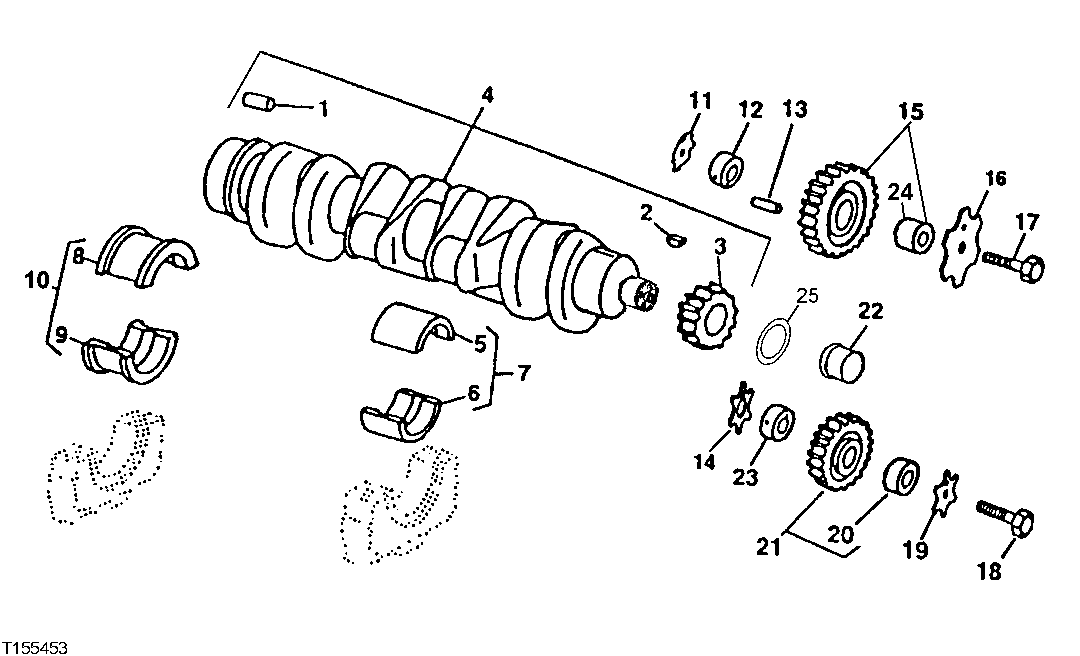

Схема запчастей John Deere 70LC - 25 - CRANKSHAFT,CRANKSHAFT GEARS AND MAIN BEARINGS 0401 CRANKSHAFT AND MAIN BEARINGS 6068HT052 6068HT052

Артикул

Название

Примечание

Количество

1

R48685

Dowel Pin

1шт.

2

26M4224

Shaft Key

4 X 16 mm

1шт.

R505609

Shaft Key

1шт.

3

R120631

Gear

(30 TEETH)

1шт.

4

RE52850

Crankshaft

(MARKED R116076 ) (ALSO ORDER RE5 9811 ) (SUB RE515785 AND RE516340)

1шт.

RE515785

Crankshaft

(MARKED R116076)

1шт.

SE501657

Crankshaft Reman

(A) MARKED R116076; REMAN FOR RE515785

1шт.

5

Bearing

STANDARD UPPER (MARKED R123561)

6шт.

Bearing

UNDERSIZE UPPER .254 MM (MARKED R130576)

6шт.

6

Bearing

STANDARD LOWER (MARKED R123562)

6шт.

Bearing

UNDERSIZE LOWER .254 MM (MARKED R130577)

6шт.

7

RE65165

Bearing Kit

STANDARD

6шт.

RE65911

Bearing

UNDERSIZE .254 MM

6шт.

8

Bearing

STANDARD UPPER (MARKED R123563)

1шт.

Bearing

UNDERSIZE UPPER .254 MM (MARKED R130574)

1шт.

9

Bearing

STANDARD LOWER (MARKED R123564)

1шт.

Bearing

UNDERSIZE LOWER .254 MM (MARKED R130575)

1шт.

10

RE65168

Bearing Kit

STANDARD

1шт.

RE65912

Thrust Bearing

UNDERSIZE .254 MM

1шт.

11

R123174

Lock Washer

1шт.

12

R120641

Shaft

1шт.

13

34H288

Spring Pin

3/16" X 1-3/4"

1шт.

14

R101225

Thrust Washer

1шт.

15

RE56313

Gear

1шт.

16

R131206

Thrust Washer

1шт.

17

19M8997

Screw

M10 X 65

1шт.

18

19M8966

Screw

M10 X 50

1шт.

19

R131283

Thrust Washer

1шт.

20

R114193

Bushing

1шт.

21

RE56369

Gear

1шт.

22

RE59811

Sleeve

WITH INSTALLATION TOOL

1шт.

23

R114194

Shaft

1шт.

24

Bushing

1шт.

25

RE516340

Seal

1шт.

Выбрано товаров: 34
