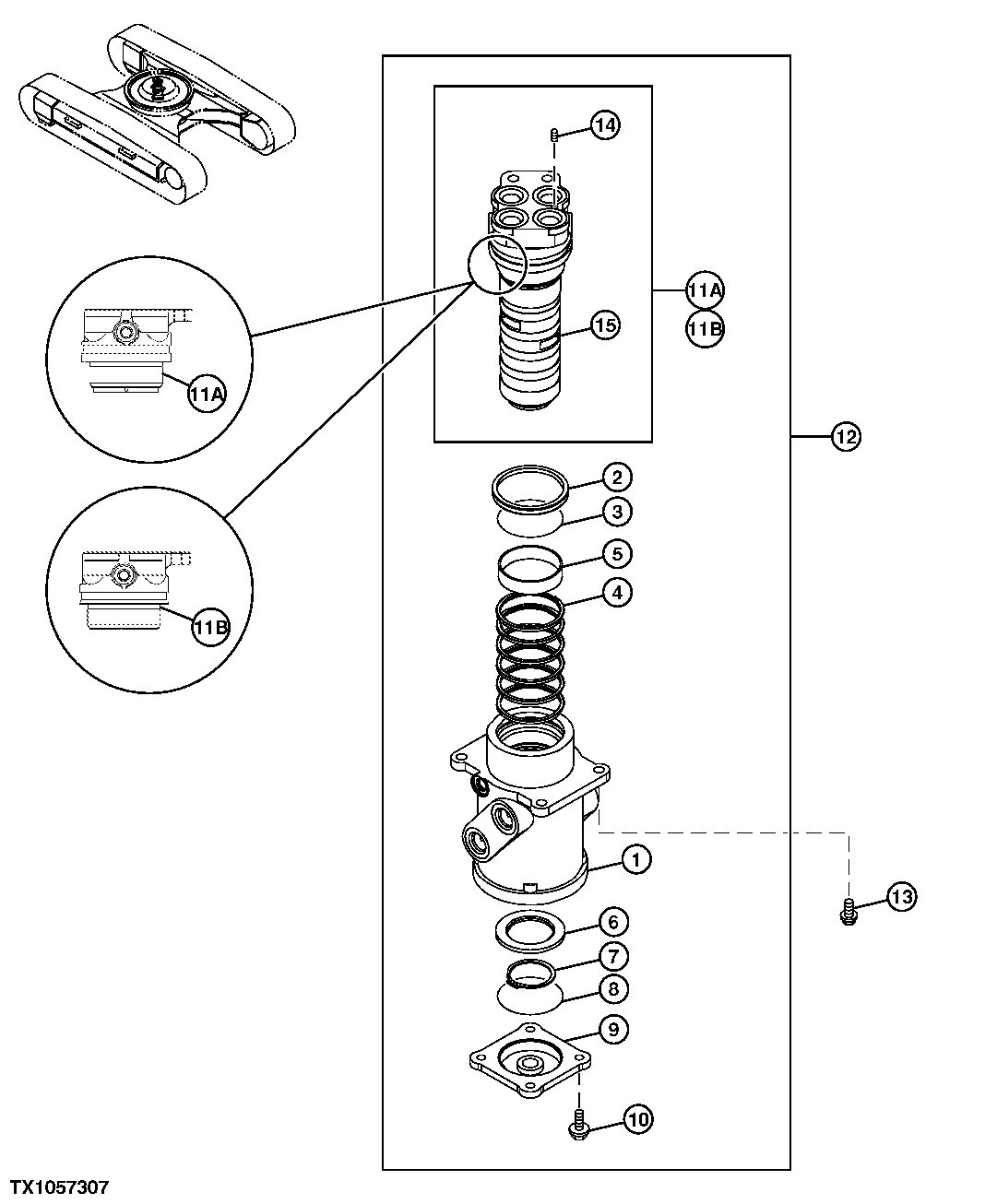

Запчасти John Deere 70LC 22 - Rotary Manifold 0260 HYDRAULIC SYSTEM

1

Housing

USE WITH 9181005, 0003542 NLA

1шт.

0001190

Housing

USE WITH 9145787

1шт.

2

4390776

Seal

USE WITH 9181005

1шт.

AT154321

Seal

USE WITH 9145787, SUB FOR 4272803

1шт.

3

AT264418

O-Ring

SUB FOR 4367664

1шт.

4

AT154162

Seal

SUB FOR 4231543

6шт.

5

4241780

Bushing

1шт.

6

3070250

Ring

1шт.

7

40M7048

Snap Ring

SUB FOR 991347

1шт.

8

CH16109

Packing

SUB FOR A810100

1шт.

9

2034607

Cover

1шт.

10

19M7662

Cap Screw

M10 X 30 SUB FOR J011030

4шт.

11A

Spindle

USE WITH 4390776 AND 0003542, 9181005 NLA

1шт.

11B

9145787

Spindle

USE WITH AT154321 AND 0001190

1шт.

12

9107265

Manifold

1шт.

9107265

Manifold

For Non NA Applications

1шт.

9107265EX

Manifold Reman

For NA Applications REMAN FOR 9107265

1шт.

13

19M7403

Cap Screw

M12 X 35 SUB FOR J011235

4шт.

12H301

Lock Washer

1/2"

4шт.

14

4239611

Plug

1шт.

15

Spindle

0001193 NLA

1шт.
