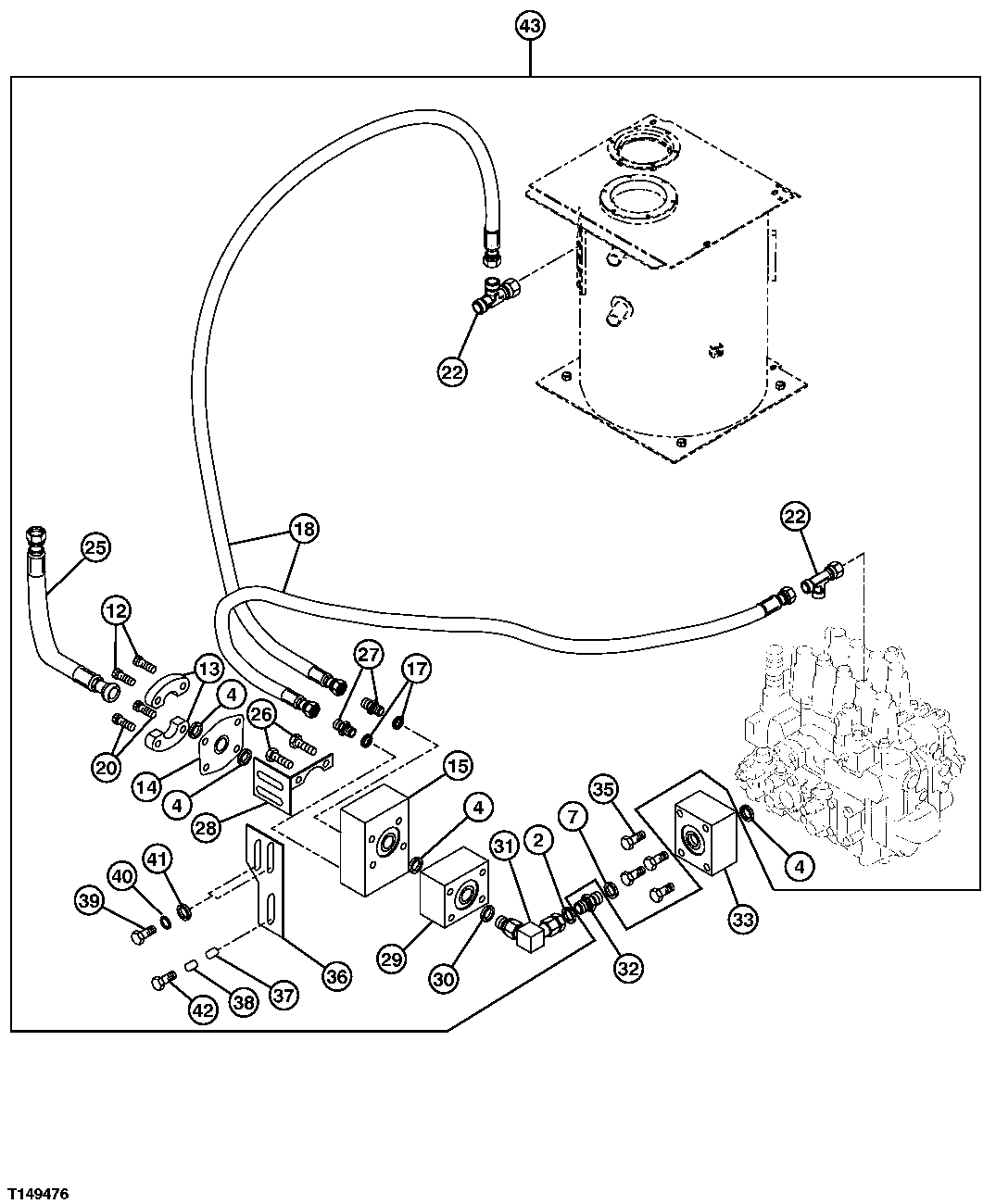

Запчасти John Deere 70LC 281 - ARM REDUCED DRIFT KIT 3360 HYDRAULIC SYSTEM

2

T76938

O-Ring

1шт.

4

T78313

O-Ring

4шт.

7

U12547

O-Ring

1шт.

12

19M8519

Screw

M12 X 120

2шт.

13

T107068

Flange Fitting

2шт.

14

T145378

Fitting

1шт.

15

AT152186

Hyd Actuated Control Valve

1шт.

17

R26448

O-Ring

2шт.

18

AT126601

Hydraulic Hose

9/16" X 1250 mm (49-1/4") X 9/16"

2шт.

20

19M8395

Screw

M12 X 40

2шт.

22

AT36921

Tee Fitting

2шт.

25

AT184945

Hydraulic Hose

1" X 1625 mm (64") X 36.5252"

1шт.

26

19M7349

Cap Screw

M12 X 95

2шт.

27

R27212

Fitting

2шт.

28

T164048

Bracket

1шт.

29

AT183798

Junction Block

1шт.

30

R29936

O-Ring

1шт.

31

38H1086

Elbow Fitting

1шт.

32

38H1179

Adapter Fitting

1шт.

33

AT183797

Adapter Fitting

1шт.

35

0413619

Bolt

(SUB FOR AT154591)

4шт.

36

T164084

Bracket

1шт.

37

4182751

Spacer

(SUB FOR TH103656)

1шт.

38

4182748

Spacer

(SUB FOR TH103653)

1шт.

39

19M7403

Cap Screw

M12 X 35

3шт.

40

12H301

Lock Washer

1/2"

3шт.

41

14M7275

Nut

M12

3шт.

42

19M8166

Cap Screw

M10 X 110

1шт.

43

Field Installation Kit

WHOLEGOODS (ARM ANTI-DRIFT) (ALS O ORDER AT183797 AND 38H1179 ) (S UB FOR AT182805 ( AT196911 NLA))

1шт.
