Запчасти John Deere 70LC 280 - ARM ANTI-DRIFT VALVE HYDRAULICS 3360 HYDRAULIC SYSTEM

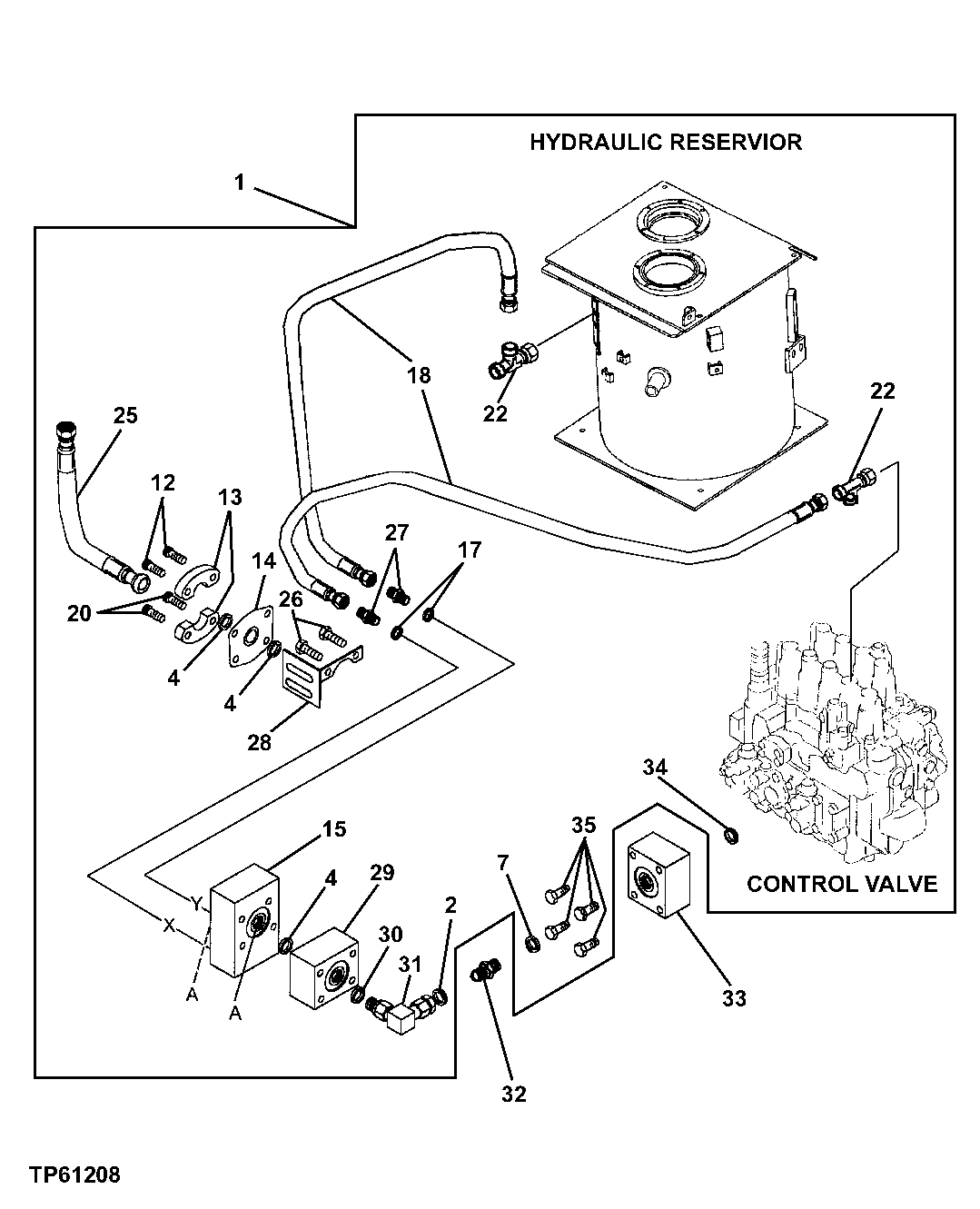

Схема запчастей John Deere 70LC - 280 - ARM ANTI-DRIFT VALVE HYDRAULICS 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

Kit

(ALSO INCLUDES BOOM ANTI-DRIFT VALVE A ND ATTACHING HARDWARE) ( AT182805 NLA)

1шт.

2

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

1шт.

4

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

3шт.

7

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

12

19M8519

Screw

M12 X 120

2шт.

13

T107068

Flange Fitting

2шт.

14

T145378

Fitting

1шт.

15

AT152186

Hyd Actuated Control Valve

1шт.

17

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

2шт.

18

AT126601

Hydraulic Hose

9/16" X 1250 mm (49-1/4") X 9/16"

2шт.

20

19M8395

Screw

M12 X 40

2шт.

22

AT36921

Tee Fitting

2шт.

25

AT184945

Hydraulic Hose

1" X 1625 mm (64") X 36.5252"

1шт.

26

19M7349

Cap Screw

M12 X 95

2шт.

27

R27212

Fitting

2шт.

28

T164048

Bracket

1шт.

29

AT183798

Junction Block

1шт.

30

R26639

Spring

1шт.

31

38H1086

Elbow Fitting

1шт.

32

38H1179

Adapter Fitting

1шт.

33

AT183797

Adapter Fitting

1шт.

34

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

35

0413619

Bolt

(SUB FOR AT154591)

4шт.

Выбрано товаров: 23
