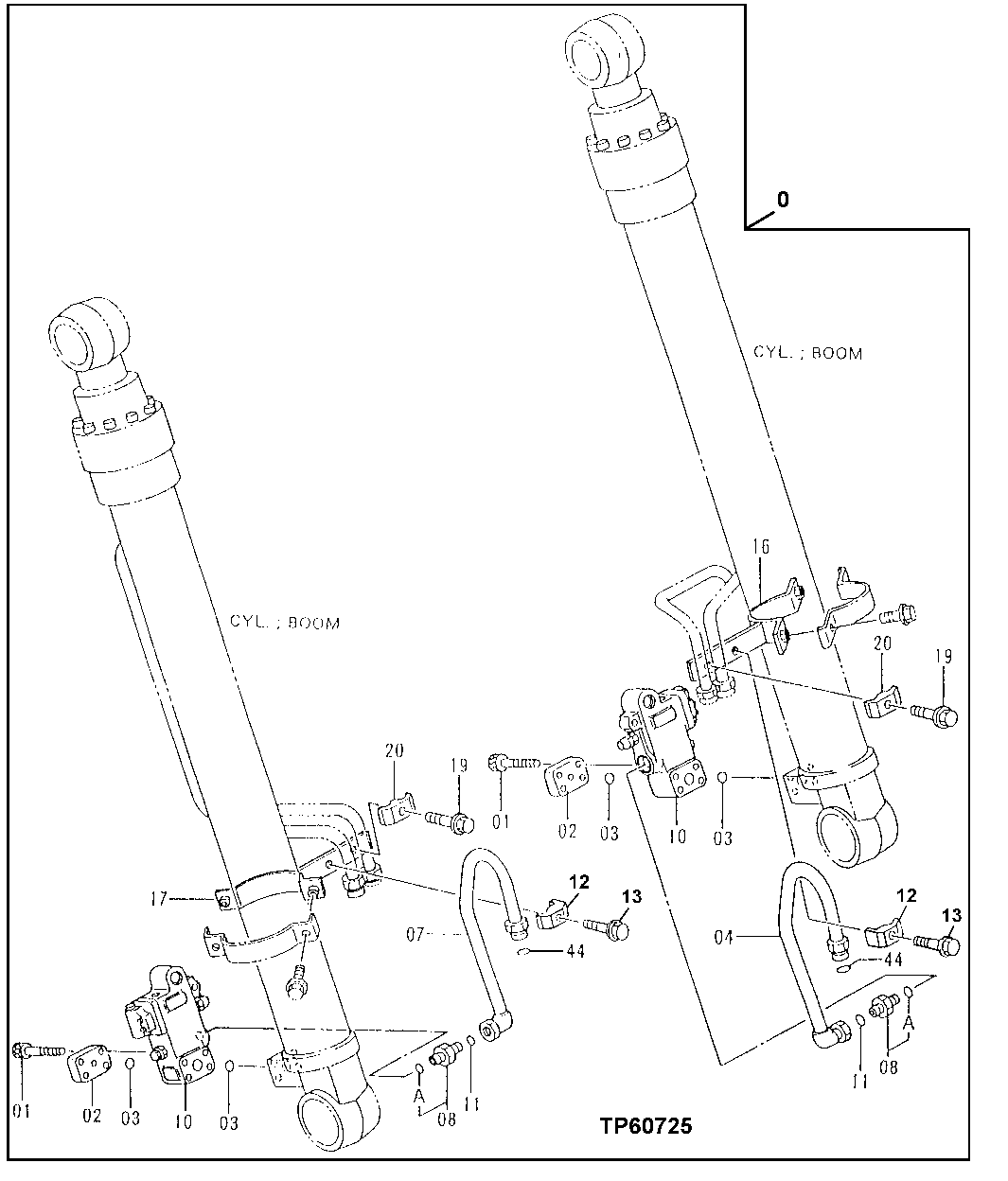

Запчасти John Deere 70LC 278 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 HYDRAULIC SYSTEM

0

Kit

( AT182734 NO LONGER AVAILABLE) (BOOM CY LINDER LOAD LOWERING VALVE) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON THE PREVIOUS AND FOLLOWING PAGE S)

1шт.

1

19M8693

Screw

M12 X 100 (SUB FOR AT217703 OR J781200)

8шт.

2

Flange

(SUB FOR AT173711)( 4284614 NLA)

2шт.

3086613

Flange

(ALSO ORDER 4422953)

2шт.

3

AT264324

O-Ring

(SUB FOR TH100044)

4шт.

4

Oil Line

( 8070365 NLA) (SUB FOR AT182737)

1шт.

7

Oil Line

( 8070394 NLA) (SUB FOR AT182738)

1шт.

8

4207425

Adapter Fitting

(SUB FOR TH111740)

2шт.

8A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

10

4311303

Flow Control Hyd. Valve

(SUB FOR AT173709)(HOLDING)

2шт.

11

T78612

O-Ring

2шт.

12

4190127

Clamp

(SUB FOR TH108313)

2шт.

13

19M7753

Cap Screw

M12 X 70

2шт.

16

Clamp

( 8070429 NLA) (SUB FOR AT182745)

1шт.

17

Clamp

( 8070430 NLA) (SUB FOR AT182746)

1шт.

19

19M7753

Cap Screw

M12 X 70

2шт.

20

Clamp

( TH111990 NO INCLUDED IN T HE KIT, USE EXISTING CLAMP)

2шт.

44

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

72

4422953

Pipe Plug

(NOT ILLUSTRATED)

2шт.
