Запчасти John Deere 70LC 273 - AUXILIARY HYDRAULIC PLUMBING 3360 HYDRAULIC SYSTEM

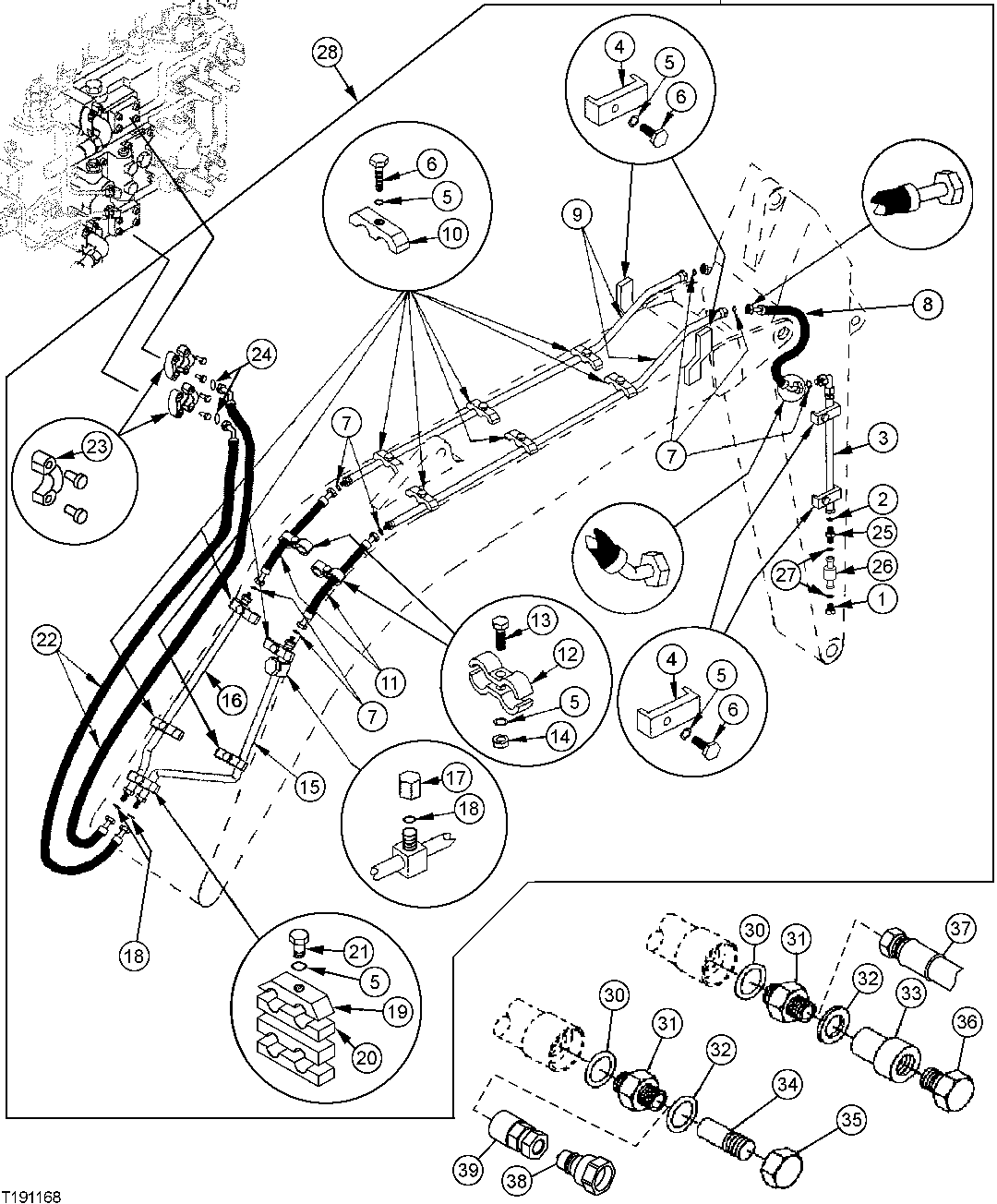

Схема запчастей John Deere 70LC - 273 - AUXILIARY HYDRAULIC PLUMBING 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

38H1151

Fitting Plug

2шт.

2

T78612

O-Ring

2шт.

3

AT159934

Oil Line

2шт.

4

4190127

Clamp

(SUB FOR TH108313)

6шт.

5

12H301

Lock Washer

1/2"

19шт.

6

19M7753

Cap Screw

M12 X 70

16шт.

7

T76938

O-Ring

8шт.

8

AT175002

Hydraulic Hose

(FOR USE WITH 3.1M STANDARD ARM)

2шт.

AT182115

Hydraulic Hose

(FOR USE WITH 3.75M ARM) ( NOT INCLUDED WITH AT197062)

2шт.

9

AT159786

Oil Line

2шт.

10

4153488

Clamp

(SUB FOR TH103780)

10шт.

11

AT159782

Hydraulic Hose

2шт.

12

4202103

Clamp

(SUB FOR TH108302)

4шт.

13

19M7361

Cap Screw

M12 X 50

2шт.

14

14M7275

Nut

M12

2шт.

15

AT182040

Oil Line

1шт.

16

AT182039

Oil Line

1шт.

17

38H1419

Fitting

1шт.

18

T77858

O-Ring

3шт.

19

4189860

Clamp

(SUB FOR TH108314)

1шт.

20

4249704

Clamp

(SUB FOR AT122946)

1шт.

21

19M7758

Cap Screw

M12 X 130

1шт.

22

AT182213

Hydraulic Hose

1" X 1524 mm (60") X 36.5252"

2шт.

23

H61354

Flange Fitting

4шт.

24

T78313

O-Ring

2шт.

25

38H1196

Adapter Fitting

2шт.

26

AT196851

Hand Operated Valve

(BALL VALVE)

2шт.

27

R29936

O-Ring

4шт.

28

Field Installation Kit

(AUXILIARY HYDRAULIC LINE KIT) (F OR 3.75M ARM, ALSO ORDER AT182115 HOSE) (WHOLEGOODS) ( AT197062 NLA)

1шт.

29

R36636

Fitting Plug

(NOT ILLUSTRATED)

2шт.

30

R29936

O-Ring

2шт.

31

38H1216

Adapter Fitting

(ALSO ORDER T76938)(1" ORFS)

2шт.

38H1194

Adapter Fitting

(ALSO ORDER T77858)(3/4" ORFS)

2шт.

AT46961

Union Fitting

(1" SAE, MALE)

2шт.

T27603

Fitting

(3/4" 37 DEGREE)

2шт.

T26767

Fitting

(1" 37 DEGREE)

2шт.

AT83306

Adapter Fitting

(3/4" SAE, MALE)

2шт.

32

R29936

O-Ring

2шт.

33

AT186111

Quick Coupler

(1" FEMALE)(SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189410 NO LONGER AVAILABLE)

1шт.

34

AT186112

Quick Coupler

(1" MALE)(SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189409 NO LONGER AVAILABLE)

1шт.

35

AT186113

Cap

1шт.

36

AT186114

Plug

1шт.

37

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

38

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

39

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

Выбрано товаров: 50
