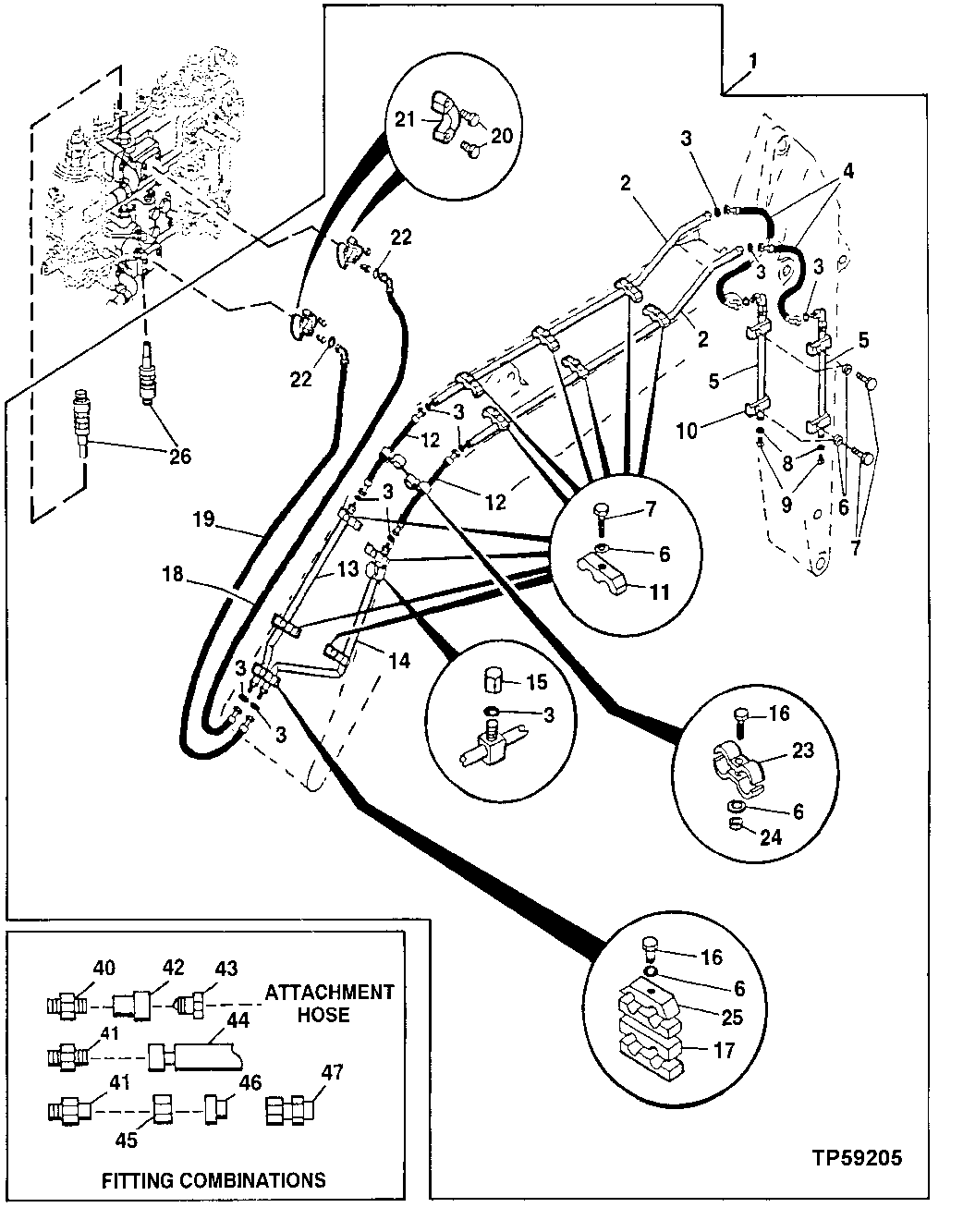

Запчасти John Deere 70LC 272 - AUXILIARY HYDRAULIC PLUMBING 3360 HYDRAULIC SYSTEM

1

Kit

(AUXILIARY PLUMBING) WH OLEGOODS ( AT181920 NLA)

1шт.

2

AT159786

Oil Line

/AUXILIARY, FRONT BOOM/

2шт.

3

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

11шт.

4

AT182115

Hydraulic Hose

(3.75 M ARM (2 USED)

2шт.

AT182115

Hydraulic Hose

(3.1 M ARM (2 USED)

2шт.

5

AT159934

Oil Line

/AUXILIARY, ARM/

2шт.

6

12H301

Lock Washer

1/2" /JDS 12 MEDIUM SPRING/

17шт.

7

19M7753

Cap Screw

M12 X 70

14шт.

8

T78612

O-Ring

2шт.

9

38H1151

Fitting Plug

/O-RING, FSF/

2шт.

10

4190127

Clamp

(SUB FOR TH108313)

4шт.

11

4153488

Clamp

(SUB FOR TH103780)

10шт.

12

AT159782

Hydraulic Hose

36.5252" X 1905 mm (75") X 36.5252" /AUXILIARY, MIDDLE/

2шт.

13

AT182039

Oil Line

/AUXILIARY/ (3.75 M LENGTH AR M REQUIRES (2) AT182039 HOSES)

1шт.

14

AT182040

Oil Line

/AUXILIARY/

1шт.

15

38H1419

Fitting

(SUB FOR 38H1418, THIS AP PLICATION)/FLAT FACE SEAL/

1шт.

16

19M7361

Cap Screw

M12 X 50

2шт.

17

4249704

Clamp

(SUB FOR AT122946)

1шт.

18

AT182213

Hydraulic Hose

/AUXILIARY, REAR/

1шт.

19

AT182213

Hydraulic Hose

/AUXILIARY, REAR/

1шт.

20

Cap Screw

(USE EXISTING CAPSCREW)

8шт.

21

H61354

Flange Fitting

/SPLIT, HALF CLAMP/

4шт.

22

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139") (SUB FOR T59014, THIS APPLICATION)

2шт.

23

4202103

Clamp

(SUB FOR TH108302)RUBBER

4шт.

24

14M7275

Nut

M12

2шт.

25

4189860

Clamp

(SUB FOR TH108314)

1шт.

26

4282718

Pressure Relief Valve

(SUB FOR AT155693)

2шт.

40

38H1196

Adapter Fitting

(-20) 1 11/16 ORFS X (-16) 5/16 SAE O-RING

2шт.

4207425

Adapter Fitting

(SUB FOR TH111740)(-20) 1 1 1/16 ORFS X (-16) 1 IN BSPP

2шт.

38H1165

Adapter Fitting

(-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-RING

2шт.

4267610

Adapter Fitting

(SUB FOR AT137960)(-20) 1 11/ 16 ORFS X (-20) 1 1/4 IN BSPP

2шт.

41

38H1282

Union Fitting

(-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS

2шт.

42

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

43

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

44

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

45

X20BL-S

Tube Nut

ORFS (-20) 1 11/16

2шт.

46

38H1477

Reducer

ORFS (-20) TO (-12)

2шт.

47

38H1070

Fitting

(1 3/16 ORFS X 1 1/16 SAE O-RING)

2шт.
