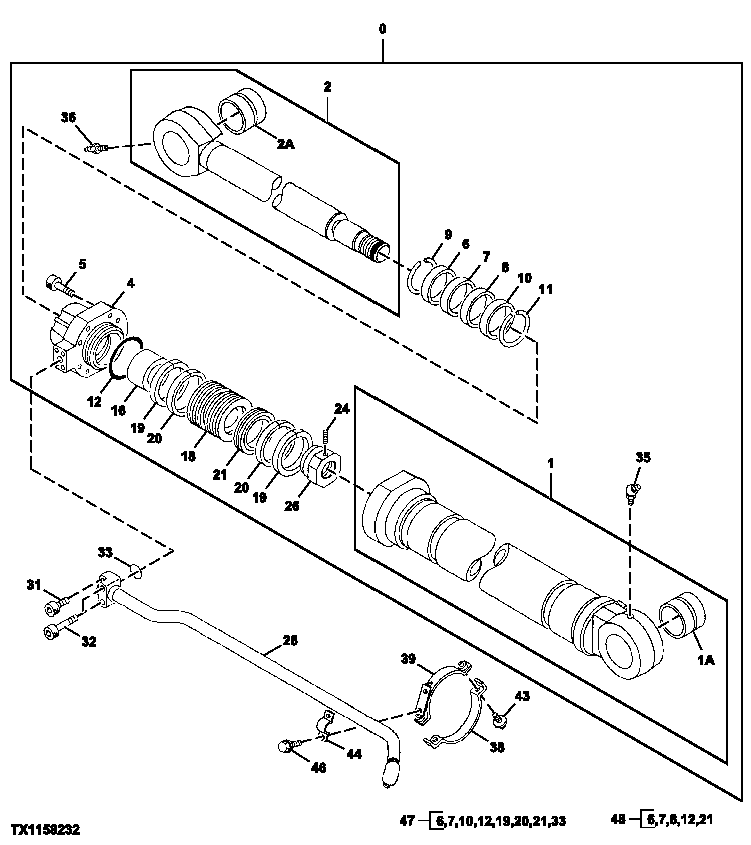

Запчасти John Deere 70LC 269 - Bucket Cylinder 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

AT218038 NLA

1шт.

9264709

Hydraulic Cylinder

SUB FOR AT183698 OR 9161897EX REMAN

1шт.

1

9161900

Hydraulic Cylinder Barrel

SUB FOR AT218041

1шт.

1A

3031788

Bushing

SUB FOR TH110045

1шт.

2

Hydraulic Cylinder Rod

4645908 NLA, SUB FOR AT218000

1шт.

Hyd Cylinder Rod Reman

PG201311 NLA

1шт.

2A

3036657

Bushing

SUB FOR AT205817

1шт.

4

1015437

Hydr. Cylinder Rod Guide

SUB FOR AT217934

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

T204375

Seal

SUB FOR AT181238, AT217759 AND AT264293

1шт.

7

AT264395

Seal

SUB FOR TH110018

1шт.

8

4412693

Seal

SUB FOR 4253560

1шт.

9

4369507

Ring

SUB FOR AT217806

1шт.

10

AT264321

Bushing

SUB FOR AT154779 OR AT264273

1шт.

11

4264983

Snap Ring

SUB FOR AT131251

1шт.

12

AT264268

O-Ring

1шт.

16

4264979

Spacer

SUB FOR AT217957

1шт.

18

3052363

Piston

SUB FOR AT217937

1шт.

19

AT264397

Ring

SUB FOR TH110033

2шт.

20

AT264266

Wear Ring

SUB FOR AT154718

2шт.

21

AT264297

Seal

SUB FOR TH110036 OR AT218148

1шт.

24

4201805

Set Screw

M12 X 16 SUB FOR TH110037

1шт.

26

3063059

Nut

SUB FOR AT217940

1шт.

28

8049650

Oil Tube

SUB FOR AT218005

1шт.

31

19M8341

Screw

M12 X 45

2шт.

32

19M8444

Screw

M12 X 60

2шт.

33

AT264324

O-Ring

SUB FOR TH100044

1шт.

35

T116334

Lubrication Fitting

1шт.

36

TH100074

Lubrication Fitting

1шт.

38

3049761

Clamp

SUB FOR AT154667

1шт.

39

8046730

Clamp

SUB FOR AT154820

1шт.

8079292

Clamp

1шт.

43

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

44

4174241

Clamp

SUB FOR TH110059

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

47

AT264439

Hydraulic Cylinder Kit

NLA, ORDER 9180580, SUB FOR AT218044

1шт.

48

9180580

Hydraulic Cylinder Kit

Order Additional Seals R equired as Separate Parts

1шт.
