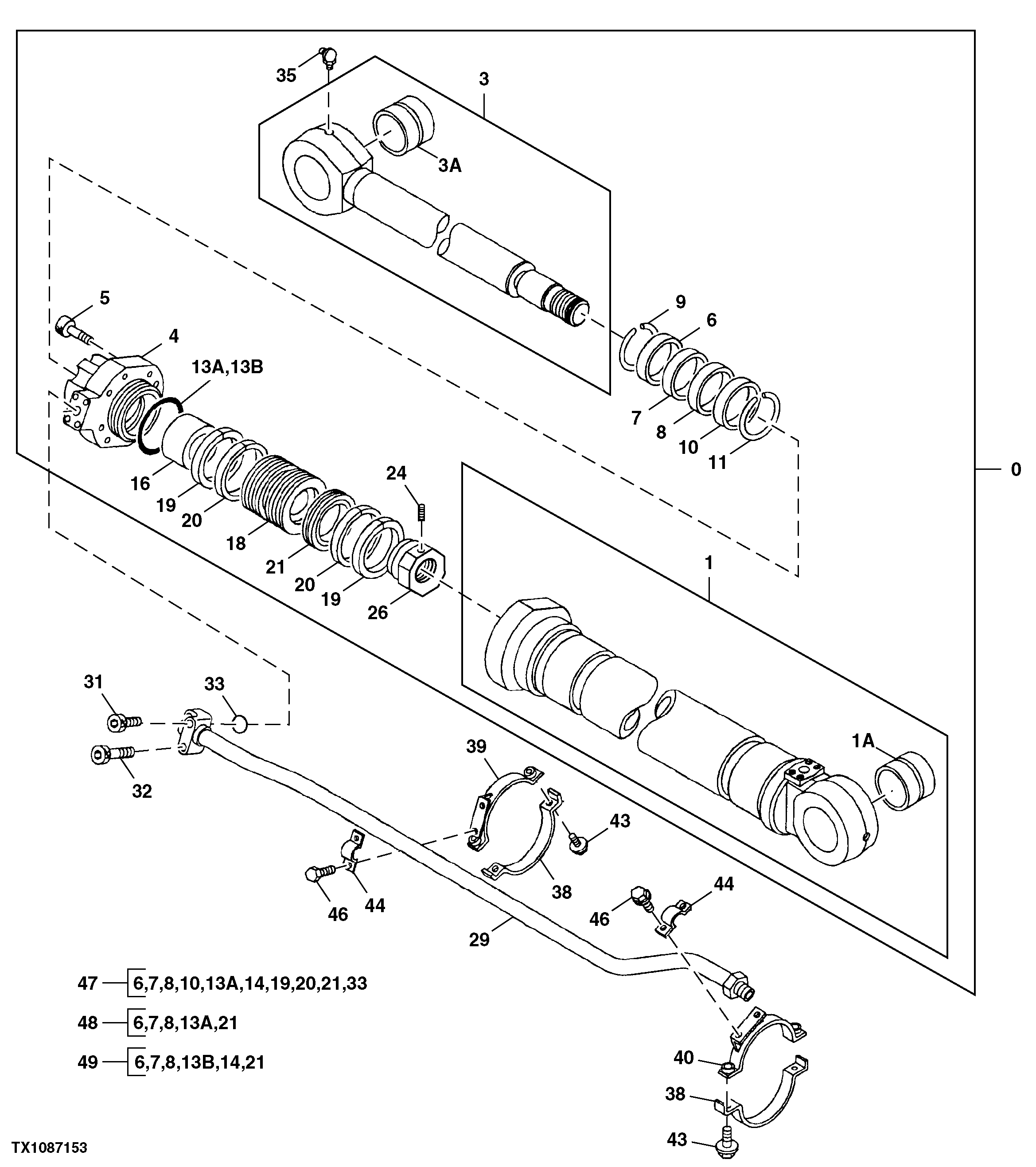

Запчасти John Deere 70LC 268 - Arm Cylinder 3360 HYDRAULIC SYSTEM

0

9264708

Cylinder

AT264197 NLA, SUB FOR AT218037 OR 9161896 AND AT264197, REMAN

1шт.

1

Structural Tube

SUB 4646004; SUB FOR AT159579; 9161899 NLA

1шт.

4646004

Tube

ALSO ORDER (2) 3080216, 8069891 AND 8069890

1шт.

4646004

Tube

SUB FOR PG201296

1шт.

1A

3031789

Bushing

SUB FOR TH110072

1шт.

3

4645907

Hydraulic Cylinder Rod

SUB FOR AT218001; SUB FOR 7030938

1шт.

4645907

Hydraulic Cylinder Rod

SUB FOR PG201395

1шт.

3A

3031789

Bushing

SUB FOR TH110072

1шт.

4

1015436

Cylinder Head

SUB FOR AT159581

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264277

Seal

SUB FOR AT181247, 4348207

1шт.

7

AT264398

Seal

SUB FOR TH110049

1шт.

8

AT264279

Ring

SUB FOR AT181790

1шт.

9

4369509

Ring

SUB FOR AT181248

1шт.

10

AT264237

Bushing

SUB FOR AT131414

1шт.

11

4267139

Snap Ring

SUB FOR AT130817

1шт.

13A

AT264295

O-Ring

SUB FOR AT217990, 4380144 For Heat Problems See DTAC Solution

1шт.

13B

4641100

O-Ring

Heat Resistant

1шт.

14

AT280434

Back-Up Ring

Not Illustrated

1шт.

16

4267137

Ring

SUB FOR AT159583

1шт.

18

3052364

Piston

SUB FOR AT159584

1шт.

19

AT264400

Ring

SUB FOR TH110062

2шт.

20

AT264275

Wear Ring

SUB FOR AT159585, 4194621

2шт.

21

AT264402

Ring

SUB FOR TH110065

1шт.

24

4201806

Set Screw

M12 X 20 SUB FOR TH110066

1шт.

26

3063060

Nut

SUB FOR AT217941

1шт.

29

8053093

Line

SUB FOR AT159587

1шт.

31

19M8341

Screw

M12 X 45

2шт.

32

19M8444

Screw

M12 X 60

2шт.

33

AT264324

O-Ring

SUB FOR TH100044

1шт.

35

T116334

Lubrication Fitting

1шт.

38

3043349

Clamp

USE WITH 9161899; SUB FOR TH111883

2шт.

3080216

Clamp

USE WITH 4646004

2шт.

39

8049660

Clamp

USE WITH 9161899; SUB FOR AT159588

1шт.

8069891

Clamp

USE WITH 4646004

1шт.

40

8049661

Clamp

USE WITH 9161899; SUB FOR AT159589

1шт.

8069890

Clamp

USE WITH 4646004

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

44

4194152

Clamp

SUB FOR TH110029

2шт.

46

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

1шт.

47

Seal Kit

For Heat Problems See DTAC Solution 9161918, AT218043 NLA; SUB AT264438

1шт.

Seal Kit

For Heat Problems See DTAC Solu tion AT264438 NLA; SUB 9180579

1шт.

48

9180579

Seal Kit

For Heat Problems See DTAC Solution

1шт.

49

9257551

Seal Kit

Heat Resistant

1шт.
