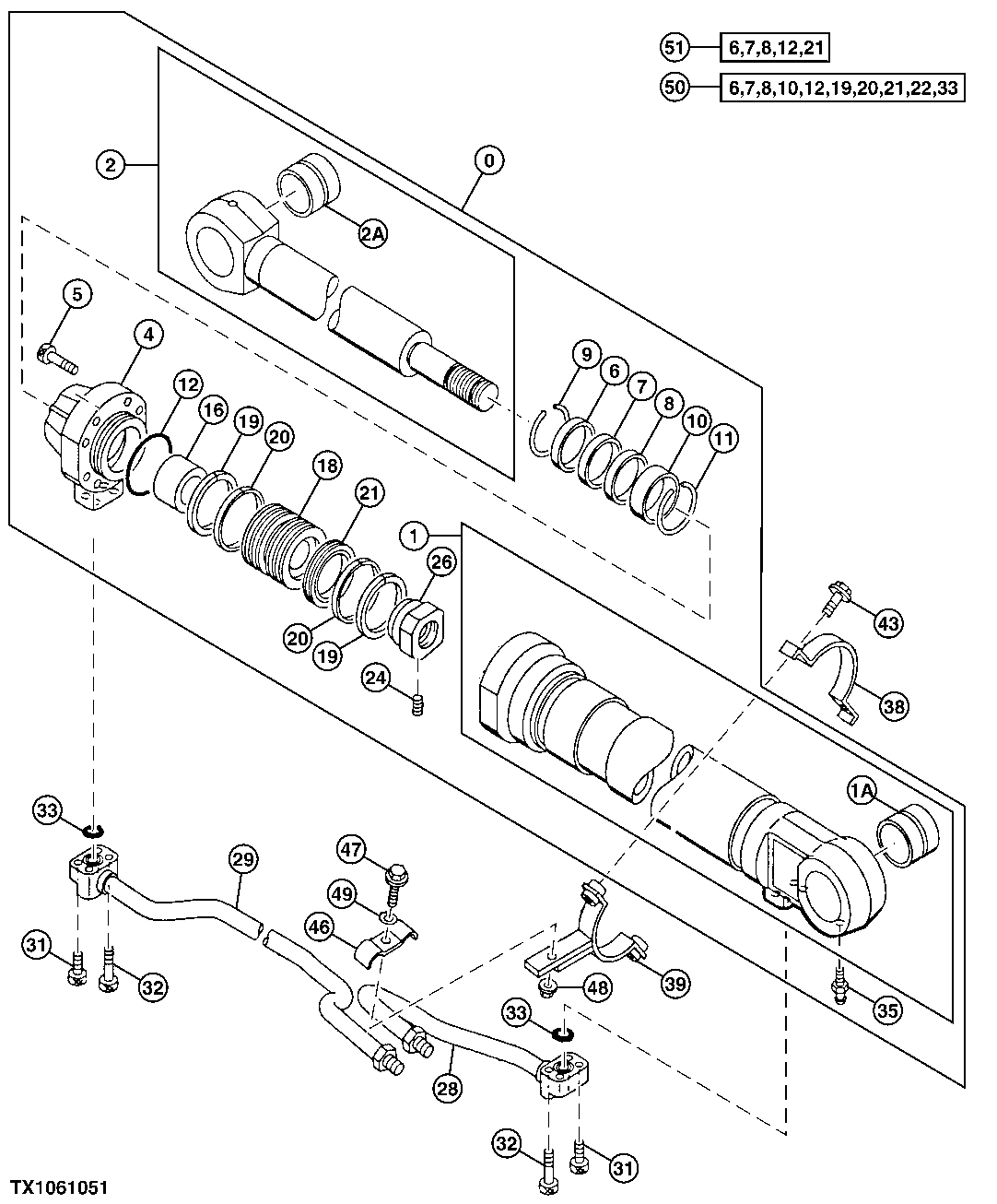

Запчасти John Deere 70LC 266 - Right Boom Cylinder 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder Reman

AT264217 NLA, SUB FOR AT218036

1шт.

1

4646003

Tube

SUB FOR AT218039 AND 9161898; ALSO ORDER 3088623 AND 8079314

1шт.

4646003

Tube

SUB FOR PG201286

1шт.

1A

3042080

Bushing

SUB FOR AT165103

1шт.

2

4645906

Rod

SUB FOR 7030925 AND AT217999

1шт.

4645906

Rod

SUB FOR PG201397

1шт.

2A

3042080

Bushing

SUB FOR AT165103

1шт.

4

1015435

Hydr. Cylinder Rod Guide

SUB FOR AT217933

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264294

Seal

SUB FOR AT217969 OR 4348201

1шт.

7

AT264408

Seal

SUB FOR TH111216

1шт.

8

4389326

Ring

SUB FOR AT264409

1шт.

9

4369508

Ring

SUB FOR AT217983

1шт.

10

AT217959

Wear Ring

1шт.

11

4264982

Snap Ring

SUB FOR AT131254

1шт.

12

AT264268

O-Ring

1шт.

16

4264978

Spacer

SUB FOR AT217956

1шт.

18

3052363

Piston

SUB FOR AT217937

1шт.

19

AT264397

Ring

SUB FOR TH110033

2шт.

20

AT264266

Wear Ring

SUB FOR AT154718

2шт.

21

AT264297

Seal

SUB FOR TH110036 OR AT218148

1шт.

22

AT264349

Back-Up Ring

Not Illustrated

1шт.

24

4201805

Set Screw

M12 X 16 SUB FOR TH110037

1шт.

26

3063059

Nut

SUB FOR AT217940

1шт.

28

8049356

Oil Tube

SUB FOR AT218003

1шт.

29

8064641

Oil Tube

SUB FOR AT218022

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

SUB FOR TH100044

2шт.

35

TH100074

Lubrication Fitting

1шт.

38

3049761

Clamp

SUB FOR AT154667

1шт.

39

8049658

Clamp

SUB FOR AT218006

1шт.

43

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

46

4229234

Clamp

SUB FOR TH111990

1шт.

47

19M8348

Cap Screw

M12 X 65

1шт.

48

14M7275

Nut

M12

1шт.

49

12H301

Lock Washer

1/2"

1шт.

50

AT264437

Hydraulic Cylinder Kit

NLA, ORDER 9180587, SUB FOR 9161917 AND AT218042

1шт.

51

9180587

Hydraulic Cylinder Kit

1шт.
