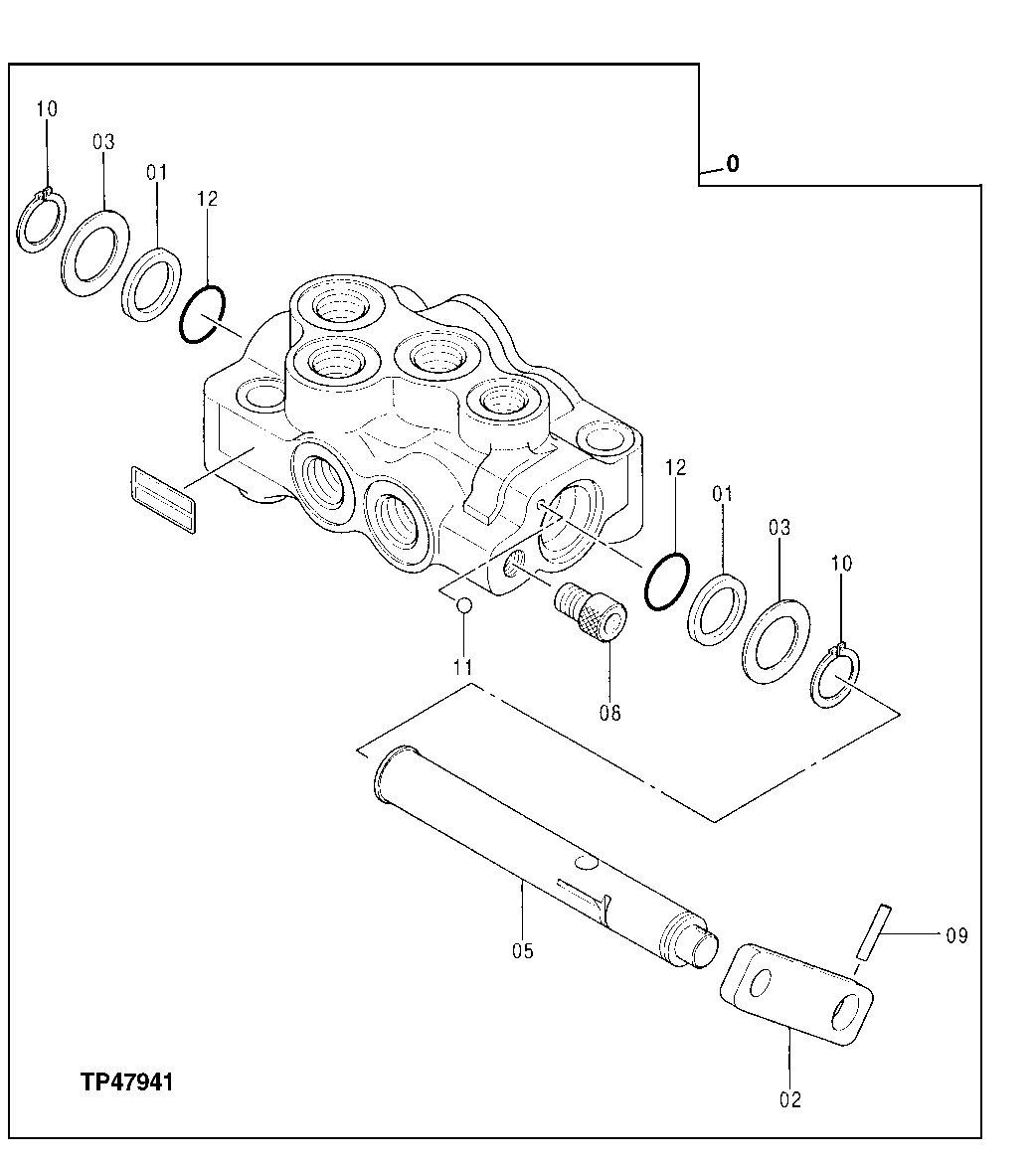

Запчасти John Deere 70LC 264 - Lock Valve 3360 HYDRAULIC SYSTEM

0

4334827

Flow Control Hyd. Valve

(SUB FOR AT213862)

1шт.

1

0309904

Back-Up Ring

(SUB FOR TH109299)

2шт.

2

0668301

Strap

(SUB FOR AT213705)

1шт.

3

0396603

Washer

(SUB FOR AT153842)

2шт.

5

0668303

Valve Spool

(SUB FOR AT213706)

1шт.

8

0396604

Bolt

(SUB FOR AT153843)

1шт.

9

0668304

Spring Pin

(SUB FOR AT213707)

1шт.

10

40M1824

Snap Ring

(SUB FOR AT153844 ) (SUB FOR 0396605)

2шт.

11

0309902

Ball

(SUB FOR TH109297)

1шт.

12

CH14634

O-Ring

17.800 X 2.400 mm (0.701" X 3/32")

2шт.
