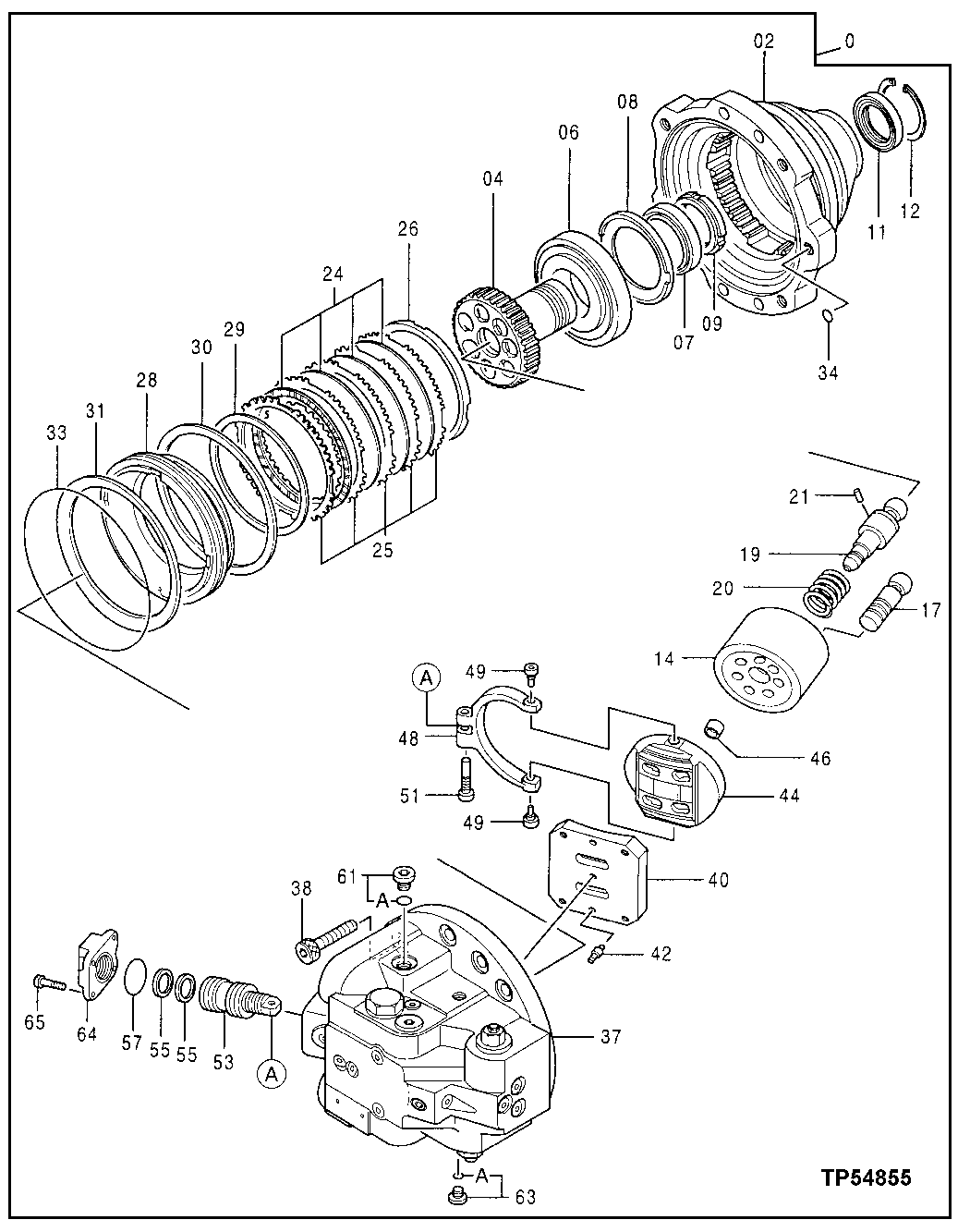

Запчасти John Deere 70LC 17 - Travel Motor 0260 HYDRAULIC SYSTEM

0

9156041

Oil

NLA (ORDER 9156041EX)

1шт.

9156041EX

Hydraulic Motor Reman

(REMAN FOR 9156041) (SUB FOR AT183696) (SUB FOR AT218034)(USE IF AVAILABLE) ( IF AT218034 NOT AVAILABLE, SUB AT183696 )

1шт.

2

1019564

Transmission Case

(SUB FOR AT203601)

1шт.

4

2031327

Shaft

(SUB FOR AT203602)

1шт.

6

JD10304

Tapered Roller Bearing

1шт.

7

JD10063

Tapered Roller Bearing

1шт.

8

4227550

Spacer

(SUB FOR AT130838)

1шт.

9

4191665

Nut

(SUB FOR TH111236)

1шт.

11

4639126

Seal

(SUB FOR TH112094)

1шт.

12

4038529

Snap Ring

(SUB FOR AT130840)

1шт.

14

2022744

Rotor

(SUB FOR TH111111)

1шт.

17

8051275

Piston

(SUB FOR AT203603)

7шт.

19

3078298

Shaft

(SUB FOR AT203604)(USE IF AVAILABLE)

1шт.

3078298

Shaft

(SUB FOR AT203604 ) (SUB FOR AT219625)

1шт.

20

4194362

Compression Spring

(SUB FOR TH111266)

1шт.

21

4198956

Pin Fastener

(SUB FOR T107766)

1шт.

24

3036457

Plate

(SUB FOR TH111154)

4шт.

25

3036456

Plate

(SUB FOR TH111153)

5шт.

26

4193996

Spacer

(SUB FOR TH111260)

1шт.

28

3078190

Piston

(SUB FOR AT203605)(USE IF AVAILABLE)

1шт.

3078190

Piston

(SUB FOR AT203605 ) (SUB FOR AT219623)

1шт.

29

4252401

O-Ring

(SUB FOR TH111261)

1шт.

30

4269474

Ring

(SUB FOR AT203606)

1шт.

31

3054505

Disk

(SUB FOR AT203607)

1шт.

33

4269473

O-Ring

(SUB FOR AT203608)

1шт.

34

T111819

O-Ring

14.800 X 2.400 mm (0.583" X 3/32")

1шт.

37

9158391

Flow Control Hyd. Valve

(SUB FOR AT218035)

1шт.

38

M341850

Bolt

M18 X 50 (SUB FOR AT131557)

4шт.

40

2035236

Plate

(SUB FOR AT203609)

1шт.

42

4364104

Pin

(SUB FOR AT217970)

2шт.

44

2033787

Manifold

(SUB FOR AT203610)(ALSO ORDER 4234628 BUSHING)

1шт.

46

4234628

Bushing

(SUB FOR AT154704)

1шт.

48

2040803

Link

(SUB FOR AT203611 ) (SUB FOR AT219601)

1шт.

49

4255238

Plug

(SUB FOR AT154745)

2шт.

51

4262561

Bolt

(SUB FOR AT154768)

1шт.

53

9098902

Piston

(SUB FOR AT203612)(SERVO)

1шт.

55

4260308

Piston Ring

(SUB FOR AT154759)

2шт.

57

4265579

O-Ring

(SUB FOR AT154770)

1шт.

61

9134112

Fitting Plug

(SUB FOR AT203657)

1шт.

61A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

63

9134109

Drain Plug

(SUB FOR AT203656)

1шт.

63A

4506408

O-Ring

(SUB FOR TH101490)

1шт.

64

4364922

Cover

(SUB FOR AT217971)

1шт.

65

19M8168

Screw

M12 X 25

4шт.
