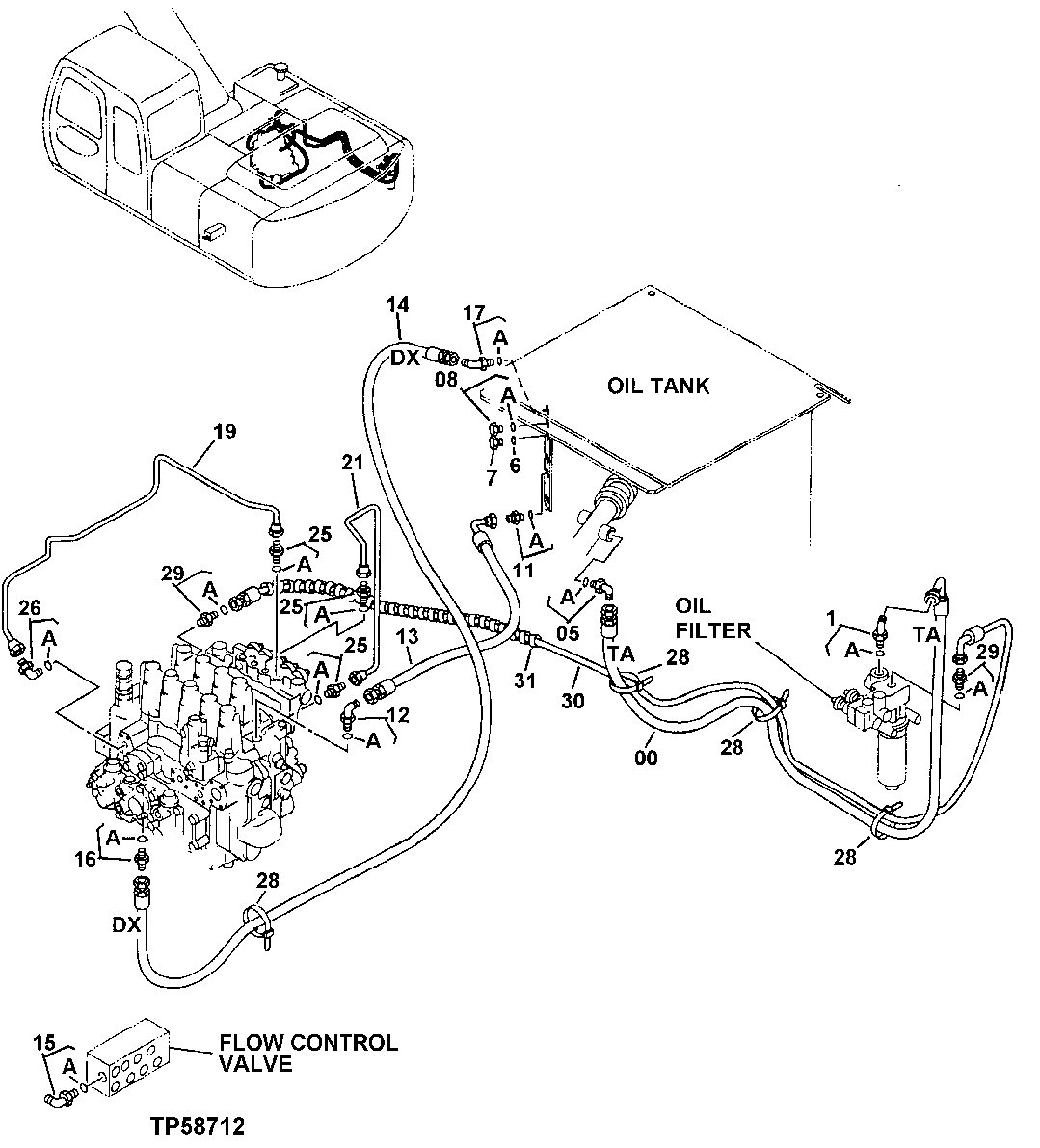

Запчасти John Deere 70LC 259 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

AT217779

Hydraulic Hose

1шт.

1

4154672

Elbow Fitting

SUB FOR TH101008

1шт.

1A

4506418

O-Ring

SUB FOR U46489

1шт.

5

4219345

Elbow Fitting

SUB FOR AT130819

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

1шт.

8

4093624

Drain Plug

SUB FOR TH102536

1шт.

8A

M800650

Packing

1шт.

11

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

A852333

Elbow Fitting

SUB FOR TH101047SUB FOR 4154671

1шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

P61629

Hydraulic Hose

1шт.

14

AT213933

Hydraulic Hose

1шт.

15

AT318014

Elbow Fitting

SUB FOR 4156434SUB FOR TH101930

1шт.

15A

M800650

Packing

1шт.

16

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

16A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

17

AT318014

Elbow Fitting

SUB FOR 4156434 SUB FOR TH101930

1шт.

17A

M800650

Packing

1шт.

19

3071730

Oil Line

SUB FOR AT213777

1шт.

21

3068867

Oil Line

SUB FOR AT213753

1шт.

25

4255304

Fitting

SUB FOR AT155270

3шт.

25A

M800650

Packing

1шт.

26

4293950

Fitting

SUB FOR AT160584

1шт.

26A

M800650

Packing

1шт.

28

H77698

Tie Band

4шт.

29

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

29A

M800650

Packing

1шт.

30

AT214317

Hydraulic Hose

1шт.

31

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

2шт.
