Запчасти John Deere 70LC 253 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

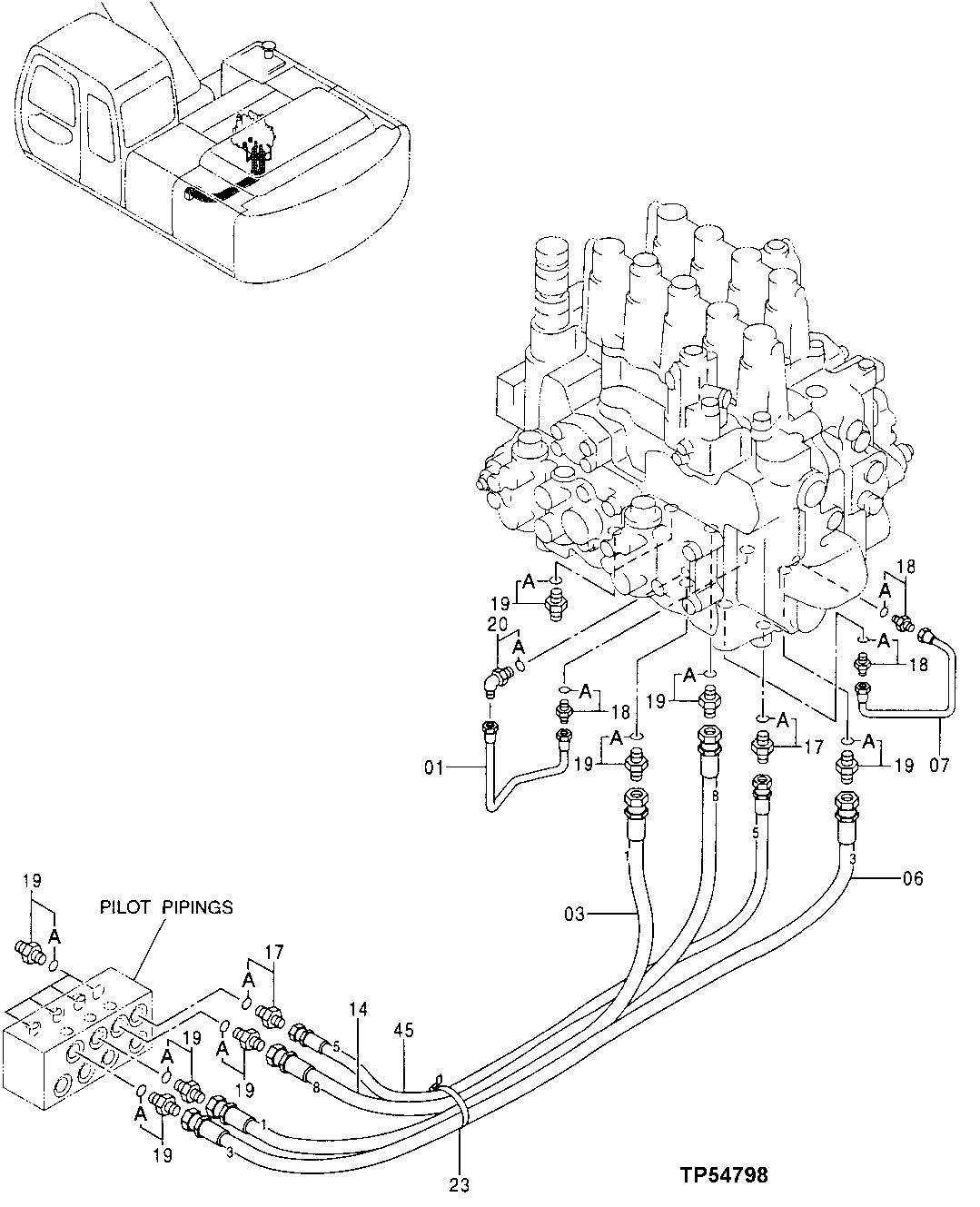

Схема запчастей John Deere 70LC - 253 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

4333876

Oil Line

(SUB FOR AT213853)

1шт.

3

AT217771

Hydraulic Hose

1шт.

6

AT217773

Hydraulic Hose

1шт.

7

4351261

Oil Line

(SUB FOR AT213959)

1шт.

14

AT217795

Hydraulic Hose

1шт.

17

4200468

Adapter Fitting

(SUB FOR AT126336)

2шт.

17A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

18

4255305

Fitting

(SUB FOR AT213809)

3шт.

18A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

19

4200466

Adapter Fitting

(SUB FOR TH108320)

12шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

20

AT318022

Elbow Fitting

(SUB FOR 4349712, AT213925)

1шт.

20A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

23

H77698

Tie Band

1шт.

45

AT217800

Hydraulic Hose

1шт.

Выбрано товаров: 15
