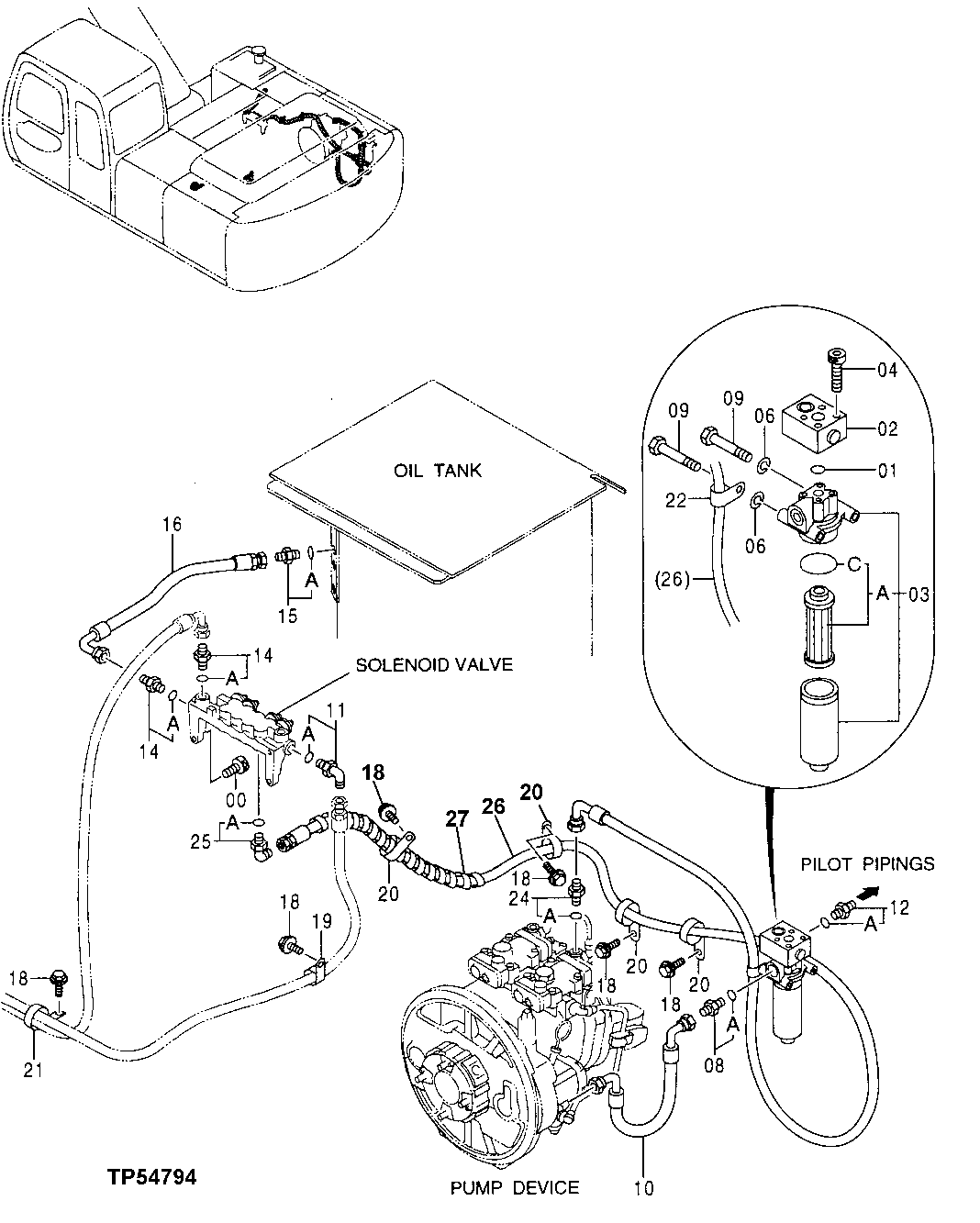

Запчасти John Deere 70LC 248 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

19M7576

Screw

M10 X 30 SUB FOR J781030

2шт.

1

4506416

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") SUB FOR TH102561

1шт.

2

4351142

Pressure Relief Valve

SUB FOR AT213955

1шт.

3

4330227

Filter Head

SUB FOR AT213834

1шт.

3A

AT186554

Filter Element

SUB FOR AT214263

1шт.

3C

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

4

AT213613

Screw

4шт.

6

12M7066

Lock Washer

10 mm

2шт.

8

X8-10F5OX

Adapter Fitting

SUB FOR TH101006

1шт.

8A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

9

19M8343

Cap Screw

M10 X 120

2шт.

10

AT218177

Hydraulic Hose

1шт.

11

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

4200469

Adapter Fitting

SUB FOR TH108400

1шт.

12A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

14

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

AT217776

Hydraulic Hose

1шт.

18

19M7938

Cap Screw

M10 X 20

6шт.

12M7066

Lock Washer

10 mm

6шт.

19

4190275

Clamp

SUB FOR TH108598

1шт.

20

AT121321

Hose Clamp

4шт.

21

XCL-29

Hose Clamp

SUB FOR TH110522 OR 4193848

1шт.

22

4190261

Clip

SUB FOR TH109649

1шт.

24

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

24A

M800650

Packing

1шт.

25

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

25A

M800650

Packing

1шт.

26

4657419

Hydraulic Hose

ALSO ORDER TH108328, SUB FOR 4382955

1шт.

27

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

1шт.
