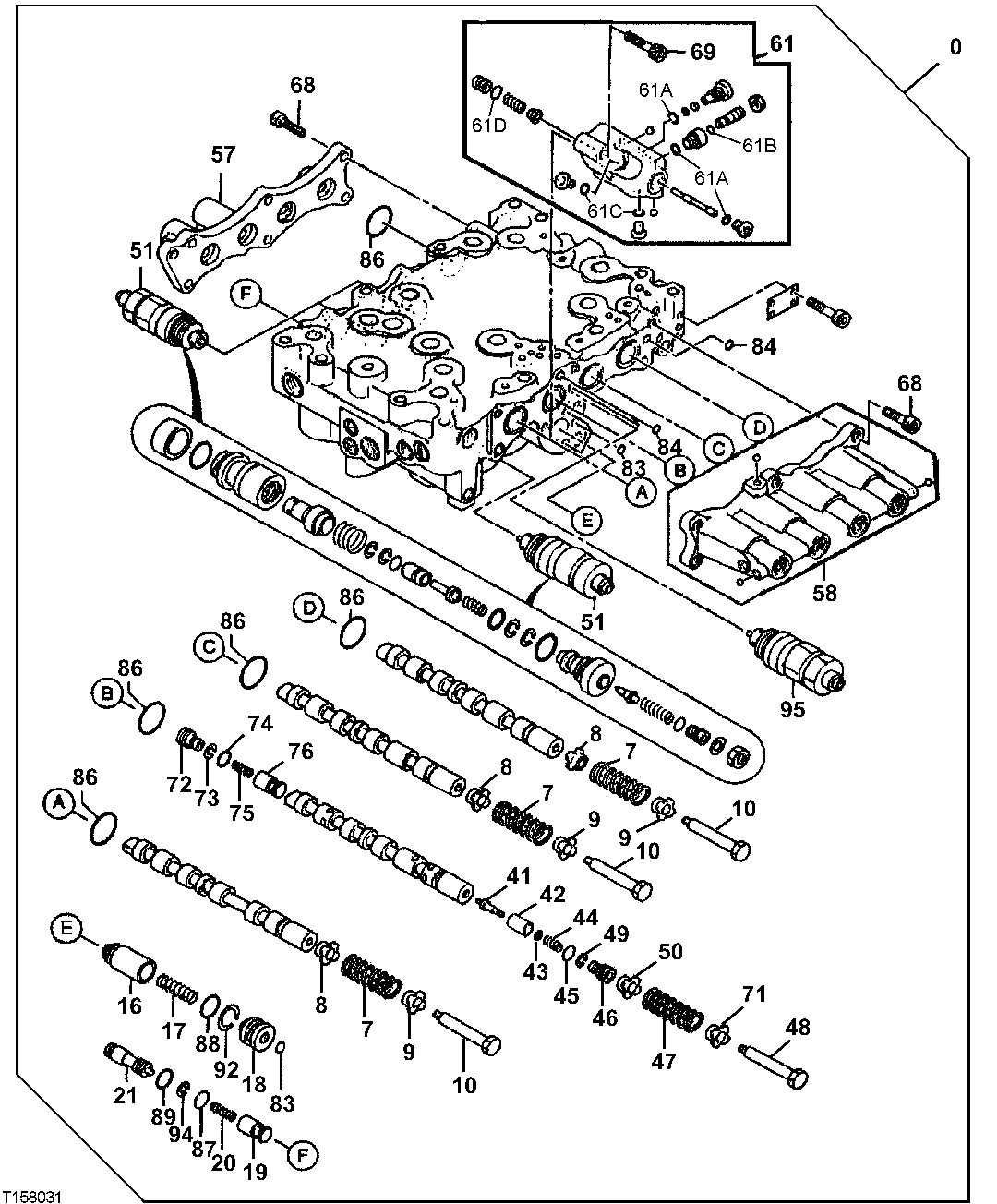

Запчасти John Deere 70LC 244 - Control Valve 3360 HYDRAULIC SYSTEM

0

4367134

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PR EVIOUS AND FOLLOWING PAGES) (SUB FO R AT217980, AT187675 AND 4367134EX)

1шт.

7

0667932

Spring

(SUB FOR AT190540)

1шт.

8

0306003

Plate

(SUB FOR TH109968)

1шт.

9

0306003

Plate

(SUB FOR TH109968)

1шт.

10

0413801

End

(SUB FOR AT154605)

1шт.

16

0667912

Poppet

(SUB FOR AT213676)

1шт.

17

0667913

Spring

(SUB FOR AT213677)

1шт.

18

0667916

Spacer

(SUB FOR AT213678)

1шт.

19

0668006

Poppet

(SUB FOR AT213692)

1шт.

20

0668007

Spring

(SUB FOR AT213693)

1шт.

21

0668008

Spacer

(SUB FOR AT213694)

1шт.

41

0685403

Poppet

(SUB FOR AT192145)

1шт.

42

0685404

Sleeve

(SUB FOR AT192146)

1шт.

43

0685405

Washer

(SUB FOR AT192147)

1шт.

44

0685406

Spring

(SUB FOR AT192148)

1шт.

45

4317636

O-Ring

(SUB FOR AT192143, 0668015)

1шт.

46

0668016

Plug

(SUB FOR AT192144)

1шт.

47

0667932

Spring

(SUB FOR AT190540)

1шт.

48

0413801

End

(SUB FOR AT154605)

1шт.

49

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0.5 51" X 0.049") (SUB FOR TH110325)

1шт.

50

0306003

Plate

(SUB FOR TH109968)

1шт.

51

4372039

Pressure Relief Valve

(SUB FOR AT214285)(BOOM U P, BOOM DOWN, BUCKET LOAD)

3шт.

57

0668009

Cap

(SUB FOR AT213695)

1шт.

58

0668010

Cap

(SUB FOR AT213696)

1шт.

61

0685402

Housing

(SUB FOR AT214283 OR 4372035)

1шт.

61A

M800650

Packing

(SUB FOR 957366)

3шт.

61B

4032996

O-Ring

1шт.

61C

4506408

O-Ring

(SUB FOR TH101490)

2шт.

61D

4317636

O-Ring

(SUB FOR AT202454 OR 971823)

1шт.

68

0353228

Bolt

(SUB FOR AT132356)

14шт.

69

0667714

Screw

(SUB FOR AT213661)

2шт.

71

0306003

Plate

(SUB FOR TH109968)

1шт.

72

0668016

Plug

(SUB FOR AT192144)

1шт.

73

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0.5 51" X 0.049") (SUB FOR TH110325)

1шт.

74

4317636

O-Ring

(SUB FOR AT192143, 0668015)

1шт.

75

0668007

Spring

(SUB FOR AT213693)

1шт.

76

0668006

Poppet

(SUB FOR AT213692)

1шт.

83

4506406

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") (SUB FOR TH104587)

4шт.

84

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

3шт.

86

CH14701

O-Ring

39.400 X 3.100 mm (1.551" X 0.122")

8шт.

87

CH10571

Packing

1шт.

88

953610

O-Ring

21.700 X 3.500 mm (0.854" X 0.138") (SUB FOR AT154871)

1шт.

89

CH10568

Packing

1шт.

92

4028266

Back-Up Ring

22 X 28 X 1.250 mm (0.866" X 1.1 02" X 0.049") (SUB FOR AT132396)

1шт.

94

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0.5 51" X 0.049") (SUB FOR TH110325)

1шт.

95

4358914

Pressure Relief Valve

(SUB FOR AT213982)(BUCKET DUMP)

1шт.
