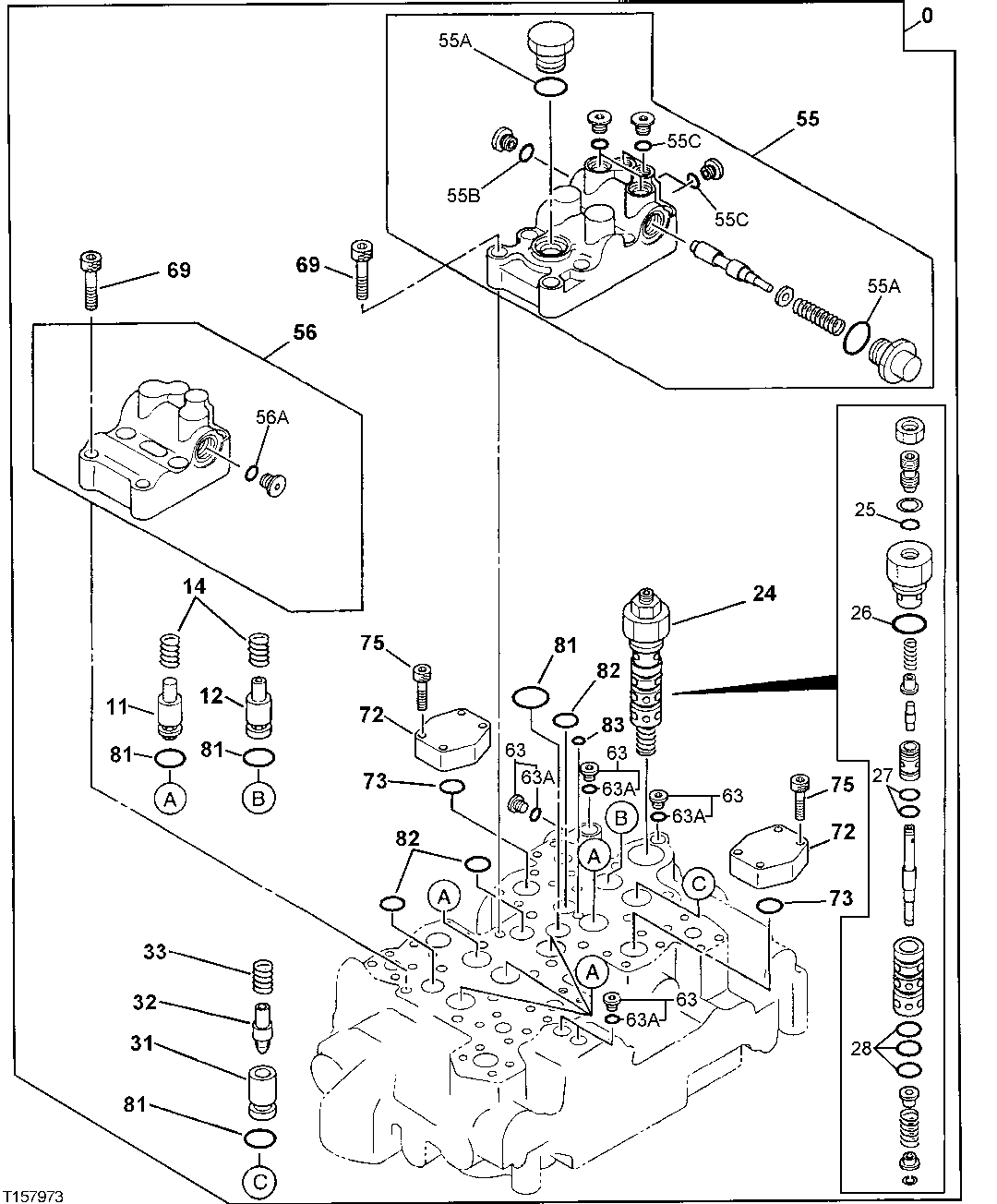

Запчасти John Deere 70LC 241 - Control Valve 3360 HYDRAULIC SYSTEM

0

4367134

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE - ADDITI ONAL COMPONENTS LISTED ON FOLLOWING PAGES) (SUB FOR AT217980, AT187675 AND 4367134EX )

1шт.

11

0685101

Poppet

(SUB FOR AT217920)

5шт.

12

0667717

Poppet

(SUB FOR AT213662)

1шт.

14

0667718

Spring

(SUB FOR AT213663)

6шт.

24

4372034

Pressure Relief Valve

(SUB FOR AT214282)(REAR PUMP CONTROL VALVE)

1шт.

25

R394R

O-Ring

(SUB FOR AT185415 OR 4154237)

1шт.

26

R29936

O-Ring

29.743 X 2.946 mm (1.171" X 0.116") (SUB FOR 4510188)

1шт.

27

T111819

O-Ring

14.800 X 2.400 mm (0.583" X 3/32") (SUB FOR 4506415)

2шт.

28

CH11563

Packing

(SUB FOR Z955655)

3шт.

31

0667720

Sleeve

(SUB FOR AT213665)

1шт.

32

0667707

Poppet

(SUB FOR AT213658)

1шт.

33

0667708

Spring

(SUB FOR AT213659)

1шт.

55

0672803

Flow Control Hyd. Valve

(SUB FOR AT217919, 0672801 OR AT2 13711)(TRAVEL FLOW CONTROL VALVE)

1шт.

55A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

2шт.

55B

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

55C

4506408

O-Ring

(SUB FOR TH101490)

4шт.

56

0685104

Housing

(SUB FOR AT217921)

1шт.

56A

M800650

Packing

(SUB FOR 957366)

2шт.

63

0667713

Fitting Plug

(SUB FOR AT213660)

5шт.

63A

4506408

O-Ring

(SUB FOR TH101490)

1шт.

69

0667714

Screw

(SUB FOR AT213661)

14шт.

72

0667726

Cap

(SUB FOR AT213668)

2шт.

73

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

2шт.

75

0413619

Bolt

(SUB FOR AT154591)

8шт.

81

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

8шт.

82

CH12329

Packing

3шт.

83

4506406

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") (SUB FOR TH104587)

1шт.
