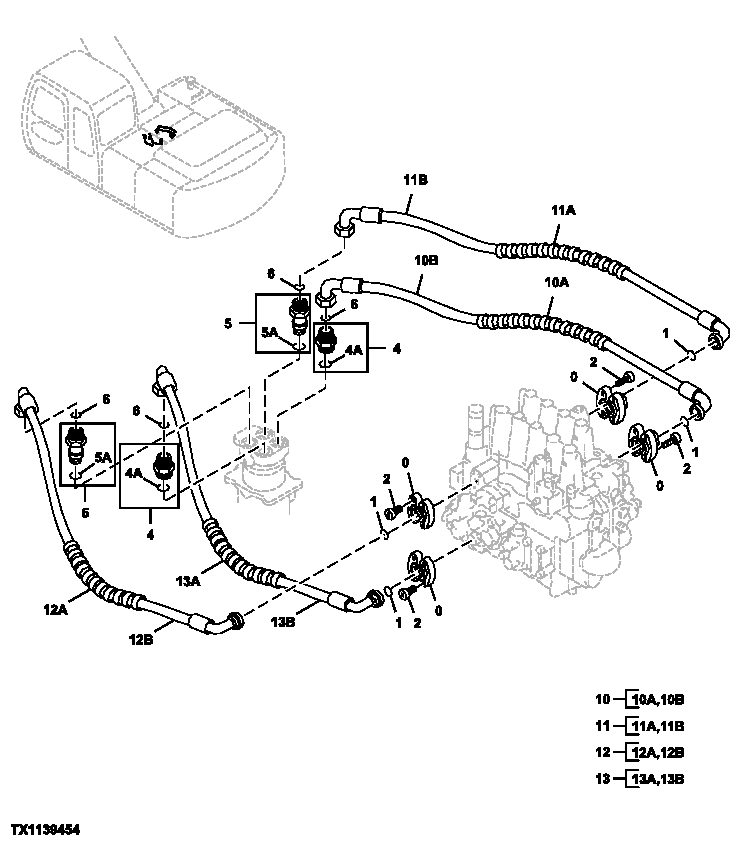

Запчасти John Deere 70LC 236 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

R29424

Flange Fitting

SUB FOR 986910

8шт.

1

T59014

O-Ring

SUB FOR 971489

4шт.

2

19M7576

Screw

M10 X 30 SUB FOR J781030

16шт.

4

4189601

Adapter Fitting

1шт.

4A

AT318035

O-Ring

SUB FOR 4506424

1шт.

5

4198411

Adapter Fitting

2шт.

5A

AT318035

O-Ring

SUB FOR 4506424

1шт.

6

T76938

O-Ring

SUB FOR 4187328

4шт.

10

9149657

Hose

ASSY, NLA

1шт.

10A

4327294

Hose Guard

NLA, MF XHG-075, CTL

2шт.

10B

4366123

Hydraulic Hose

1шт.

11

9149658

Hose

ASSY, NLA

1шт.

11A

4327294

Hose Guard

NLA, MF XHG-075, CTL

2шт.

11B

4366124

Hydraulic Hose

1шт.

12

9149659

Hose

ASSY, NLA

1шт.

12A

4327294

Hose Guard

NLA, MF XHG-075 CTL

2шт.

12B

4366125

Hydraulic Hose

1шт.

13

9149660

Hose

ASSY, NLA

1шт.

13A

4327294

Hose Guard

NLA, MF XHG-075 CTL

2шт.

13B

4366126

Hydraulic Hose

1шт.
