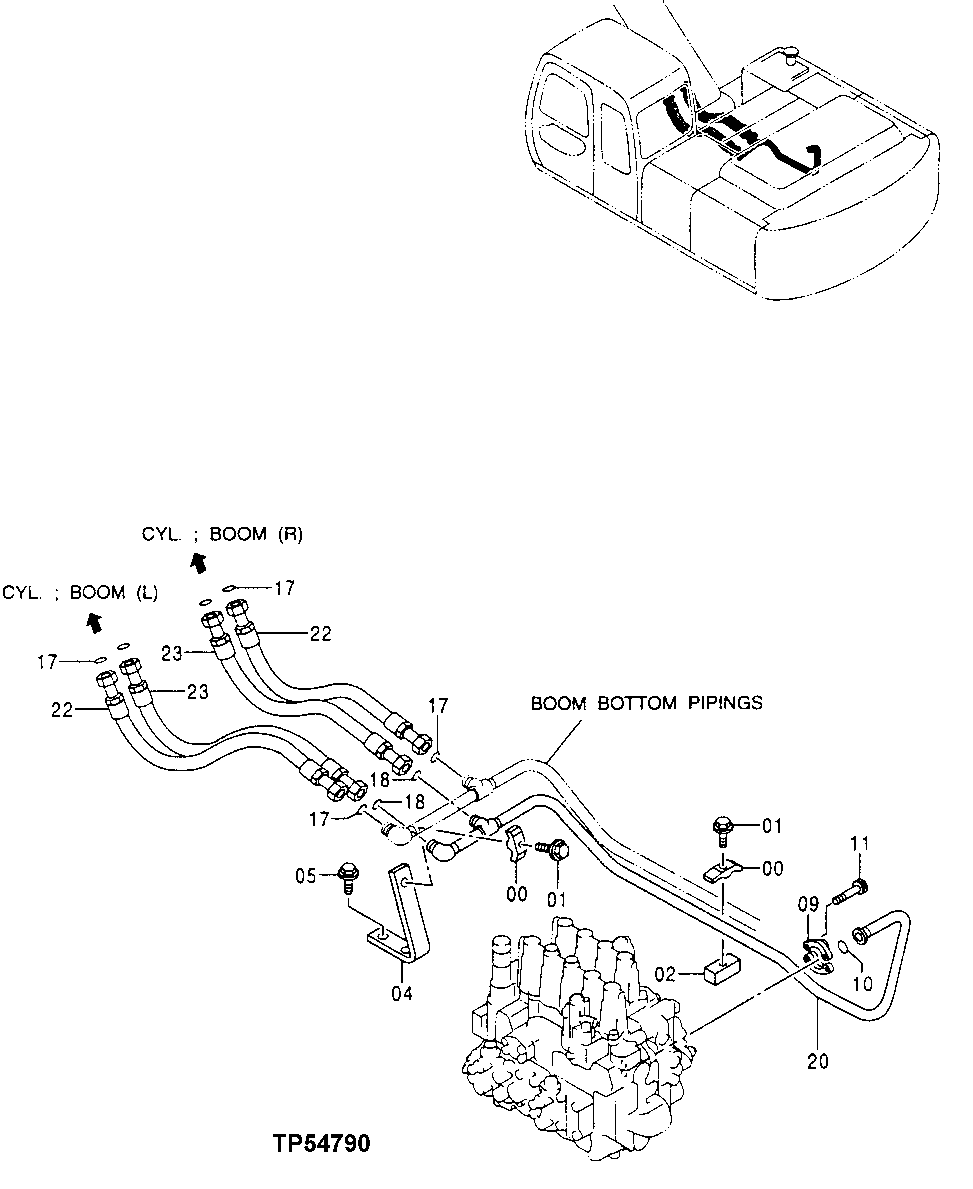

Запчасти John Deere 70LC 233 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

4153488

Clamp

(SUB FOR TH103780)

2шт.

1

12H301

Lock Washer

1/2"

2шт.

19M7753

Cap Screw

M12 X 70

2шт.

2

Strap

( AT155254 NOT AVAILABLE FOR SERVICE)

1шт.

4

9725460

Support

(SUB FOR TH109547)

1шт.

5

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

9

R29424

Flange Fitting

2шт.

10

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

11

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

17

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

6шт.

18

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

20

8060941

Oil Tube

(SUB FOR AT217873)

1шт.

22

AT218223

Hydraulic Hose

2шт.

23

AT218224

Hydraulic Hose

2шт.
