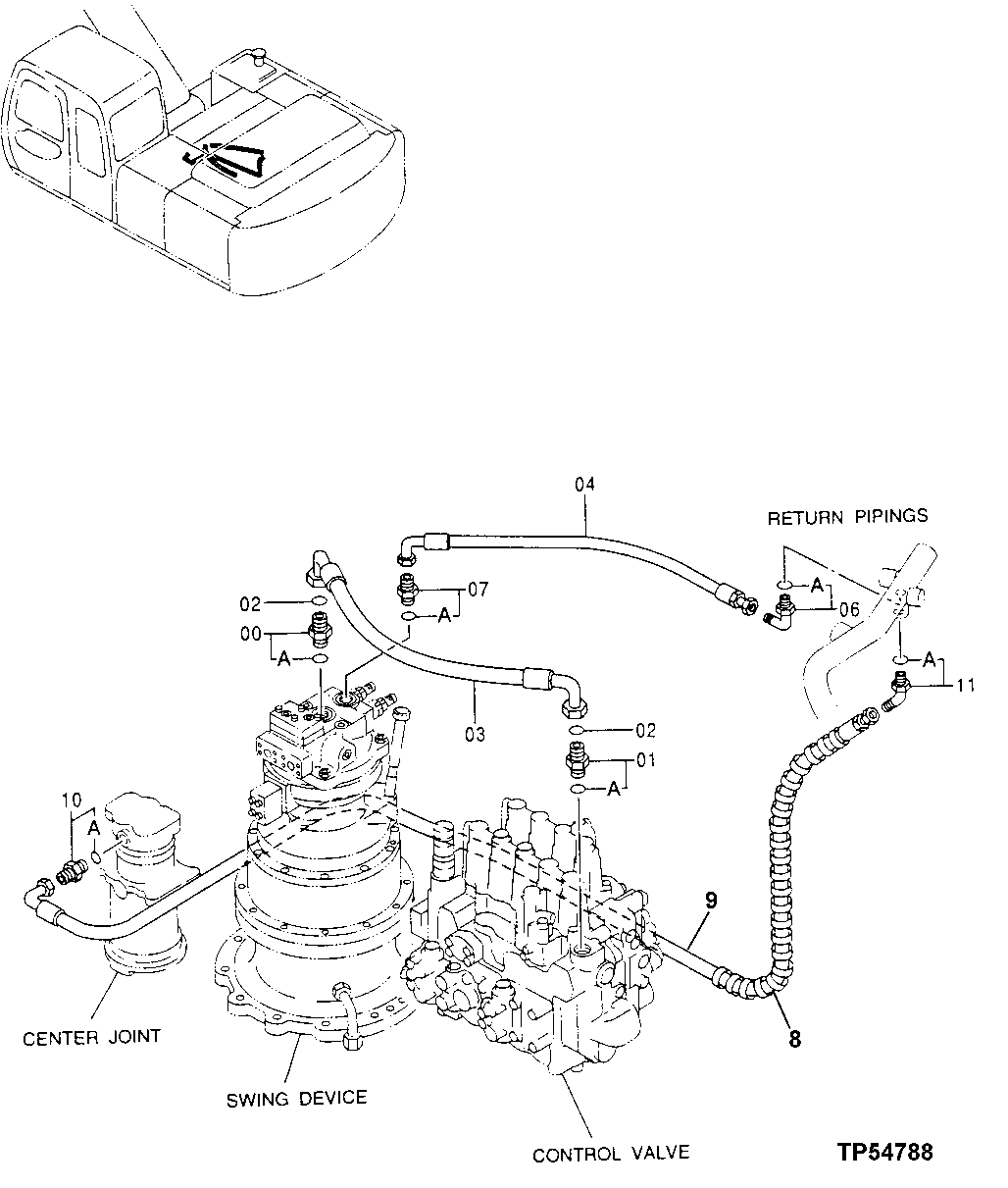

Запчасти John Deere 70LC 232 - DRAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

4189535

Adapter Fitting

SUB FOR AT114853

1шт.

0A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

1

4189601

Adapter Fitting

SUB FOR AT107394

1шт.

1A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

2

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

3

AT217979

Hydraulic Hose

1шт.

4

AT217770

Hydraulic Hose

1шт.

6

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

6A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

4200469

Adapter Fitting

SUB FOR TH108400

1шт.

7A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

8

4327315

Hose Guard

4327293 NO LONGER AVAI LABLE SUB FOR AT213831

2шт.

9

AT213865

Hydraulic Hose

1шт.

10

4221290

Adapter Fitting

SUB FOR AT131902

1шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4236729

Elbow Fitting

SUB FOR AT213803

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
