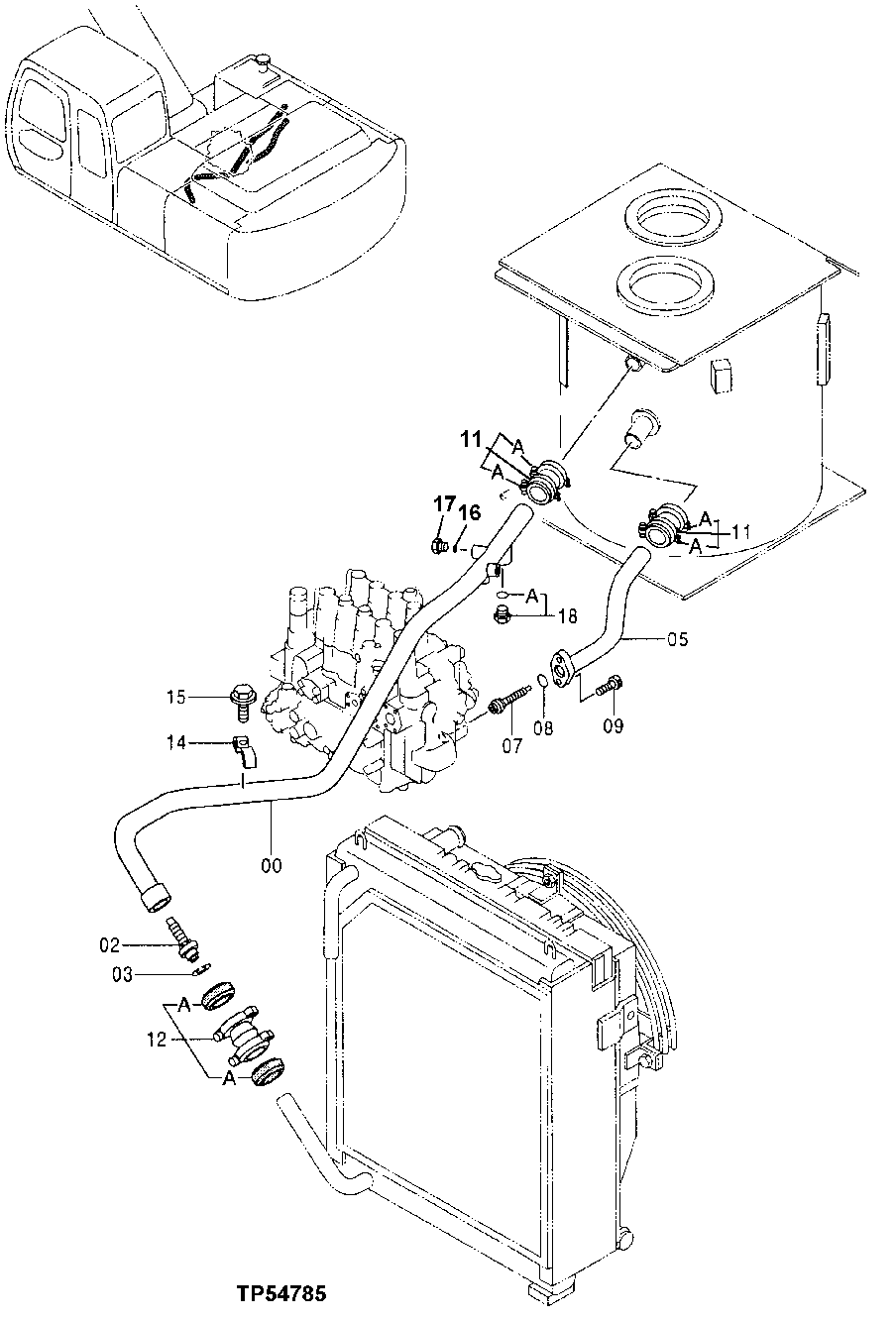

Запчасти John Deere 70LC 230 - RETURN PIPINGS 3360 HYDRAULIC SYSTEM

0

7030316

Oil Tube

SUB FOR AT217854

1шт.

2

4276584

Flow Control Hyd. Valve

SUB FOR AT154331

1шт.

3

40M7225

Snap Ring

1шт.

5

8063036

Oil Tube

SUB FOR AT217875

1шт.

7

4272164

Flow Control Hyd. Valve

SUB FOR AT155303

1шт.

8

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") SUB FOR TH102992

1шт.

9

L159272

Screw

SUB FOR AT213615 OR J781040

2шт.

11

4069801

Coupling

SUB FOR TH101915, 4069 801 4196259 AND 4712341

2шт.

11A

4196259

Seal

NLA, ORDER 4069801; SUB FOR TH106966

2шт.

12

4067834

Coupling

SUB FOR TH102945

1шт.

12A

4196260

Seal

NLA, ORDER 4067834

2шт.

14

4053698

Clamp

SUB FOR TH101936

1шт.

15

12H301

Lock Washer

1/2"

1шт.

19M7753

Cap Screw

M12 X 70

1шт.

16

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

17

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

1шт.

18

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

18A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.
