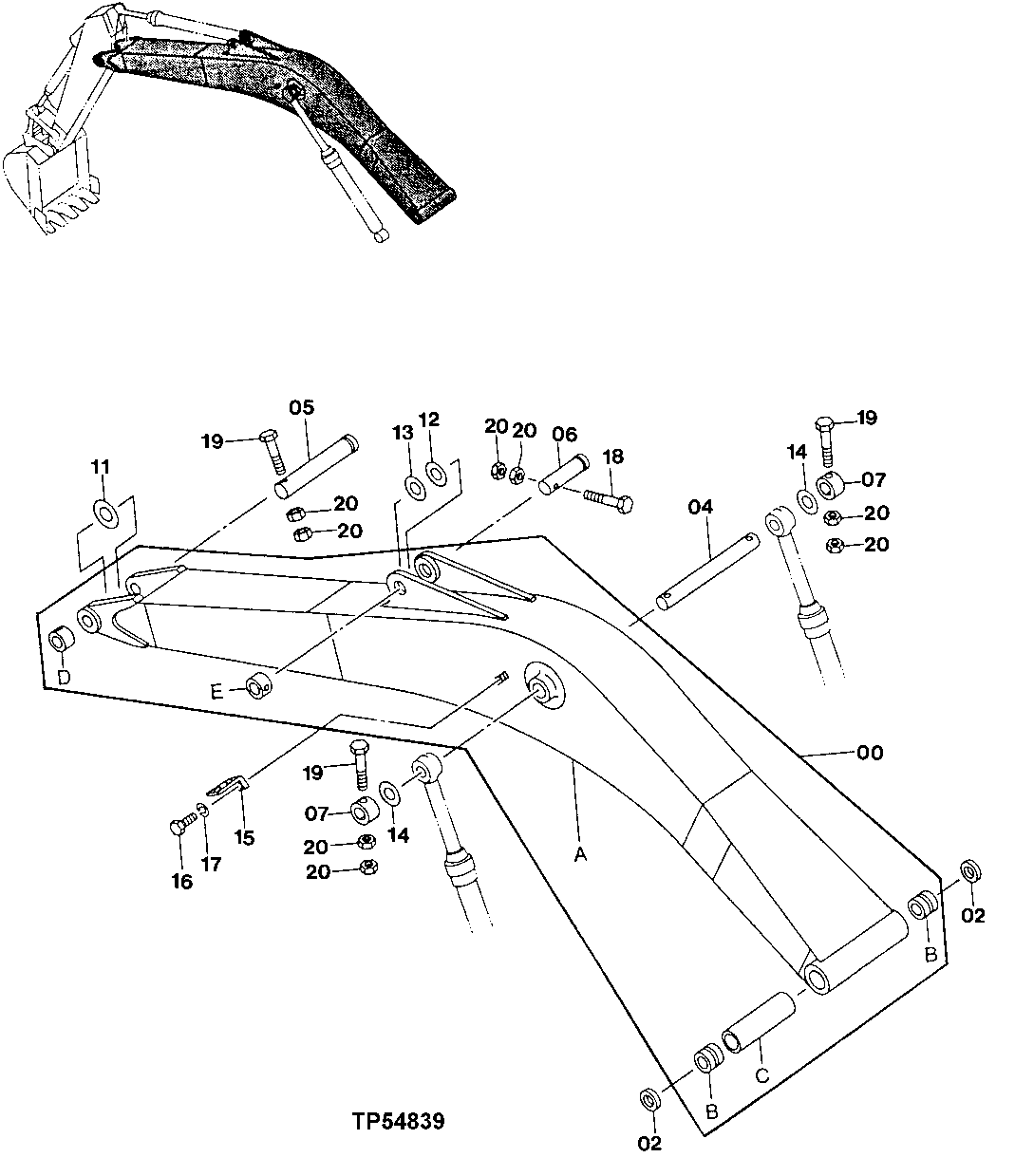

Запчасти John Deere 70LC 229 - Boom 3344 Boom

0

7031418

Excavator Boom

(SUB FOR AT218002)(CONVENIENCE ASSEMBLY)

1шт.

0A

Excavator Boom

1шт.

0B

3075460

Bushing

(SUB FOR AT217946)

2шт.

0C

4253959

Spacer

(SUB FOR AT154738)

1шт.

0D

Plate

( TH103198 NLA)

1шт.

0E

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

1шт.

2

TH102411

Seal

2шт.

4

AT217952

Pin Fastener

1шт.

5

AT217939

Pin Fastener

1шт.

6

TH103204

Pin

1шт.

7

Plate

( TH103198 NLA)

2шт.

11

4144513

Washer

105 X 200 X 1.200 mm (4.134" X 7 .874" X 3/64") (SUB FOR TH102423)

1шт.

12

TH106307

Washer

2шт.

13

TH106308

Washer

2шт.

14

4189839

Washer

101 X 165 X 1.200 mm (3.976" X 6 .496" X 3/64") (SUB FOR TH106305)

2шт.

15

4224631

Angle

(SUB FOR TH111685)

1шт.

16

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

17

12H317

Lock Washer

9/16"

1шт.

18

19M8503

Cap Screw

M20 X 160 (SUB FOR P61796)

1шт.

19

4371649

Bolt

(SUB FOR AT217985)

3шт.

20

14M7277

Nut

M20

8шт.
