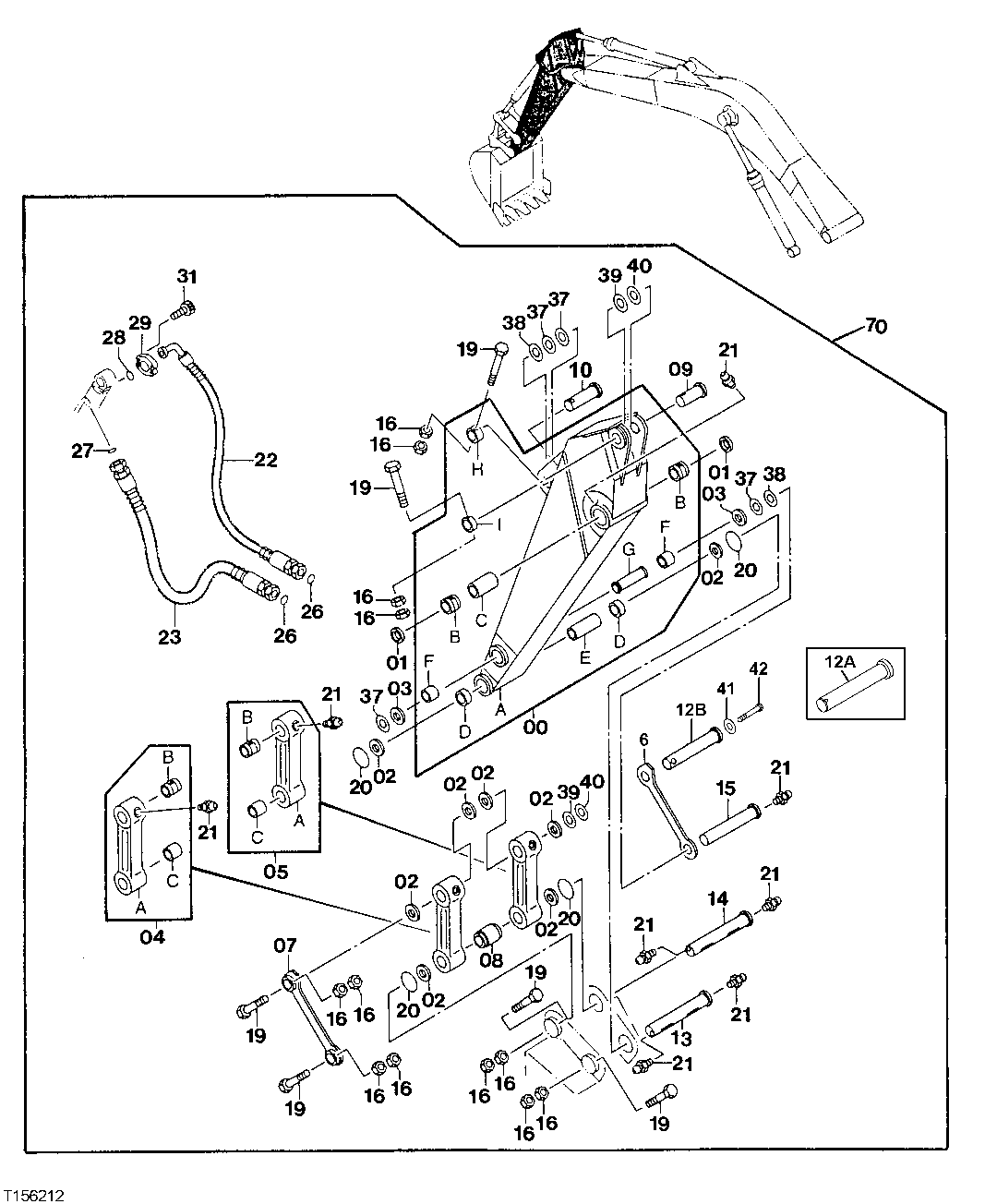

Запчасти John Deere 70LC 227 - STANDARD ARM 3.1 M (10 FT 2 IN) 3340 BACKHOE AND EXCAVATOR FRAMES

0

7031424

Arm

(SUB FOR AT181463)(CONVENIENCE ASSEMBLY)

1шт.

0A

Arm

1шт.

0B

AT159593

Bushing

2шт.

0C

4273778

Spacer

(SUB FOR AT217960)

1шт.

0D

TH109802

Bushing

90 X 105 X 70 mm (3.543" X 4.134" X 2.756")

2шт.

0E

4144379

Spacer

95.200 X 101.600 X 255 mm (3.748" X 4" X 10.039") (SUB FOR TH102430)

1шт.

0F

T139496

Bushing

80 X 95 X 70 mm (3.150" X 3.740" X 2.756")

2шт.

0G

4067989

Spacer

(SUB FOR AT205827)

1шт.

0H

4067719

Pivot

(SUB FOR TH102410)

1шт.

0I

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

1шт.

1

TH102411

Seal

2шт.

2

TH102445

Seal

8шт.

3

TH102446

Seal

2шт.

4

8038660

Link

(SUB FOR AT205901)

1шт.

4A

Link

1шт.

4B

AT205821

Bushing

1шт.

4C

TH109807

Bushing

90 X 105 X 100 mm (3.54 3" X 4.134" X 3-15/16")

1шт.

5

8038661

Link

(SUB FOR AT205902)

1шт.

5A

Link

1шт.

5B

AT205821

Bushing

1шт.

5C

TH109807

Bushing

90 X 105 X 100 mm (3.54 3" X 4.134" X 3-15/16")

1шт.

6

3075524J

Link

(SUB FOR AT217947 OR 3075524)

1шт.

7

8065747

Link

(SUB FOR AT218024)

1шт.

8

4155351

Pin Fastener

(SUB FOR TH102439)

1шт.

9

TH103204

Pin

1шт.

10

TH109797

Pin

80 X 253 mm (3.150" X 9.961")

1шт.

12A

DH300121

Pin

(SUB FOR AT205820 ) (SUB AT19 6434 AND T138902 AND 19M7608)

1шт.

12B

AT196434

Pin Fastener

(SUB FOR AT205820, DH300121)

1шт.

13

AT217953

Pin Fastener

1шт.

14

AT205824

Pin

1шт.

15

AT205819

Pin

1шт.

16

14M7277

Nut

M20

12шт.

19

19M8503

Cap Screw

M20 X 160 (SUB FOR P61796)

6шт.

20

4089028

O-Ring

(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

T379473

V-Ring Seal

V O-Ring

4шт.

21

TH100074

Lubrication Fitting

9шт.

22

AT217965

Hydraulic Hose

1шт.

23

AT217993

Hydraulic Hose

1шт.

26

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

27

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

28

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

29

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

31

19M9163

Screw

M12 X 40 (SUB FOR J781240)

4шт.

37

TH104296

Washer

84 X 145 X 1 mm (3.307" X 5.709" X 0.039")

4шт.

38

TH104297

Washer

84 X 145 X 2.250 mm (3. 307" X 5.709" X 0.089")

2шт.

39

4361177

Washer

(SUB FOR TH106309 ) (SUB FOR AT214005)

2шт.

40

4189837

Washer

91 X 145 X 2.300 mm (3.583" X 5. 709" X 0.091") (SUB FOR TH106310)

2шт.

41

T138902

Bushing

(FOR USE WITH AT196434)

1шт.

42

19M8029

Cap Screw

M16 X 30 (SUB FOR 19M760 8)(FOR USE WITH AT196434)

1шт.

70

AT181455

Arm

WHOLEGOODS (INCLUDES STANDARD ARM, BUCKET CYLINDER, HOSES, AND LINKAGE)

1шт.
