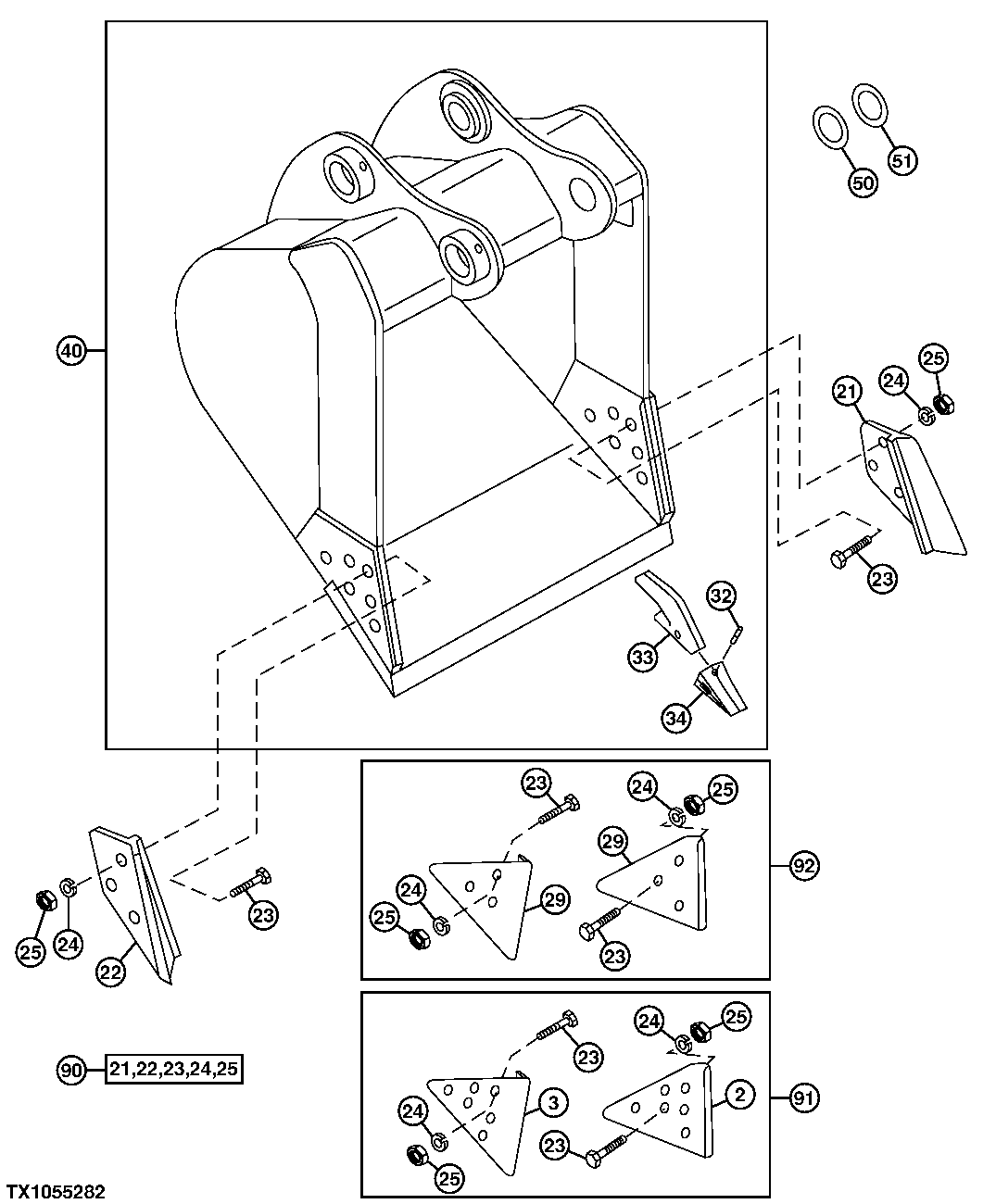

Запчасти John Deere 70LC 193 - General Purpose High Capacity Bucket 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748R3

End Bit

1шт.

22

CE17748L3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

ARшт.

24

12H245

Lock Washer

7/8"

ARшт.

25

14H1077

Nut

7/8"

ARшт.

29

TPDE31329

Shroud

Wear

2шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

AT339115

Excavator Bucket

30 in³ 0.79 yd³, 4 Teeth WH OLE GOODS, SUB FOR AT332684

1шт.

AT339122

Excavator Bucket

36 in³ 1.0 yd³, 5 Teeth WH OLE GOODS, SUB FOR AT332685

1шт.

AT339124

Excavator Bucket

42 in³ 1.22 yd³, 5 Teeth WH OLE GOODS, SUB FOR AT332686

1шт.

AT339126

Excavator Bucket

48 in³ 1.43 yd³, 6 Teeth WH OLE GOODS, SUB FOR AT332687

1шт.

50

T241930

Washer

85 X 140 X 1 mm (3.346" X 5.512" X 0.039")

ARшт.

51

T241937

Shim

ARшт.

90

AT342511

Kit

WHOLE GOODS Side Cutter Kit

1шт.

91

AT342513

Kit

6 in., WHOLE GOODS Edge Protector

1шт.

92

AT342512

Kit

3 in., WHOLE GOODS Edge Protector

1шт.
