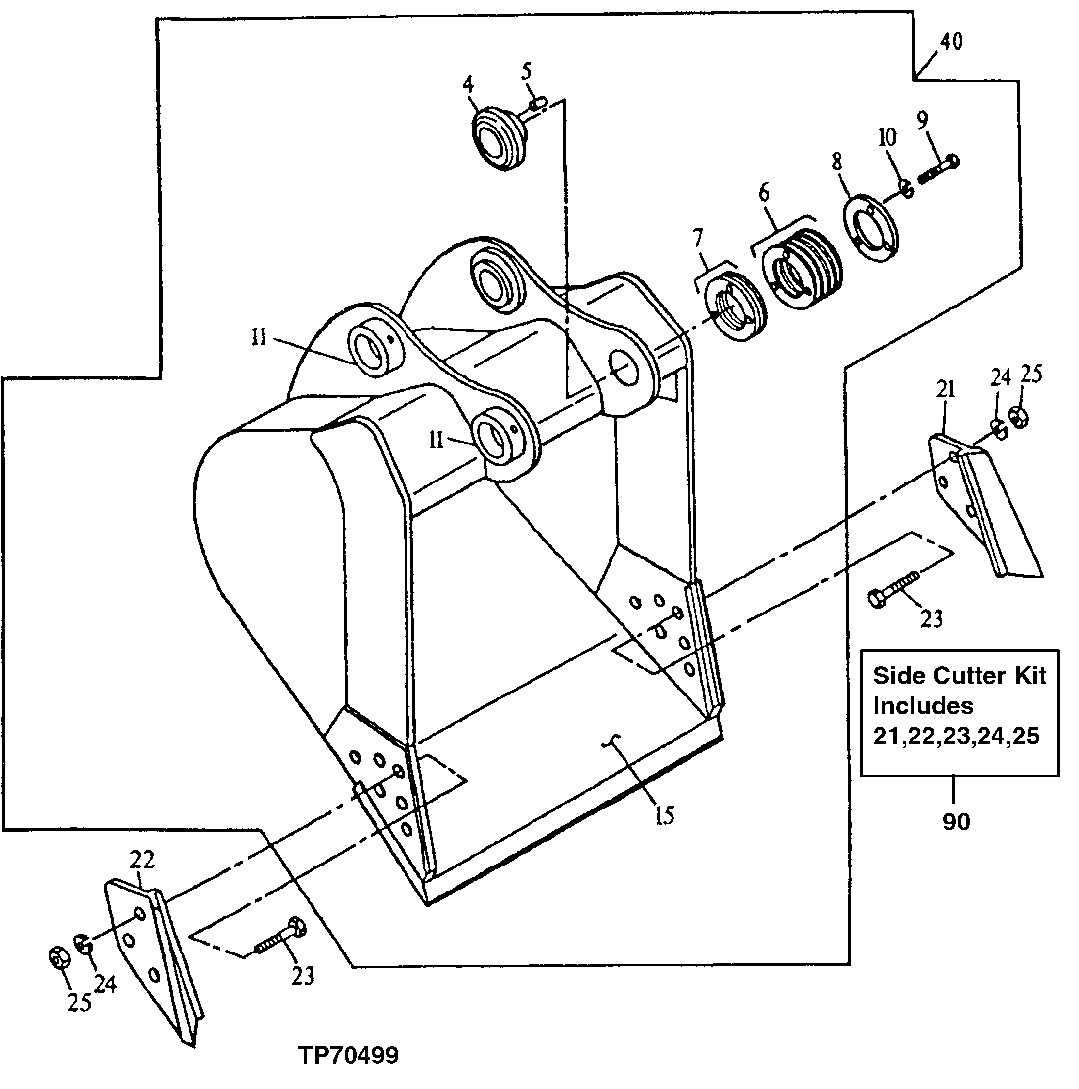

Запчасти John Deere 70LC 189 - Heavy Duty High Capacity Bucket (Also Order Bucket Tooth Assemblies) (For Use With 400 Series Teeth) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

AT131084

Bushing

1шт.

5

R48685

Dowel Pin

1шт.

6

TH102460

Washer

(1 MM)

6шт.

7

TH102461

Shim

(.5 MM)

2шт.

8

TH102463

Plate

(SUB FOR AT185646)

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH102409

Bushing

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

21

Cutting Edge

(K) (SUB AT131085)

1шт.

22

Cutting Edge

(K) (SUB AT131085)

1шт.

23

09H1771

Bolt

(K) 7/8" X 3"

6шт.

24

12H245

Lock Washer

(K) 7/8"

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

40

Excavator Bucket

(SUB AT332713)( AT185645 NLA) (48 INCH - 2.03 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

90

End Bit

( AT131085 NLA) (SIDE CUTTER KIT) INCLUDES ALL (K) PARTS

1шт.
