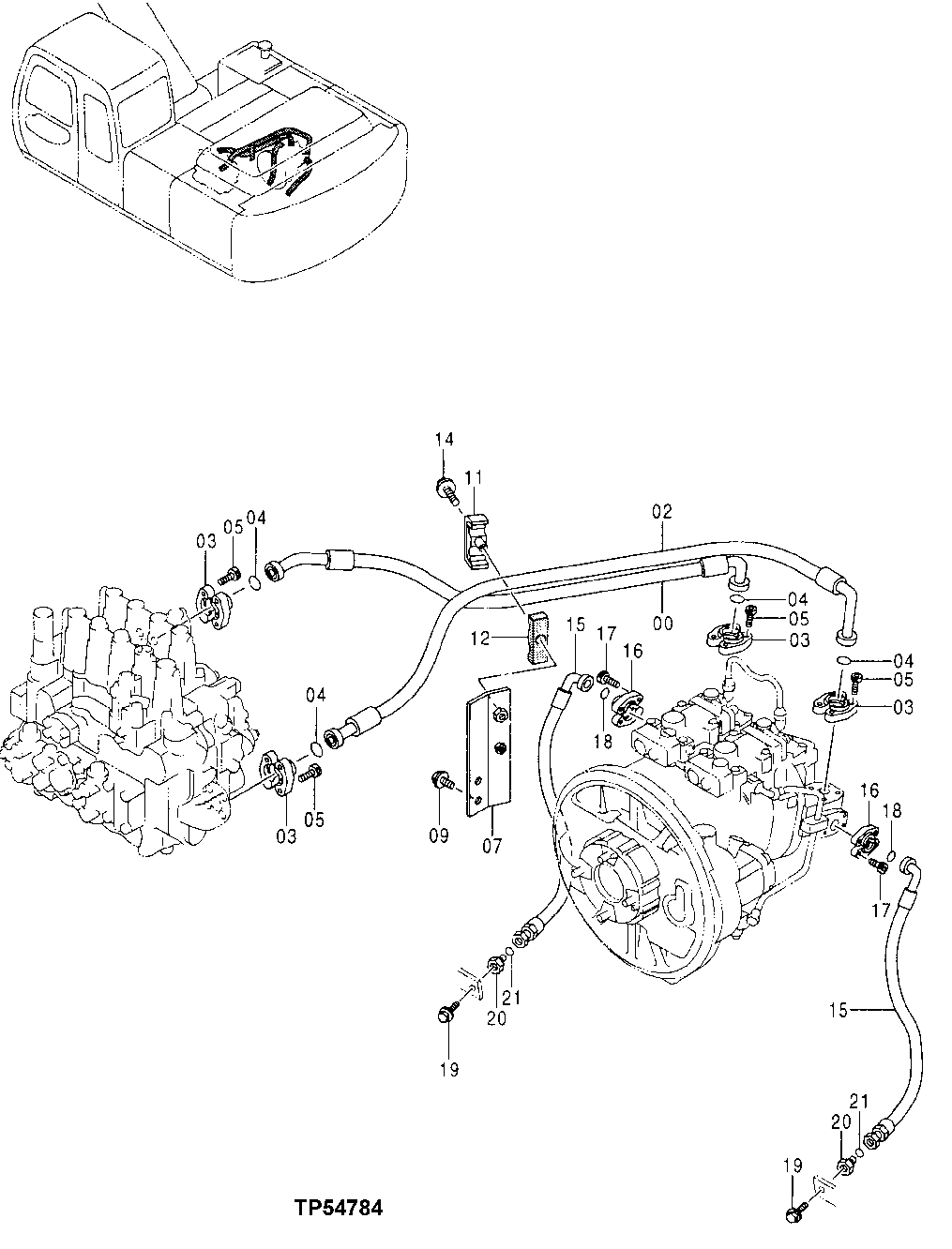

Запчасти John Deere 70LC 181 - DELIVERY PIPINGS 2160 Vehicle Hydraulics

0

AT218225

Hydraulic Hose

1шт.

2

4385694

Hydraulic Hose

(SUB FOR AT218221)

1шт.

3

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

4

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

5

19M9163

Screw

M12 X 40 (SUB FOR J781240)

16шт.

7

8068994

Bracket

(SUB FOR AT218174)

1шт.

9

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

11

8065749

Half Clamp

(SUB FOR AT218025)

1шт.

12

3075326

Half Clamp

(SUB FOR AT217945)

1шт.

14

19M7349

Cap Screw

M12 X 95

1шт.

12H301

Lock Washer

1/2"

1шт.

15

AT214431

Hydraulic Hose

2шт.

16

T107446

Flange Fitting

4шт.

17

19M8337

Screw

M10 X 30

8шт.

18

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

19

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.

20

4204882

Fitting Plug

(SUB FOR TH109541)

2шт.

21

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.
