Запчасти John Deere 70LC 177 - PUMP REGULATOR 2160 Vehicle Hydraulics

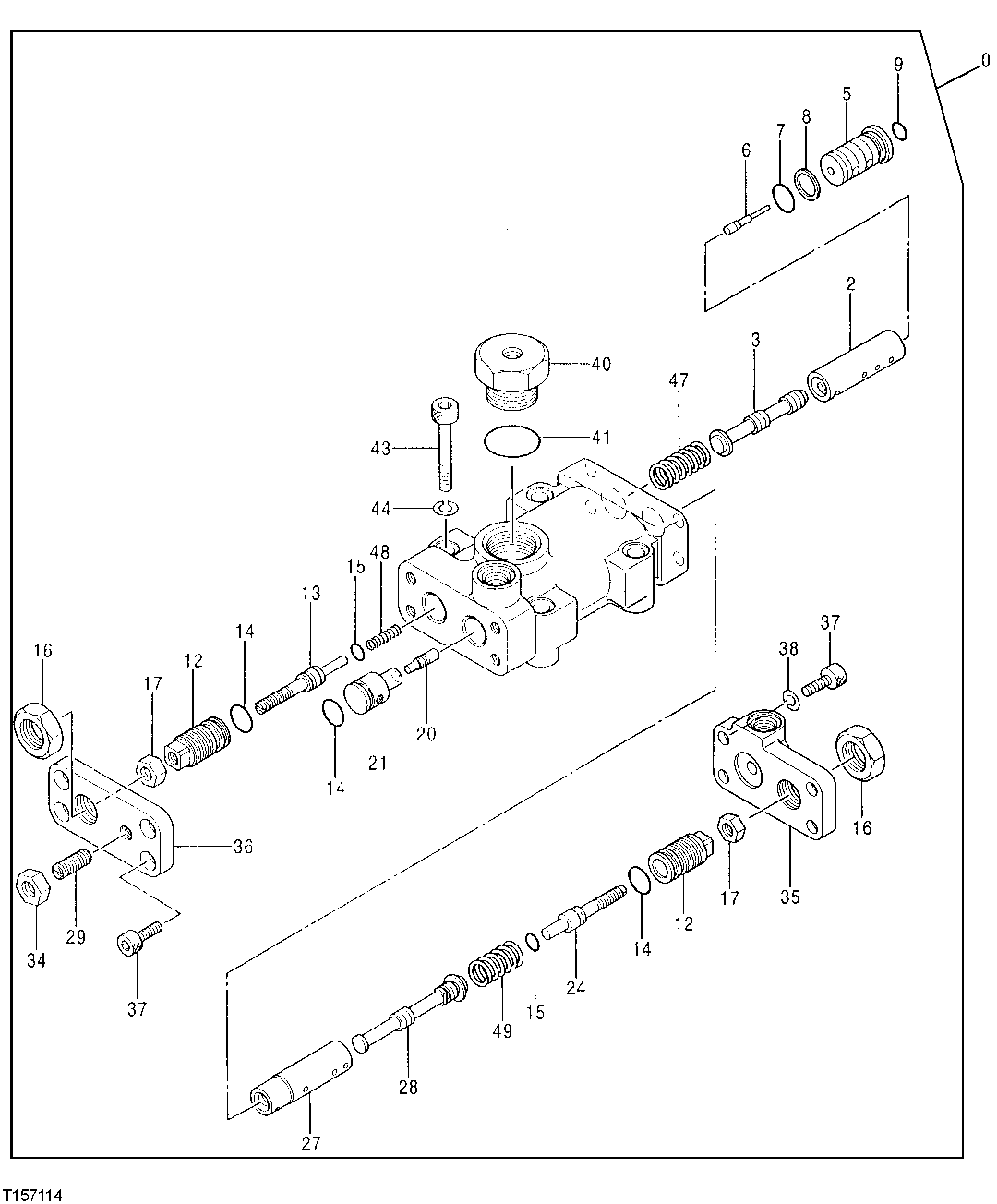

Схема запчастей John Deere 70LC - 177 - PUMP REGULATOR 2160 Vehicle Hydraulics

Артикул

Название

Примечание

Количество

0

9155145

Regulator

(SUB FOR AT218033)

1шт.

2

4179155

Sleeve

(SUB FOR TH109892)

1шт.

3

4179156

Spool

(SUB FOR TH109893)

1шт.

5

4367385

Piston

(SUB FOR AT214037)

1шт.

6

4367500

Piston

(SUB FOR AT214044)

1шт.

7

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.

8

4085607

Back-Up Ring

(SUB FOR TH102562)

1шт.

9

CH11560

Packing

1шт.

12

4179161

Stop

(SUB FOR TH109898)

2шт.

13

4368619

Stop

(SUB FOR AT214045)

1шт.

14

4342843

O-Ring

(SUB FOR AT213892)

3шт.

15

4342841

O-Ring

(SUB FOR AT213891)

2шт.

16

4068898

Nut

M20 (SUB FOR TH102567)

2шт.

17

14M7273

Nut

M8

2шт.

20

4179171

Piston

(SUB FOR TH109911)

1шт.

21

4179170

Cylinder

(SUB FOR TH109910)

1шт.

24

4347107

Stop

(SUB FOR AT213917)

1шт.

27

4346522

Sleeve

(SUB FOR AT213913)

1шт.

28

4346521

Valve Spool

(SUB FOR AT213912)

1шт.

29

22M7098

Set Screw

M10 X 25 (SUB FOR AT201005 OR 4265964)

1шт.

34

14M7274

Nut

M10

1шт.

35

3075775

End Plate

(SUB FOR AT213794)

1шт.

36

4433327

Cover

(SUB FOR TH109913)

1шт.

37

19M8446

Screw

M8 X 20

8шт.

38

4514388

Spring Washer

(SUB FOR TH101835)

4шт.

40

4179174

Fitting Plug

(SUB FOR TH109914)

1шт.

41

4342846

O-Ring

(SUB FOR 4153108, THIS APPLICATION)

1шт.

43

19M8339

Screw

M10 X 55

4шт.

44

12M7135

Lock Washer

10 mm (SUB FOR 12M6791)

4шт.

47

4194176

Compression Spring

(SUB FOR TH111263)

1шт.

48

4350938

Compression Spring

(SUB FOR AT213952)

1шт.

49

4350928

Compression Spring

(SUB FOR AT213951)

1шт.

Выбрано товаров: 32
