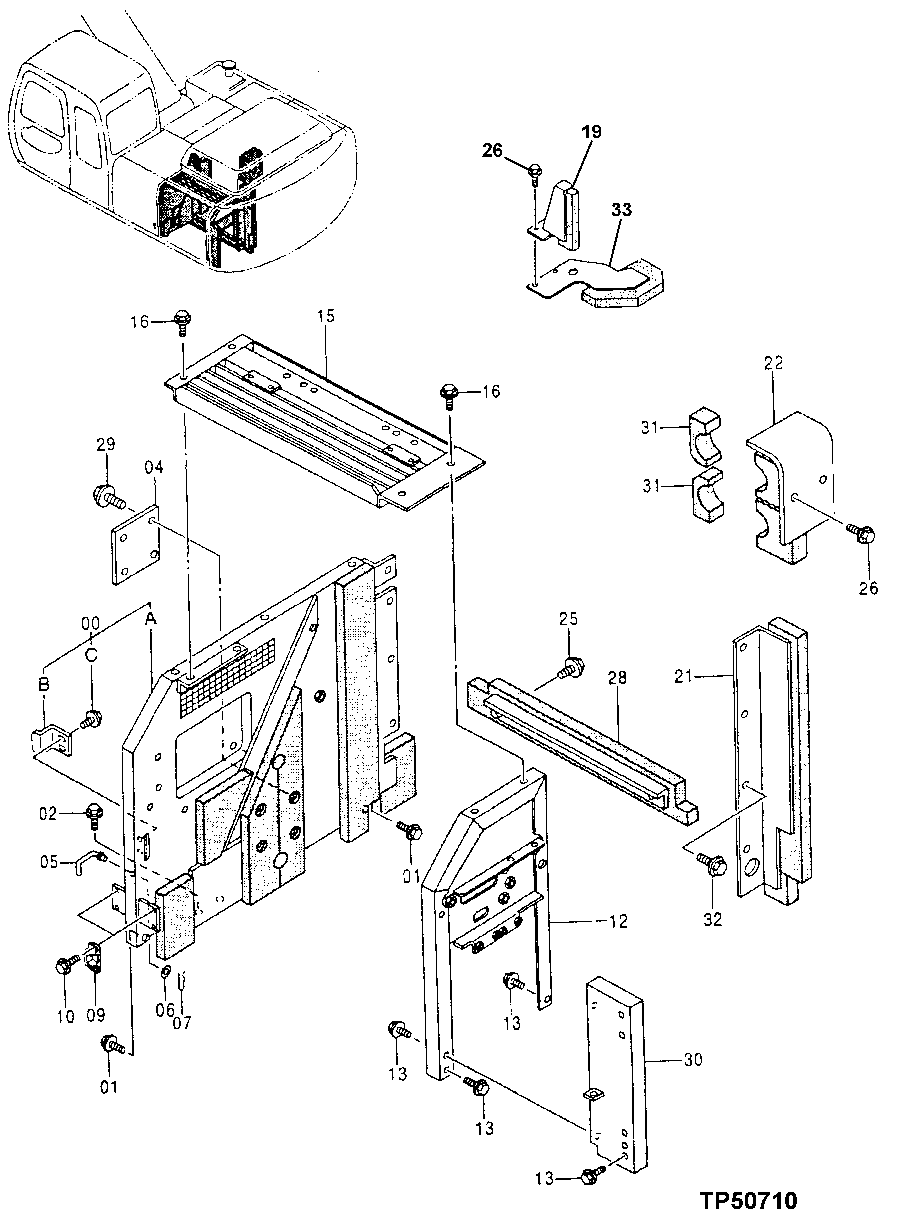

Запчасти John Deere 70LC 163 - Cover 1910 Hood Or Engine Enclosure

0

Cover

NLA

1шт.

0A

6016696

Cover

SUB FOR AT218142

1шт.

0B

4257087

Stop

SUB FOR AT154930

1шт.

0C

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

1

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

2

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

19M7403

Cap Screw

M12 X 35

2шт.

4

4353976

Plate

SUB FOR AT217766

1шт.

5

9738313

Bar

SUB FOR AT155585

1шт.

6

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

7

M800051

Pin

SUB FOR CH10542

1шт.

9

4175253

Bracket

SUB FOR AT318015 AND AT154915

2шт.

10

19M7923

Cap Screw

M6 X 12

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

12

7029493

Support

SUB FOR AT218196

1шт.

13

19M7662

Cap Screw

M10 X 30

5шт.

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

12M7066

Lock Washer

10 mm

5шт.

15

7033683

Cover

SUB FOR AT218197

1шт.

16

19M7662

Cap Screw

M10 X 30

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

19

7030141

Cover

SUB FOR AT218198

1шт.

21

7032519

Cover

SUB FOR AT218199

1шт.

22

8067536

Cover

SUB FOR AT218200

1шт.

25

19M7402

Cap Screw

M10 X 25

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

26

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

28

8070598

Cover

SUB FOR AT218201

1шт.

29

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

30

7030318

Support

SUB FOR AT217856

1шт.

31

4384146

Isolator

SUB FOR AT318025 AND AT218202

2шт.

32

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

33

8071922

Cover

SUB FOR AT182704

1шт.
