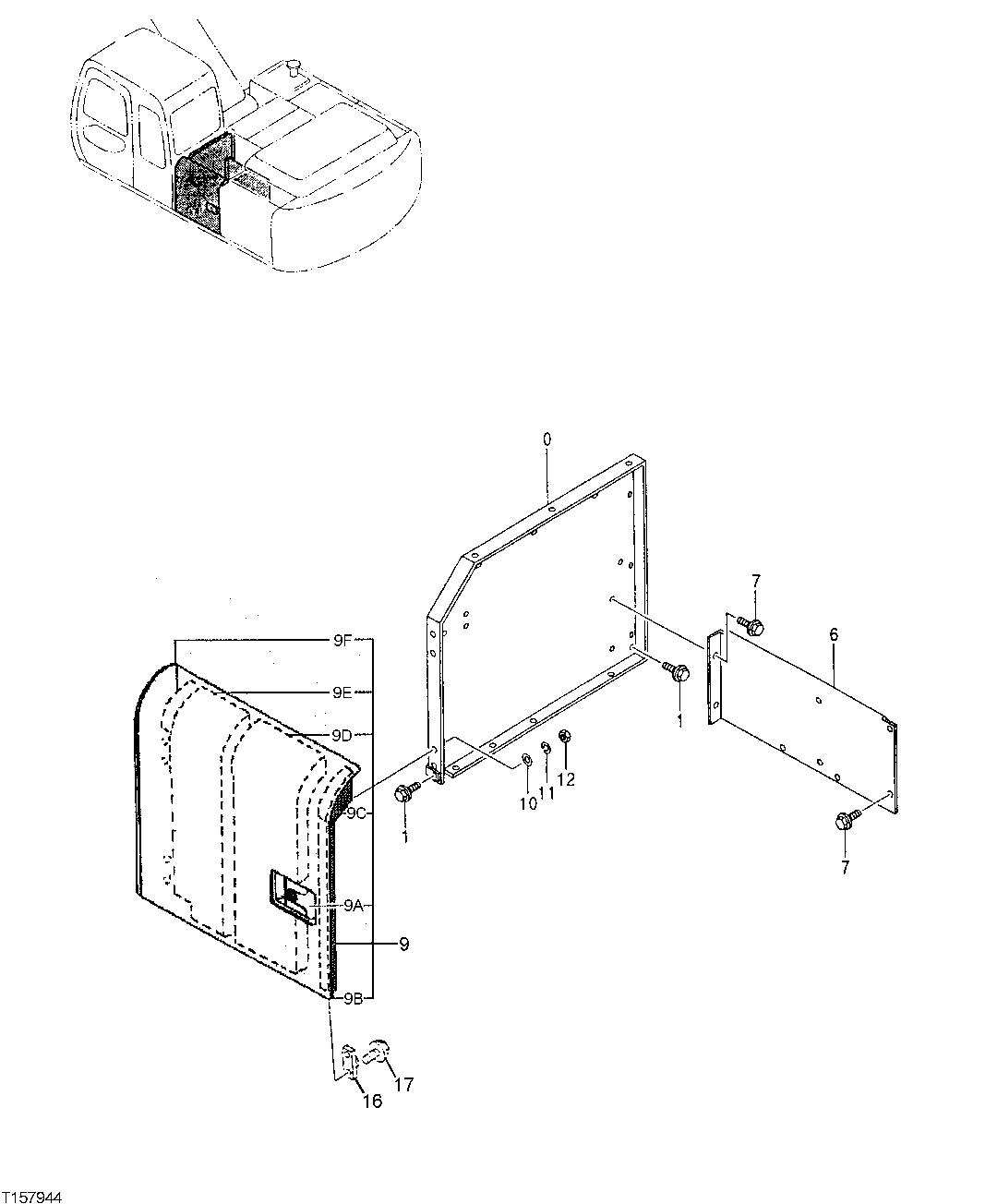

Запчасти John Deere 70LC 160 - Cover 1910 Hood Or Engine Enclosure

0

7029365J

Cover

(SUB FOR AT214337 OR 7029365)

1шт.

1

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

6

3073384

Cover

(SUB FOR AT217740)

1шт.

7

19M7402

Cap Screw

M10 X 25

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

9

5004713

Door

(SUB FOR AT217841)

1шт.

9A

4361763

Lock

(SUB FOR AT214010)

1шт.

AT194969

Key

(SUB FOR AT147803)

1шт.

9B

4380804

Isolator

1шт.

9C

4380801

Isolator

1шт.

9D

4380235

Isolator

1шт.

9E

4380797

Isolator

1шт.

9F

4380803

Isolator

1шт.

10

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

11

12M7066

Lock Washer

10 mm

4шт.

12

14M7274

Nut

M10

4шт.

16

4175254

Stop

(SUB FOR AT154916)

1шт.

17

19M7923

Cap Screw

M6 X 12 (SUB FOR 19M6614)

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.
