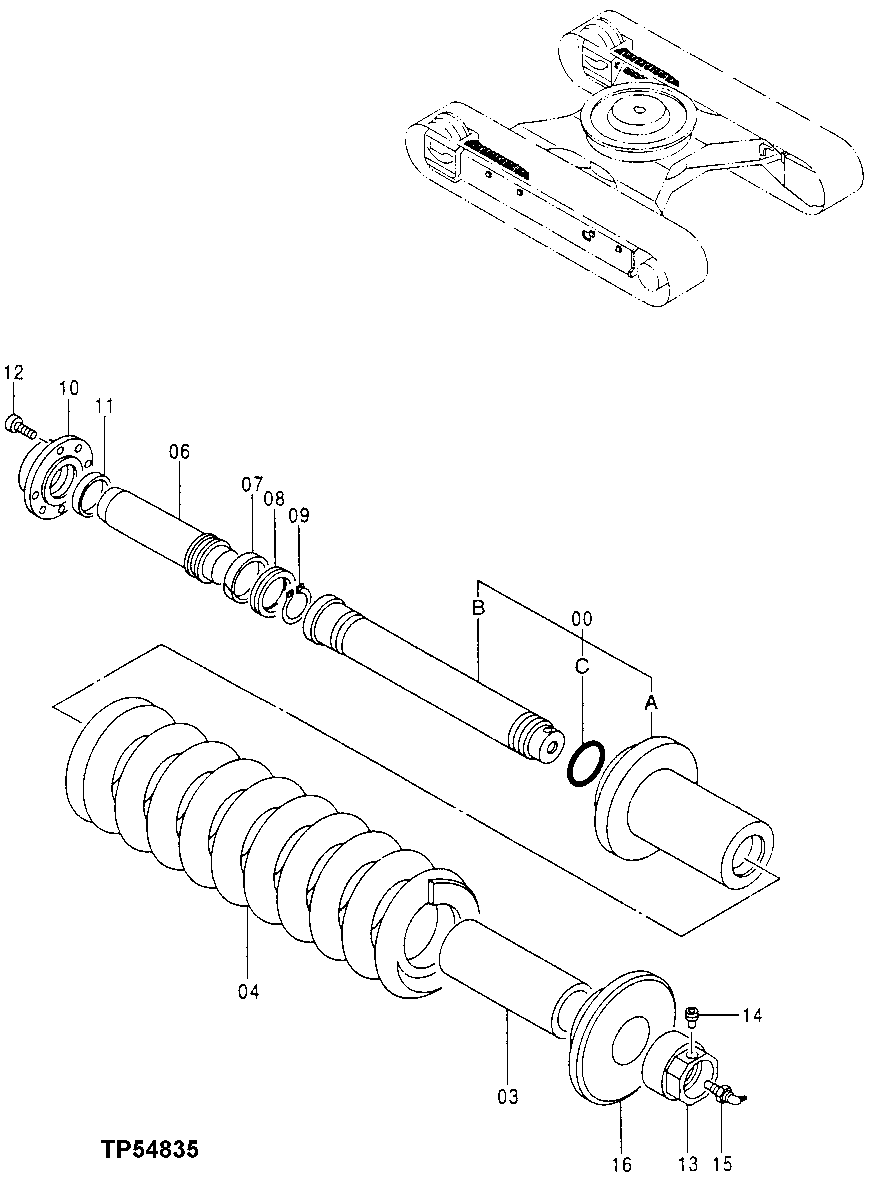

Запчасти John Deere 70LC 7 - Adjuster 0130 Track Systems

0

Cylinder

1шт.

0A

3075540

Barrel

(SUB FOR AT217948)

1шт.

0B

3075541

Hydraulic Cylinder Rod

(SUB FOR AT217949)

1шт.

0C

4140481

O-Ring

(SUB FOR AT217955)

1шт.

3

4367690

Spacer

(SUB FOR AT217982)

1шт.

4

3053244

Spring

(SUB FOR AT200974)

1шт.

6

3036517

Rod

(SUB FOR TH111160)

1шт.

7

TH111224

Wear Ring

1шт.

8

4137866

Packing

(SUB FOR TH103137)

1шт.

9

40M7065

Snap Ring

1шт.

10

3053246

Flange

(SUB FOR AT200975)

1шт.

11

AT201002

Seal

1шт.

12

M341022

Screw

(SUB FOR TH105695)

4шт.

13

3075543

Nut

(SUB FOR AT217950)

1шт.

14

4248106

Fitting Plug

(SUB FOR AT154185)

1шт.

15

4255055

Valve

(SUB FOR AT154223)

1шт.

16

3076799

Plate

(SUB FOR AT217954)

1шт.
