Запчасти John Deere 70LC 155 - AIR CONDITIONER DUCT 1830 HEATING AND AIR CONDITIONING

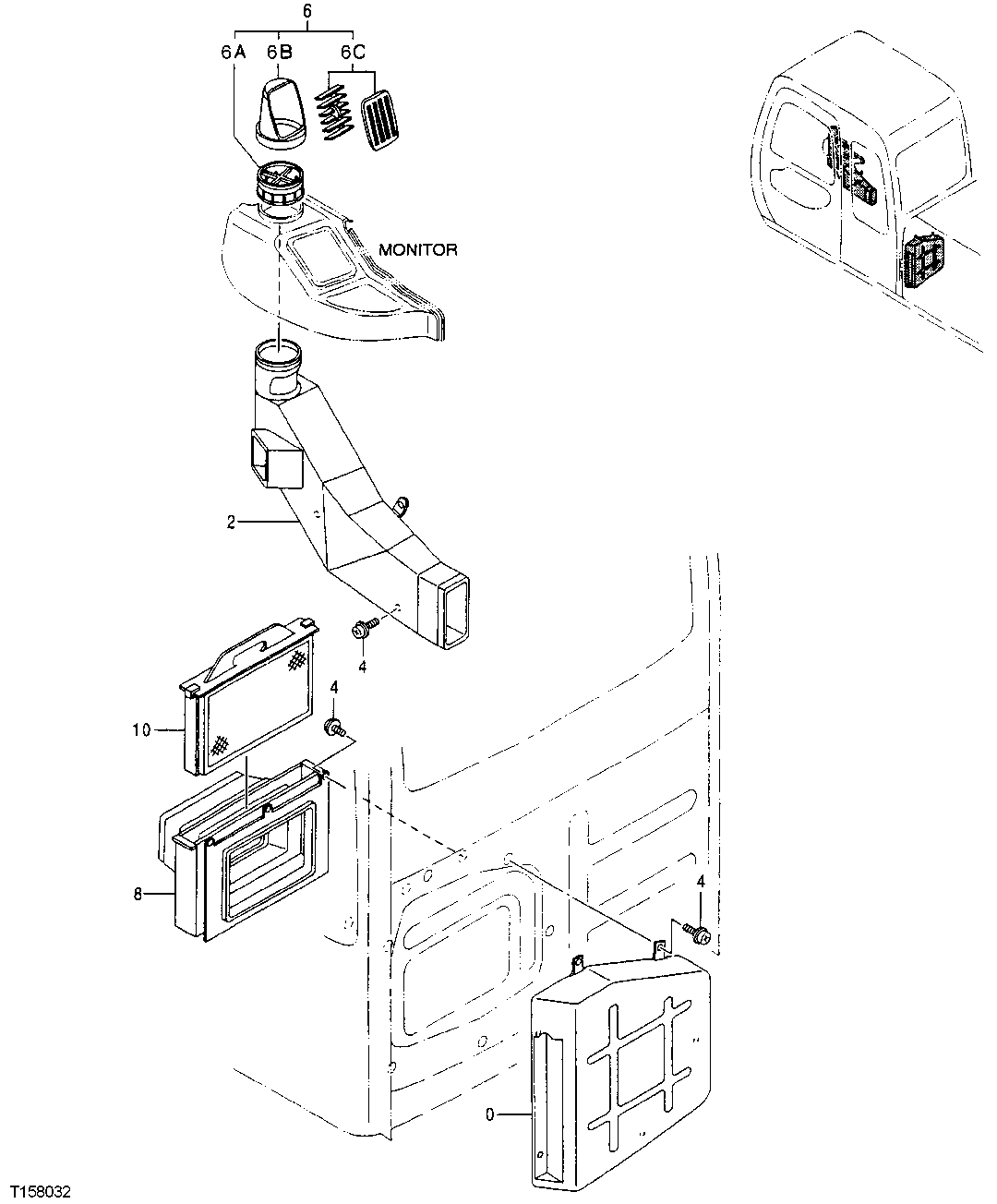

Схема запчастей John Deere 70LC - 155 - AIR CONDITIONER DUCT 1830 HEATING AND AIR CONDITIONING

Артикул

Название

Примечание

Количество

0

4350234

Air Duct

SUB FOR AT213935

1шт.

2

4348713

Air Duct

SUB FOR AT213923

1шт.

4

19M8425

Cap Screw

M6 X 16

12шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

12шт.

12M7006

Lock Washer

6 mm

12шт.

6

4449068

Air Duct

SUB FOR AP34401, SUB FOR 4350244

1шт.

6A

Base

AT214275 OR 4370572 NO LO NGER AVAILABLE FOR SERVICE

1шт.

6B

Housing

AT214273 OR 4370570 NO LO NGER AVAILABLE FOR SERVICE

1шт.

6C

Air Duct

AT214274 OR 4370571 NO LO NGER AVAILABLE FOR SERVICE

1шт.

8

4350238

Air Duct

SUB FOR AT213939

1шт.

10

4S00640R

Air Filter

SUB FOR 4S00640, AT213943 OR 4350249

1шт.

Выбрано товаров: 11
