Запчасти John Deere 70LC 150 - Air Conditioner Components (070378 - ) 1830 HEATING AND AIR CONDITIONING

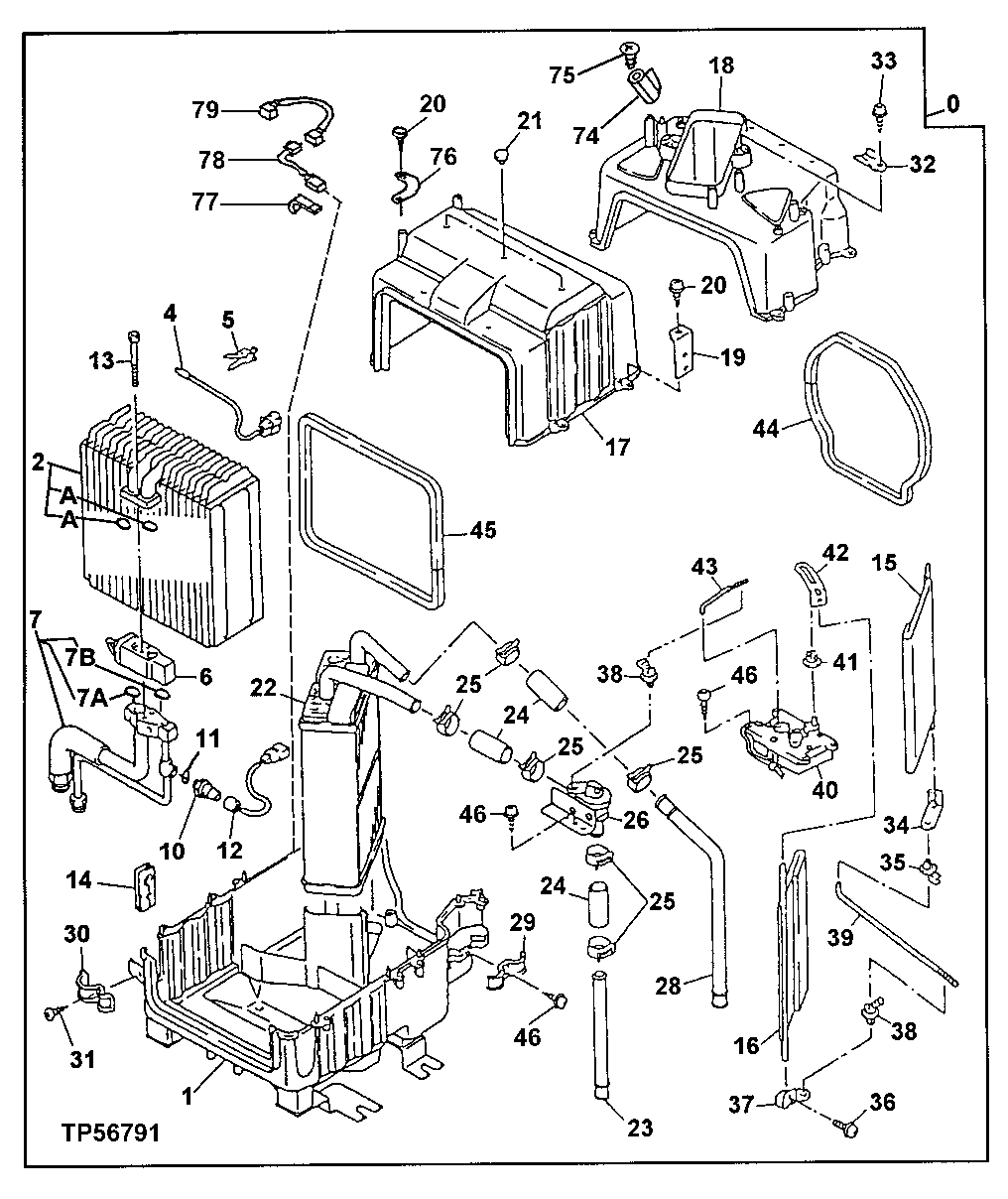

Схема запчастей John Deere 70LC - 150 - Air Conditioner Components (070378 - ) 1830 HEATING AND AIR CONDITIONING

Артикул

Название

Примечание

Количество

0

4405811

Air Conditioner

SUB FOR AT186247; CONTAINS ALL I TEMS ON THIS PAGE - ADDITIONAL CO MPONENTS LISTED ON FOLLOWING PAGE

1шт.

1

Housing

1шт.

2

4382812

Evaporator

SUB FOR AT180994

1шт.

2A

4297380

O-Ring

SUB FOR 4622346, 4674883, A T180995, 4350206 OR 4509180

2шт.

4

4382813

Thermostat

SUB FOR AT180996

1шт.

5

4363957

Clamp

SUB FOR AT180997

1шт.

6

4382814

Flow Control Hyd. Valve

SUB FOR AT180998

1шт.

7

4382815

Tube

SUB FOR AT180999

1шт.

7A

4297380

O-Ring

SUB FOR 4622346, 4674883, A T180995, 4350206 OR 4509180

1шт.

7B

CH11568

Packing

SUB FOR AT181001 4350187 AND 4226445

1шт.

10

Pressure Switch

AT322233 NLA

1шт.

AT336248

Pressure Switch

SUB FOR 4382816 OR 4469059 OR AT181007

1шт.

11

4363718

O-Ring

SUB FOR AT181003

1шт.

12

4382817

Wiring Harness

SUB FOR AT181004

1шт.

13

19M8627

Screw

M6 X 20

2шт.

14

4382818

Grommet

SUB FOR AT181005

1шт.

15

4382819

Door

SUB FOR AT181006

1шт.

16

4382820

Door

SUB FOR AT181007

1шт.

17

4403041

Housing

SUB FOR AT181008

1шт.

18

4382822

Housing

SUB FOR AT181009

1шт.

19

4382823

Angle

SUB FOR AT181010

1шт.

20

4382883

Screw

SUB FOR AT181011

12шт.

21

4363960

Clamp

NO LONGER REQUIRED SUB FOR AT181012

3шт.

22

4382824

Radiator

SUB FOR AT181013

1шт.

23

4382825

Line

SUB FOR AT181014

1шт.

24

Bulk Hose

SUB FOR AT181015; 4382826 NO LONGER AVAILABLE FOR SERVICE; FURNISH TY22 328 BULK MATERIAL CUT TO 60 MM LENGT H

3шт.

25

4382827

Hose Clamp

SUB FOR AT181016

6шт.

26

4382828

Flow Control Hyd. Valve

SUB FOR AT181017

1шт.

27

4382829

Screw

SUB FOR AT181018

2шт.

28

4382830

Line

SUB FOR AT181019

1шт.

29

4363958

Clamp

SUB FOR AT181020

1шт.

30

4382831

Clamp

SUB FOR AT181021

1шт.

31

4382832

Screw

SUB FOR AT181022

1шт.

32

4363950

Bracket

SUB FOR AT181023

1шт.

33

4236448

Screw

SUB FOR AT181024

1шт.

34

4363947

Lever

SUB FOR AT173809

1шт.

35

4363956

Bushing

SUB FOR AT173819

2шт.

36

J460308

Screw With Washer

SUB FOR AT181025

3шт.

37

4363945

Lever

SUB FOR AT173807

1шт.

38

4362310

Clamp

SUB FOR AT173818

2шт.

39

4382833

Rod

SUB FOR AT181026

1шт.

40

4382834

Electric Motor

SUB FOR AT181027

1шт.

41

4363955

Bushing

SUB FOR AT173817

1шт.

42

4382835

Lever

SUB FOR AT181028

1шт.

43

4382836

Rod

SUB FOR AT181029

1шт.

44

4382837

Isolator

SUB FOR AT181030

2шт.

45

4382838

Isolator

SUB FOR AT181031

1шт.

46

4382839

Screw

SUB FOR AT181032

6шт.

74

4363950

Bracket

SUB FOR AT181023

1шт.

75

4236448

Screw

SUB FOR AT181024

1шт.

76

4429817

Bracket

SUB FOR AT187309

1шт.

77

4429818

Clamp

SUB FOR AT187312

1шт.

78

4429819

Thermostat

SUB FOR AT187310

1шт.

79

4429820

Wiring Harness

1шт.

Выбрано товаров: 54
