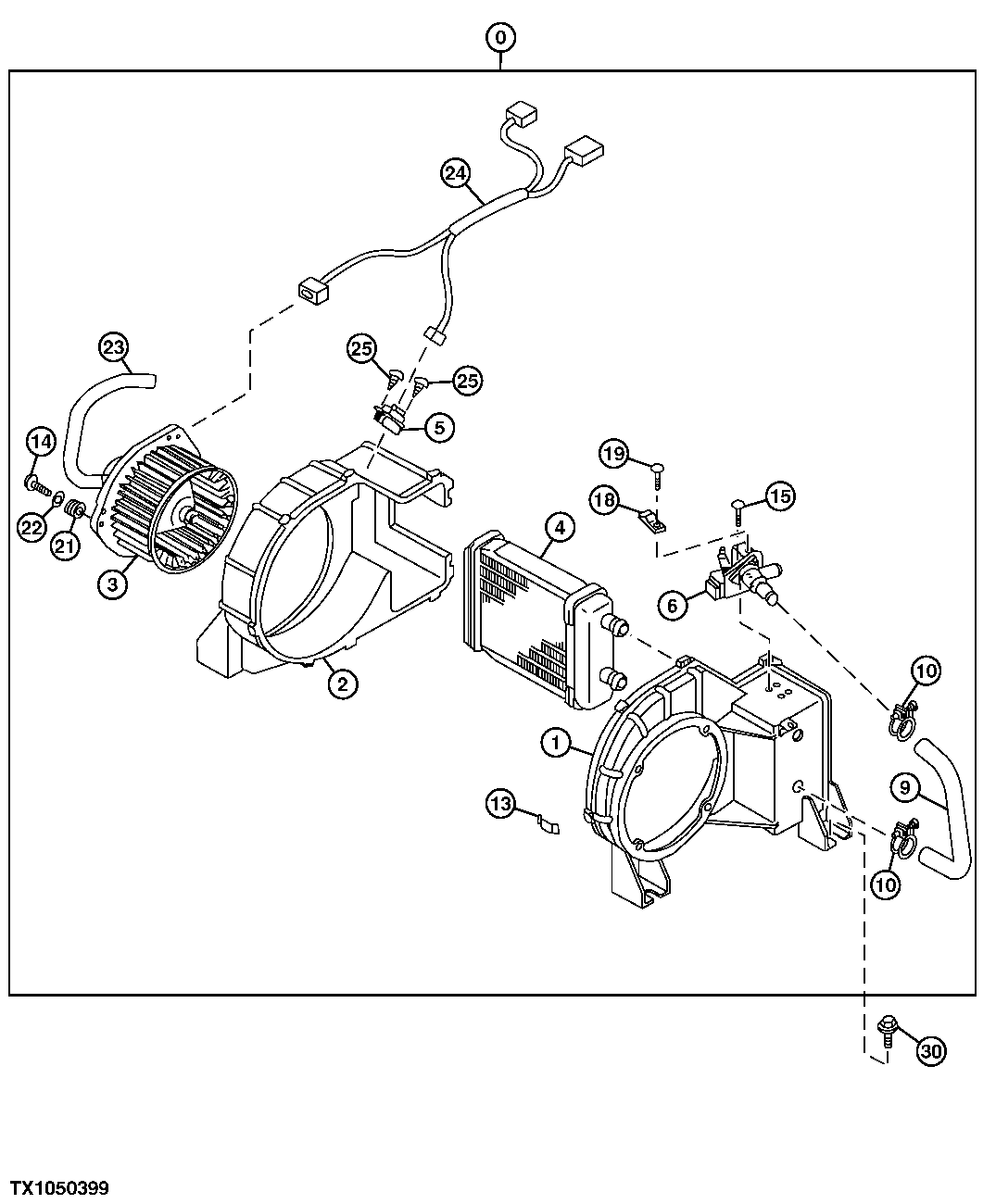

Запчасти John Deere 70LC 139 - Cab Heater Components (For Units With Heater Only, No A/C) 1830 HEATING AND AIR CONDITIONING

0

Heater

4358348 NLA, SUB FOR AT213979

1шт.

1

4376471

Housing

SUB FOR AT218131

1шт.

2

4376472

Housing

SUB FOR AT218132

1шт.

3

4376473

Electric Motor

SUB FOR AT181058

1шт.

4

Core

4351448 NLA SUB FOR AT155638

1шт.

5

4370271

Resistor

SUB FOR AT214217

1шт.

6

4376475

Flow Control Hyd. Valve

SUB FOR AT181072

1шт.

9

4353162

Radiator Hose

1шт.

10

4351466

Clamp

2шт.

13

4351467

Clamp

ARшт.

14

Screw With Washer

J450512 NLA SUB FOR AT181073

3шт.

21M7158

Screw

M5 X 12

3шт.

12M7064

Lock Washer

5 mm

3шт.

15

4352934

Screw

4шт.

18

4351482

Clamp

1шт.

19

Screw With Washer

J460412 NLA

1шт.

21M7250

Screw

M4 X 12

1шт.

12H315

Lock Washer

0.164"

1шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

1шт.

21

4370267

Isolator

SUB FOR AT214213

3шт.

22

4370299

Washer

SUB FOR AT214245

3шт.

23

4376479

Hydraulic Hose

SUB FOR AT181074

1шт.

24

4376480

Wiring Harness

SUB FOR AT181075

1шт.

25

4370310

Screw

SUB FOR AT214256

2шт.

30

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.
