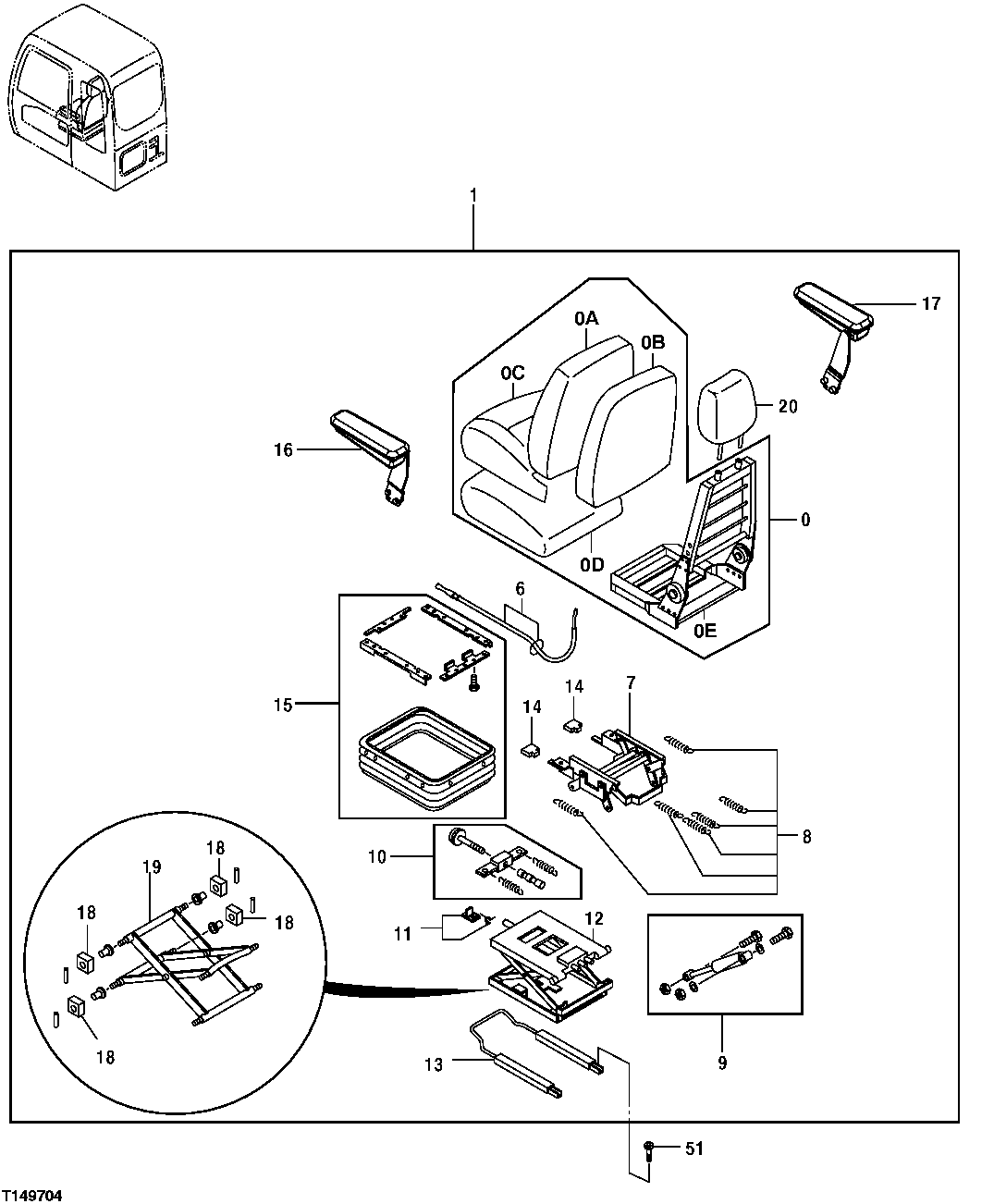

Запчасти John Deere 70LC 133 - SEAT AND SEAT SUSPENSION (REPLACEMENT SEAT) 1821 SEAT AND SEAT BELT

0

4456380

Seat

SEAT UPPER KIT

1шт.

0A

4456381

Cover

1шт.

0B

4392796R

Pad

4392796 OR AT322186 NO LONGER AVAILABLE

1шт.

0C

4453664

Cover

FABRIC

1шт.

0D

4392798R

Pad

SEAT SUB FOR 4392798 OR AT195279

1шт.

0E

Frame

SUB FOR 4392799, AT322187, 4392799R NLA

1шт.

1

4454406

Seat

FABRIC

1шт.

6

4392800R

Cable

SUB FOR 4392800 OR AT216522

1шт.

7

4392801R

Stand

SUB FOR 4392801, RECLINER CABLE KIT

1шт.

8

4370199R

Spring

SUB FOR 4392802 OR AT195287

1шт.

9

4392803R

Torsional Damper

KIT SUB FOR 4392803

1шт.

10

4392804R

Adjuster

SUB FOR 4392804, HEIGHT RISER SPRING

1шт.

11

4392805R

Stop

SUB FOR 4392805 OR AT322189

1шт.

12

4392806R

Seat Suspension

SUB FOR 4392806

1шт.

13

4660734R

Adjuster

SUB FOR 4392807, 4392807R OR 4660734

1шт.

14

AT329374

Handle

KNOB SUB FOR 4392808, AT216532 OR 4392808R

1шт.

15

4392809R

Cover

SUB FOR 4392809, SUSPENSION COVER KIT

1шт.

16

4456377

Armrest

LEFT

1шт.

17

4456376

Armrest

RIGHT

1шт.

18

4392812R

Bushing

KIT SUB FOR 4392812

1шт.

19

4392813R

Link

LEVER/CENTER PIVOT KIT SUB FOR 4392813

1шт.

20

4456375

Head Restraint

1шт.

51

19M7647

Screw

M8 X 16 SUB FOR M340816, AT217709

4шт.
